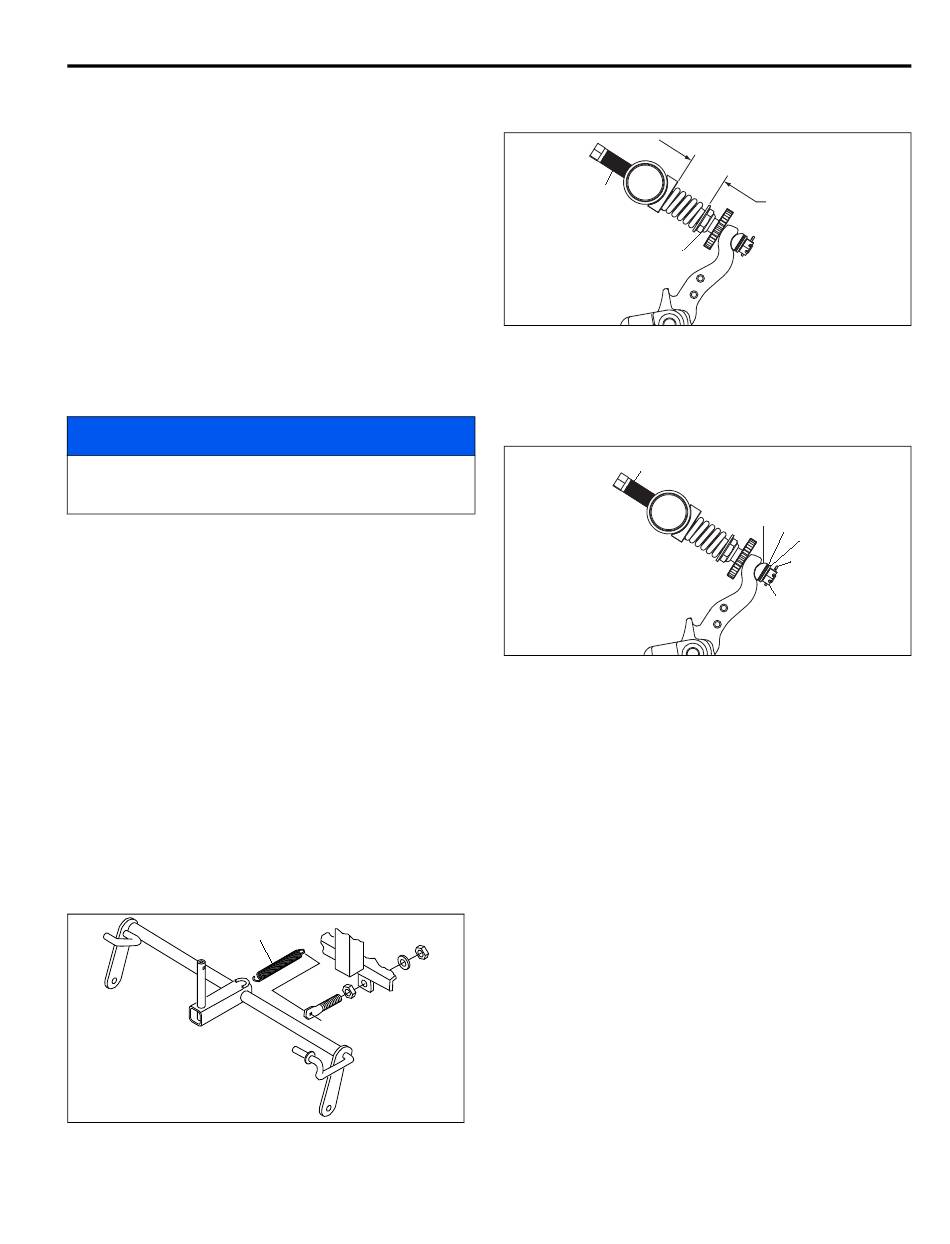

BEDKNIFE ADJUSTER SPRING ______________________________________________

For proper operation, bedknife adjuster spring should be
compressed to a dimension of 1-7/16 - 1-1/2 in. (3.65-3.8
cm).
To adjust spring compression, loosen or tighten nut (R) to
obtain a distance of 1-7/16 - 1-1/2 in. (3.65-3.8 cm).
After adjusting spring, check reel to bedknife adjustment.
9.6

BEDKNIFE ADJUSTER TENSION _____________________________________________

NOTICE
Overtightening slotted nut (S) will make bedknife
adjuster rod (T) difficult to adjust.
Remove cotter pin (U) and fully loosen, then tighten
slotted nut (S) to remove clearance (no end play)
between components. Continue to tighten nut until next
slot in nut aligns with hole in bedknife adjuster rod (T).
Install new cotter pin.
Check torque required to rotate adjuster rod (T).
Maximum torque should be 24 in. lb. (2 ft. lb.) (2.7 Nm).
9.7

ANTISWAY SPRING ________________________________________________________

1. The antisway spring (C) should be tight but not
under stress.
2. Loosen both nuts on the adjusting rod then adjust the
rear nut as necessary.
3. When properly adjusted, tighten nuts against
bracket.
