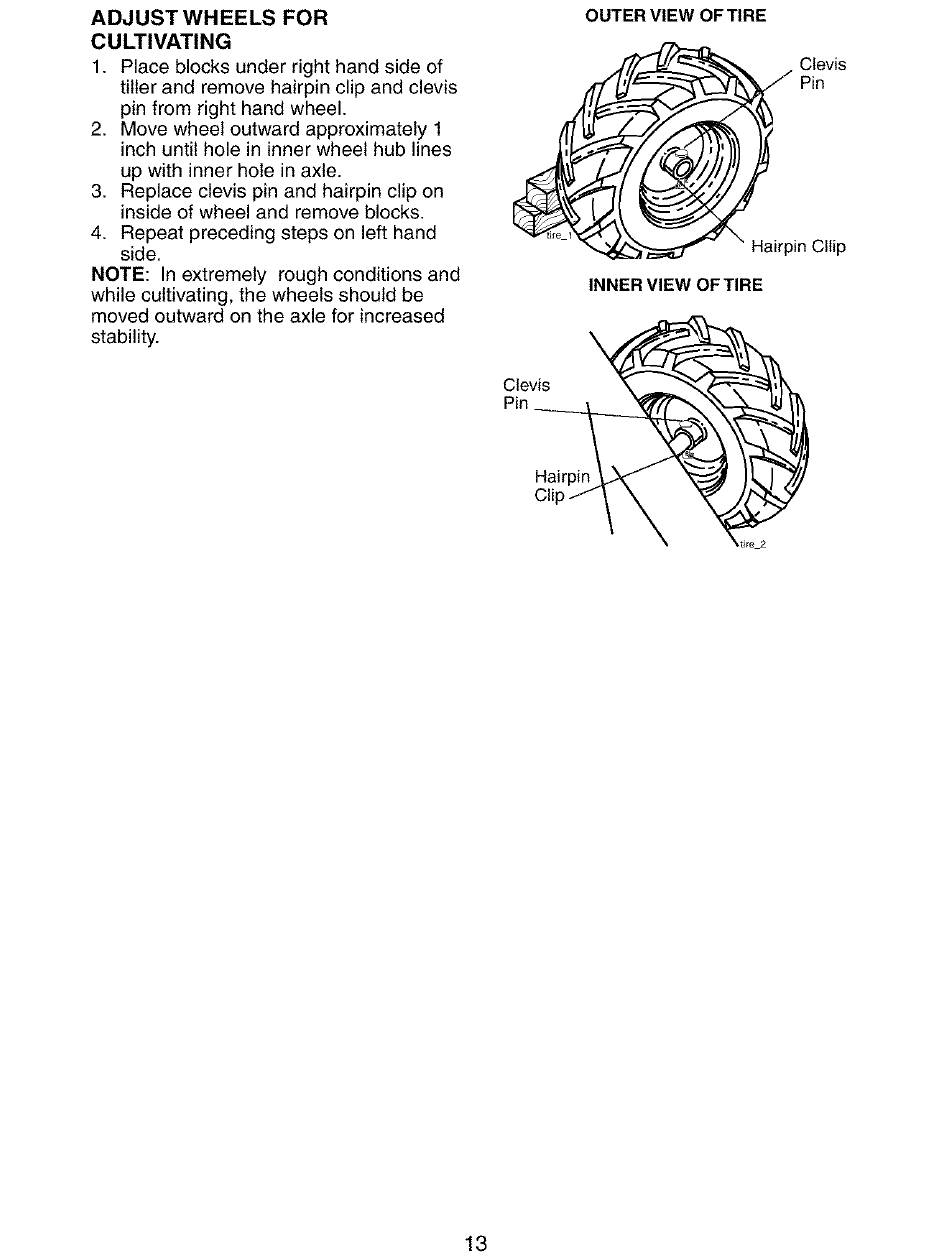

ADJUST WHEELS FOR
CULTIVATING
1. Place blocks under right hand side of
tiller and remove hairpin clip and clevis
pin from right hand wheel.
2. Move wheel outward approximately 1
inch until hole in inner wheel hub lines
up with inner hole in axle.
3. Replace clevis pin and hairpin clip on
inside of wheel and remove blocks.
4. Repeat preceding steps on left hand
side.
NOTE: In extremely rough conditions and
while cultivating, the wheels should be
moved outward on the axle for increased
stability.
OUTER VIEW OF TIRE
_ levis
Pin
in Cltip
INNER VIEW OF TIRE
Clevis
Pin
Hairpin
