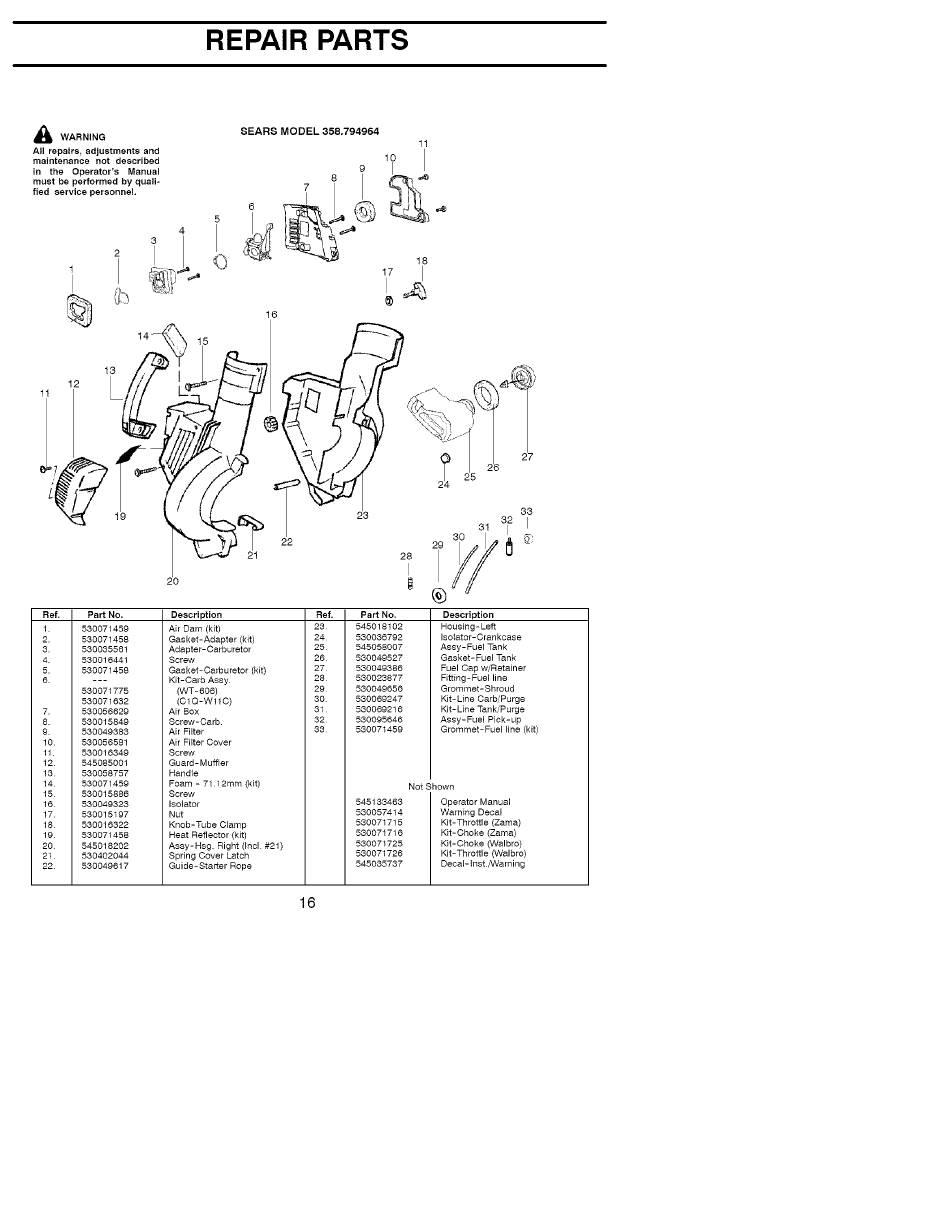

REPAIR PARTS
WARNING
All repairs_ adjustments and
maintenance not described
in the Operator's Manual
must be performed by quali-
fied service personnel.
SEARS MODEL 358.794964
11
5 '<9
2 ._ 18
1 17
14--_ 15
1, 12 L!i/ h_--_
_' 2I 25 32 27
Ref. Part No, Description Ref. Part No, Description
1. 530071459 Air Dam (kit) 23 545018102 Housing- Left
2. 530071458 Gasket-Adapter (kit) 24 530036792 Isolator-Crankcase
3. 530035561 Adapter-Carburetor 25 545058007 Assy- Fuel Tank
4. 530016441 Screw 26 530049527 Gasket- Fuel Tank
5. 530071458 Gasket-Carburetor {kit) 27 530049386 Fuel Cap w/Retainer
6. --- Kit-Oath Assy 28 530023877 Fitting-Fuel line
530071775 (WT-606) 29 530049656 Grommet-Shroud
530071632 (O1 Q-W11 C) 30. 530069247 Kit- Line Carb/Purge
7. 530056629 Air Box 31 530069216 Kit- Line Tank/Purge
8. 530015849 Screw-Oath. 32 530095646 Assy- Fuel Pick-up
9. 530049383 Air Filter 33 530071459 Grommet-Fuel line (kit)
10. 530056581 Air Filter Cover
11. 530016349 Screw
12. 545085001 Guard-Muffler
13. 530058757 Handle
14. 530071459 Foam - 71.12mm (kit) Not Shown
15. 530015886 Screw
16. 530049323 Isolator 545133463 Operator Manual
17. 530015197 Nut 530057414 Warning Decal
18. 530016322 Knob-Tube Clamp 530071715 Kit-Throttle (Zama)
19. 530071458 Heat Reflector (kit) 530071716 Kit-Choke (Zama)
20. 545018202 Assy-Hsg. Right (Incl #21) 530071725 Kit-Choke (Walbro)
21. 530402044 Spring Cover Latch 530071726 Kit-Throftle (Walbro)
22. 530049617 Guide-Starter Rope 545035737 Decal-Inst./Warning
