9. Quick Guide of Rear Camera (GP013, GP016 and GP017)
Warning:
a. Do not open the cover of the camera. It will no longer be waterpro if it is opened.
b. Do not aim the camera at bright or strong light sources, this will make the camera ineffective in
capturing vídeo.

• Cable connection:

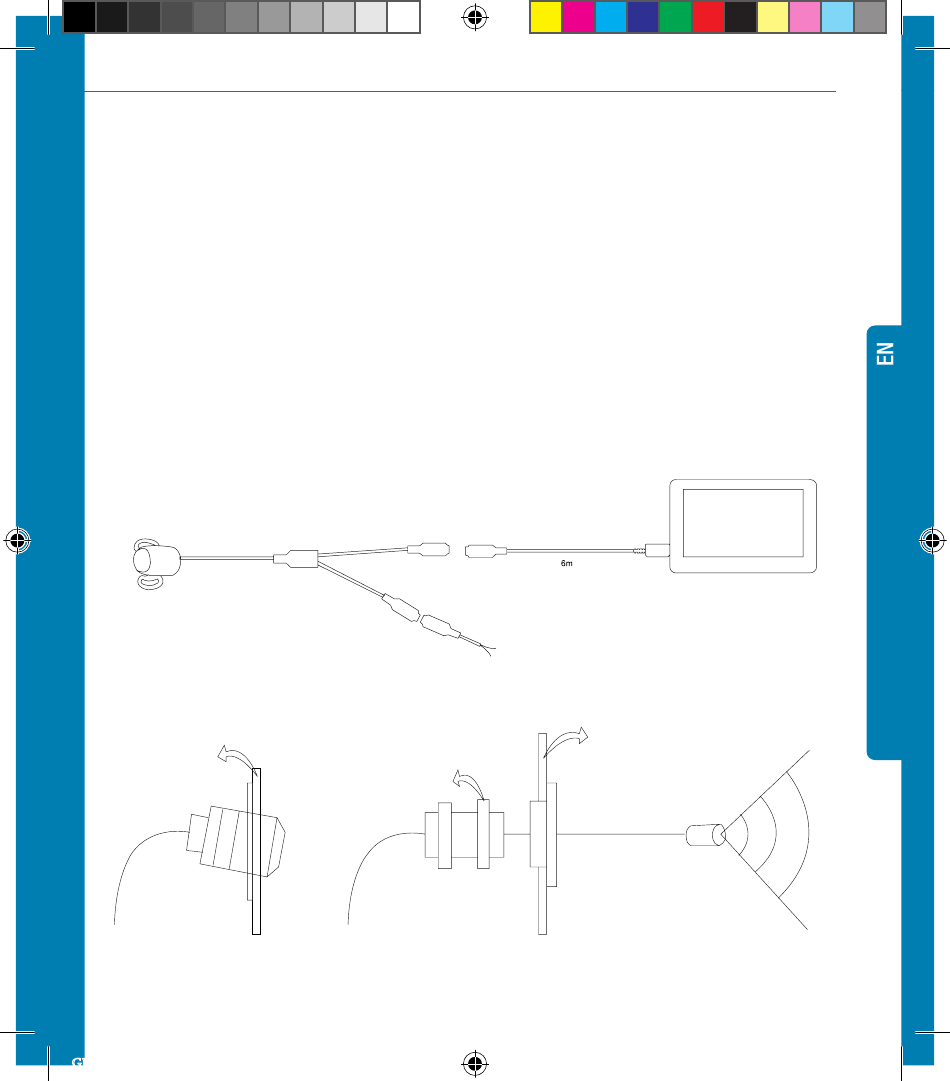

This camera can be installed in any vehicle. The following diagram shows a simple way of installing (fig 1).
• Instalation:
Flush-amount cameras can be installed by drilling a hole on the trunk or in rear bumper of the car (fig2). Please,
call a technician for installing the product.
video output
car body
diagram 1
GP033_GP039_manual_hardware_V2_RV1_CV.indb 78
yellow
energy
red
B+ (red)
velcro tape
yellow video input
GND (black)
car body
78
(fig 1)
diagram 2
(fig 2)
