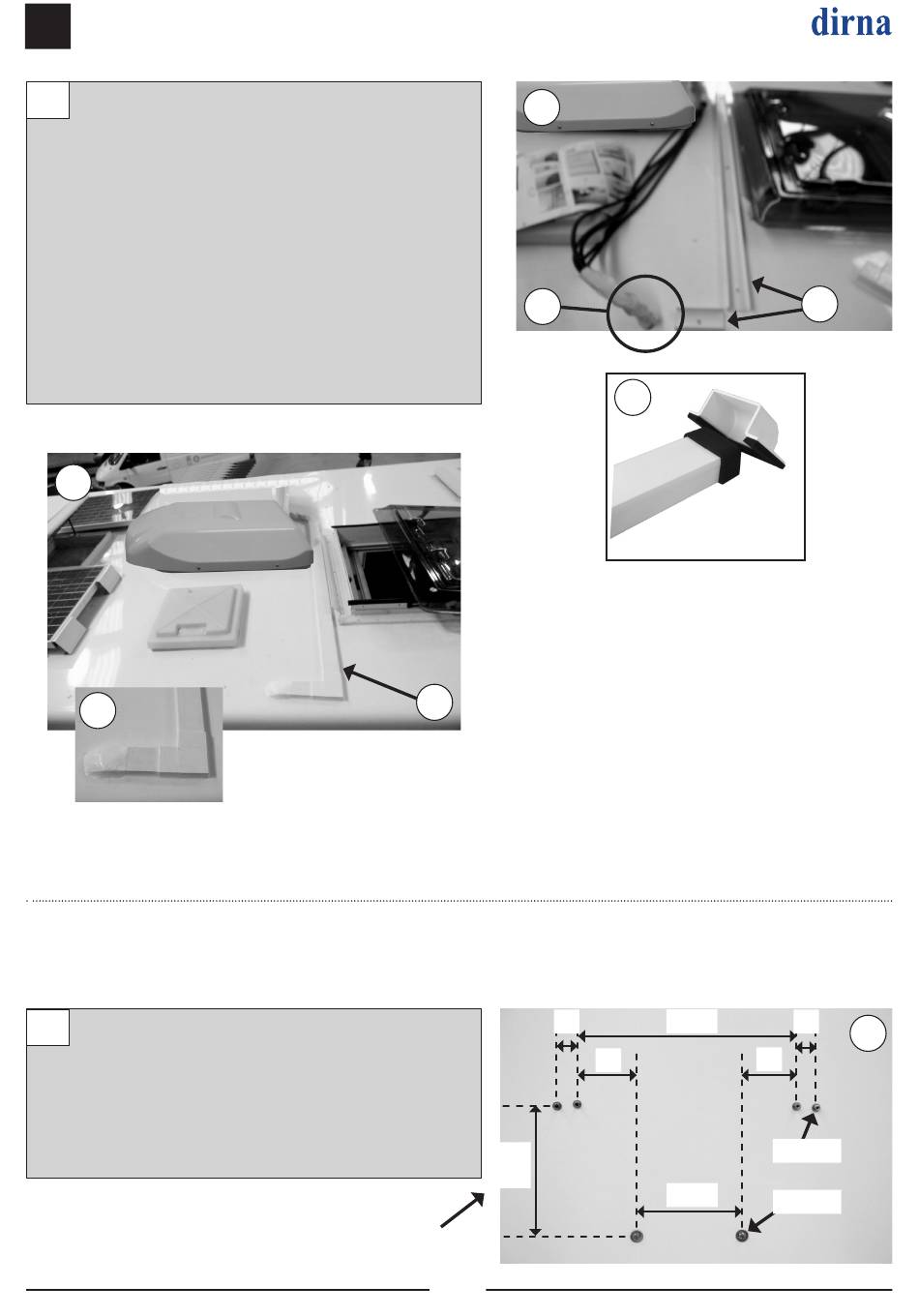

From roof, lead the (3) hoses and (2) cables
9
downwards.
a- Present both white grooves at 90º and cut
where they meet hole.
b- Once hoses and cables have been led along
grooves, seal hole area using silicone so as
to leave hoses and cables in a fixed position.
c- Place assembly joint.
d- Fasten grooves with Ø3.5x13 sheet thread
screws and seal all around to avoid water
from entering.
10
d
Present tank on most convenient place (inside,
11
in boot, etc), with lower support (in case it
can not rest on floor). Mark fastening points
(of lower support and both upper ones) and
drill holes respecting indicated diameters and
measures.
For upper holes if no
lower support is used
10
b
d
28
165
188
18
c
320
=
=
160
a
28
11
(4) Ø 3
(2) Ø 3
