Electric Wiring - Dirna Mini COOL COMPACT Instrucciones De Montaje

IMPORTANT WARNING!
Make sure polarities are not inverted when connecting equipment to battery. If this happens, electronic
control will emit discontinuous whistles. Do not touch any key on panel or on equipment control since
irreversible damages could occur. When hearing these discontinuous signals, disconnect equipment from
battery and check connection polarity.
Blower
Electronic module
wiring communication
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
Wiring strip
NA
10 A. Fuse
50 A. Fuse
Battery
29
dirna
, s.a.
EN

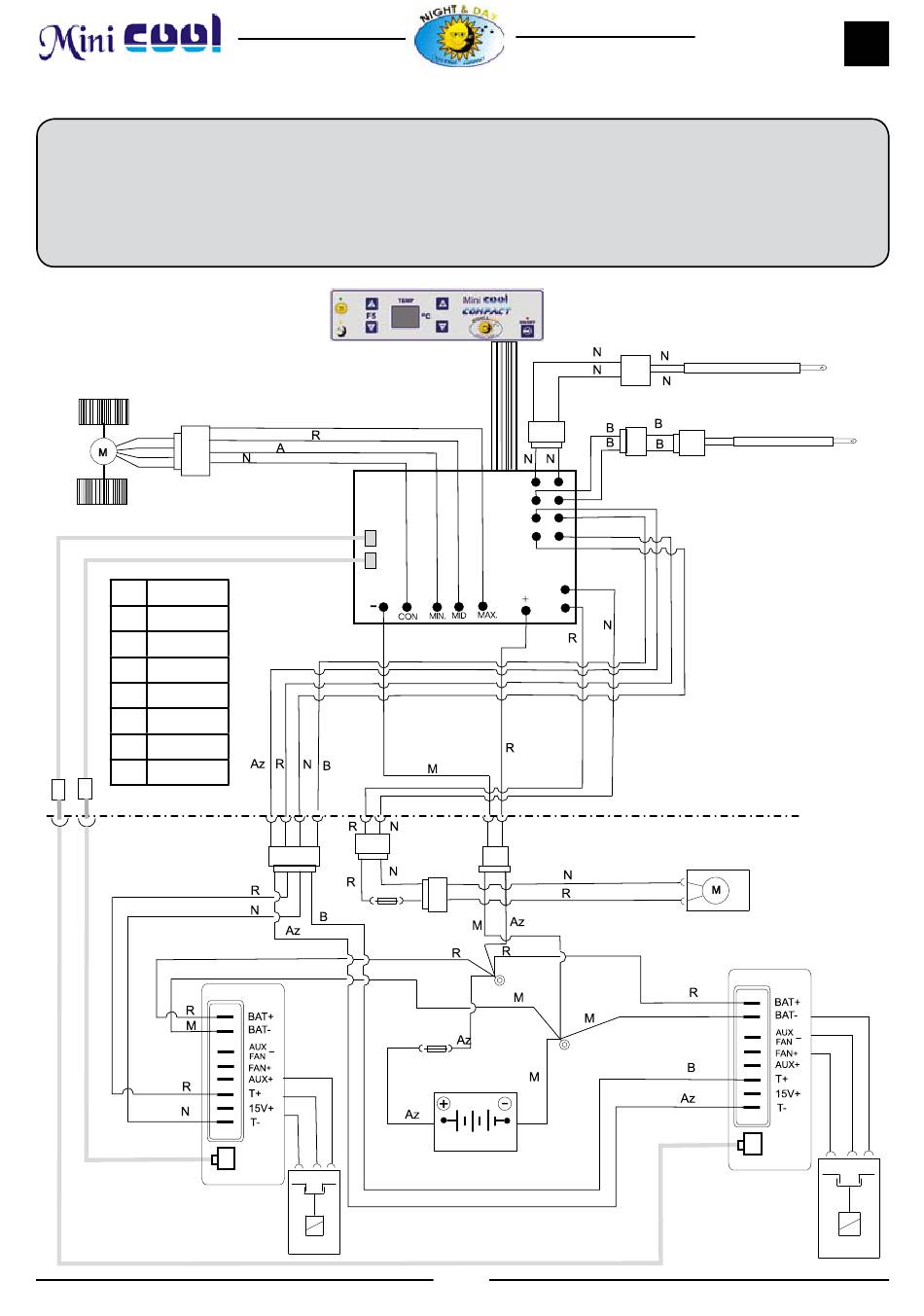

Electric wiring

Temperature probe
Antifreeze probe
Fan
Compressor
electronic
module
Compressor
