5. Mount the new power supply unit in the same position of the old one.

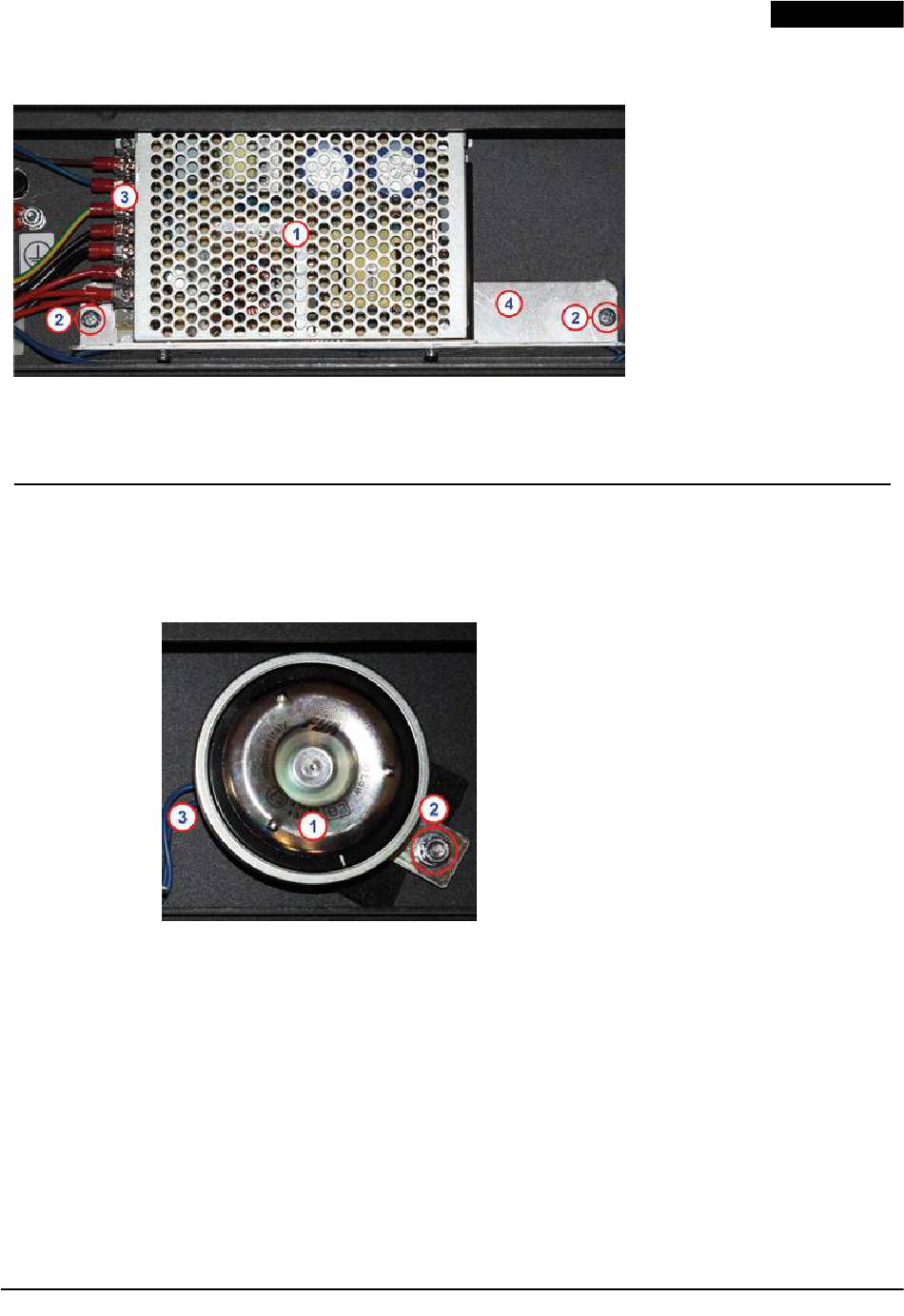

Fig. 10 Power supply unit replacement.
9.9. Horn replacement
1. Open the power supply module as described in chapter 9.2.
2. Remove the horn fixing elements.
3. Remove the connections from the horn and connect them to the new horn.
4. Mount the new horn in the same position of the old one.
Fig. 11 Horn replacement.
FAV E RO E L EC T RO NIC S
- 160826 - 00304-M02-03 - ML-FC serie scoreboards - User Manual Rev03
E NG LISH
1. Power supply unit.
2. Fixing elements.
3. Connections.
4. Support bracket.
1. Horn.
2. Fixing elements.
3. Connections.
