Pima DCM143 Instrucciones De Instalación

DCM
Installation Instructions
Инструкция по установке
Instrucciones de Instalación
‫הוראות התקנה‬
English, Русский, Español, ‫עברית‬
1
1 Magnet
2 DCM Detector
3 LED
4 DIP Switch
5 Tamper
6 External Input
7 Batteries
8 Mounting Holes
(Back Side)
9 Wiring Inlet
10 Magnet Location
Notch

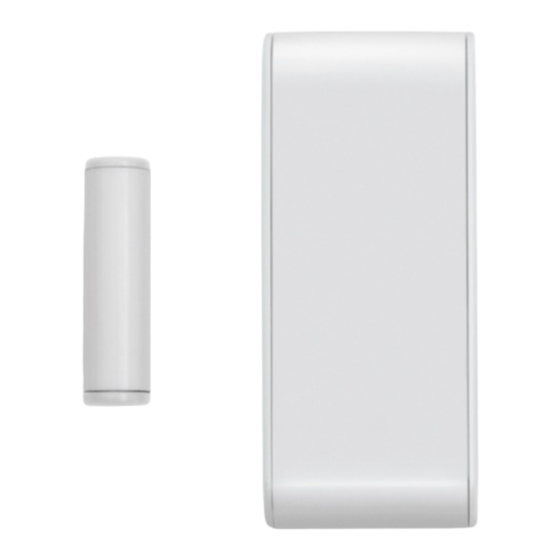

DCM Wireless Magnetic Contact and Transmitter
The DCM is a FastLink technology wireless magnetic contact and universal transmitter, designed for the FORCE Series and VISION intruder
alarm systems. Using the DCM in FORCE requires the installation of the WRF wireless receiver.
The DCM has a modern design and is battery operated. It is mounted on doors and windows, and wirelessly transmits an event to the
control panel when they are opened. The DCM's universal transmitter can be used to transmit events from normally close contact
devices, such as wired PIR detectors. The devices connect to the DCM's terminal block and are reported to the control panel as a
separate zone. The magnetic contact can be bypassed, so the DCM will only be used as a universal transmitter.
The DCM alerts on low battery, and has a tamper switch that alerts when its enclosure is opened or removed from the wall. It transmits
a test event every 15 min. Its LED indicates on any alarm transmission, and when the battery is low.
Cautions: the DCM is based on wireless (RF) transmissions. Any wireless transmission can be
subject to RF interference and, although unlikely, this interference may cause the DCM to not
operate as intended. RF transmissions will be attenuated by tinted glass, in wall isolation with
metal foils, metal objects, etc.
Technical specifications
 Frequencies (MHz):
o DCM143: 433.92
o DCM187: 868.95
 Battery: 2X 1.5V, AAA, Alkaline
 Battery Life Cycle: Up to 5 Years (Normal Usage)
Content of the product package
 DCM magnetic contact + magnet
2
3
ON
4
1 2
5
6
1 Магнит
2 Датчик
3 Светодиод
4 DIP-переключатель
5 Тампер
6 Вход для подключения
внешних устройств
7 Батареи
8 Монтажные отверстия
«нокауты» (вид снизу)
9 Отверстие для подвода
проводов
10 Метка (прорезь) для
позиционирования магнита
 Two batteries
8
7
9
1 Magneto
2 Detector DCM
3 LED
4 Interruptor DIP
5 Interruptor contra sabotaje
(Tamper)
6 Contacto para entrada externa
7 Baterías
8 Orificios de montaje (parte
posterior)
9 Orificio para cableado
10 Marca para ubicación correcta
del magneto
 Sizes: 8.5 X 3.5 X 1.4 cm, Magnet: 4 X 1 X 1.5 cm
 Weight: 60gr
 CE Compliance
 Operating Temperature: -10 to +50 °C
 Humidity (Max.): 93% R.H., Non-condensing
 Screws, mounting tapes
-1-
‫מגנט‬
DCM ‫גלאי‬
‫נורית‬
DIP ‫מתג‬
‫מפסק הגנה‬
) ‫(טמפר‬
‫חיצוני‬ ‫אביזר‬
‫סוללות‬
‫חורי תליה‬
)‫(בגב הגלאי‬
‫מעבר חיווט‬
‫מיקום המגנט‬ ‫חריץ‬ 10
 This guide
1
2
3
4
5
6
7
8
9
