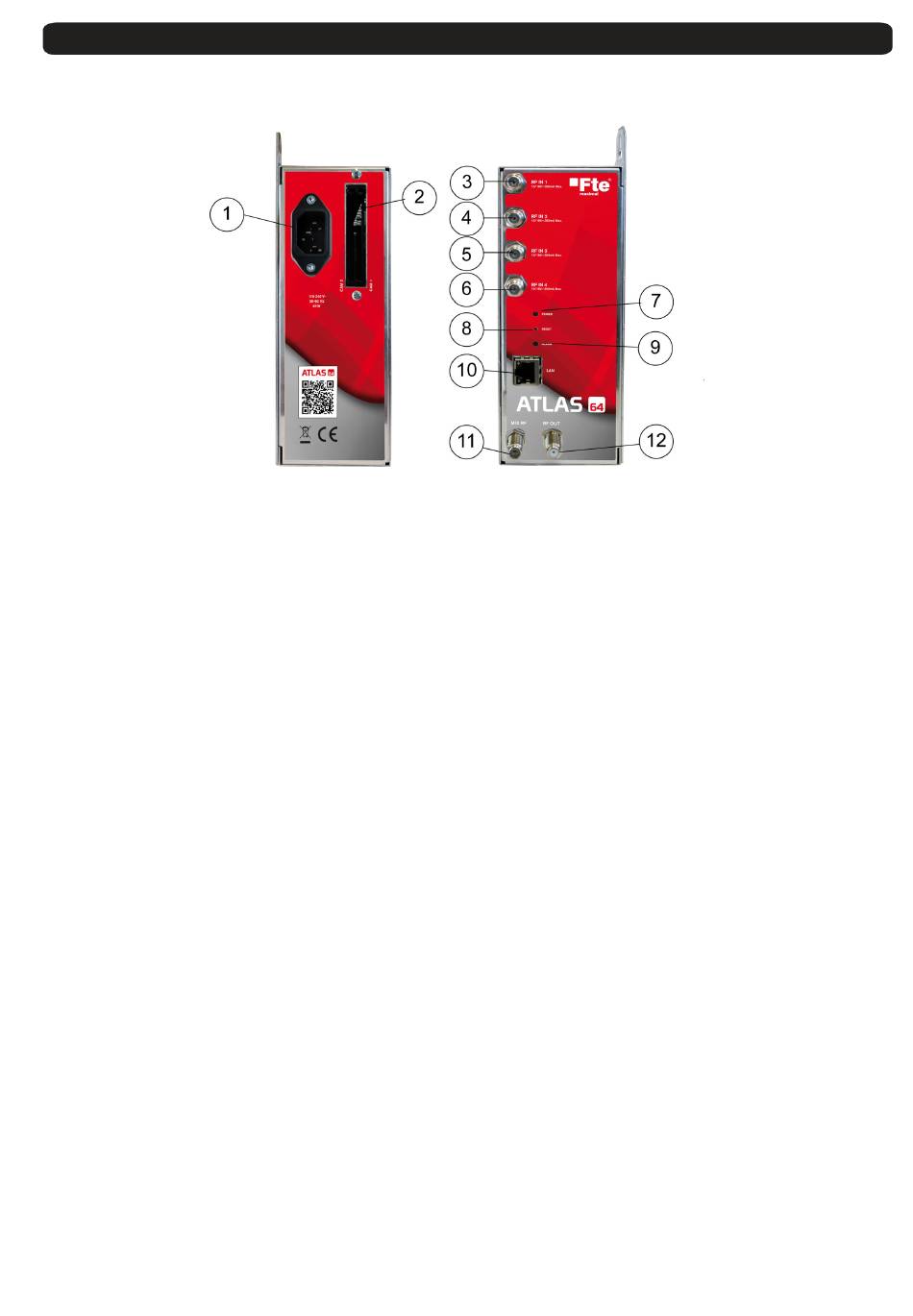

3.2. Connections
1 Mains connector. It is the mains connection. Connect the power cord here.
2 CAM1, CAM 2: The 2 slots C.I. to insert CAM and decrypt PAY TV services. The number
of service can be decrypted depend of the type of CAM inserted.
3 RF IN 1: Input 1 of signal DVB-S/S2. The RF input can supply remote device as LNB
4 RF IN 2: Input 2 of signal DVB-S/S2. The RF input can supply remote device as LNB
5 RF IN 3: Input 3 of signal DVB-S/S2. The RF input can supply remote device as LNB
6 RF IN 4: Input 4 of signal DVB-S/S2. The RF input can supply remote device as LNB
7 LED POWER: Power indicator. The light is green when the device is on.
8 RESET: It is the reset button. It is needed enter a tool to press the buttons for example a
clip for paper. If hold the button reset 2 seconds the headend will be rebooting and the
led ALARM will be turn on in red color. If hold the button more than 5 seconds, the
headend load the factory values. All the custom settings, IP configuration and password
will be cleared. The password will be "admin". The light ALARM blink in green color to
know the factory values will be loaded.
9 LED ALARM: This light has several state and to indicate the next events:
• Red: The Headend will be starting the boot stage.
• Red blinking: Alarm an error is detected. For example remove an input. Another
means is the boot is in the second stage.
• Blue blinking: The headend is loading a configuration or the headend is in the
last stage of the boot.
• Green: The button Reset was hold 5 seconds and the factory value are loaded.
• OFF: No alarm detected or the boot stage is finish.
10 LAN: Allow programming the device using the web interface.
11 MIX RF: Input to mix terrestrial signal from other device in the headend.
12 RF OUT: This is the output connector of the transmodulator. The 4 mux modulate in
DVB-T or DVB-C will be mixed with all terrestrial signal received in the input MIX RF.
