Battery replacement

6
Maintenance, repair and trouble shooting may only be performed by a trained call system specialist. Aside from normal battery replacement, CareMat
is maintenance-free.
10 EC-Declaration of Conformity
Manufacturer:
Following directives have been observed:
Product variants:
Bircher Reglomat AG, Wiesengasse 20, CH-8222 Beringen, www.bircher-reglomat.com
4
Bircher Reglomat AG, Wiesengasse 20, CH-8222 Beringen
RoHS 2011/65/EU, RED 2014/53/EU
CareMat Ax5T EK2.4, CareMat Bx5T EK2.4, CareMat Cx5T EK2.4, CareMat Mx5T EK2.4

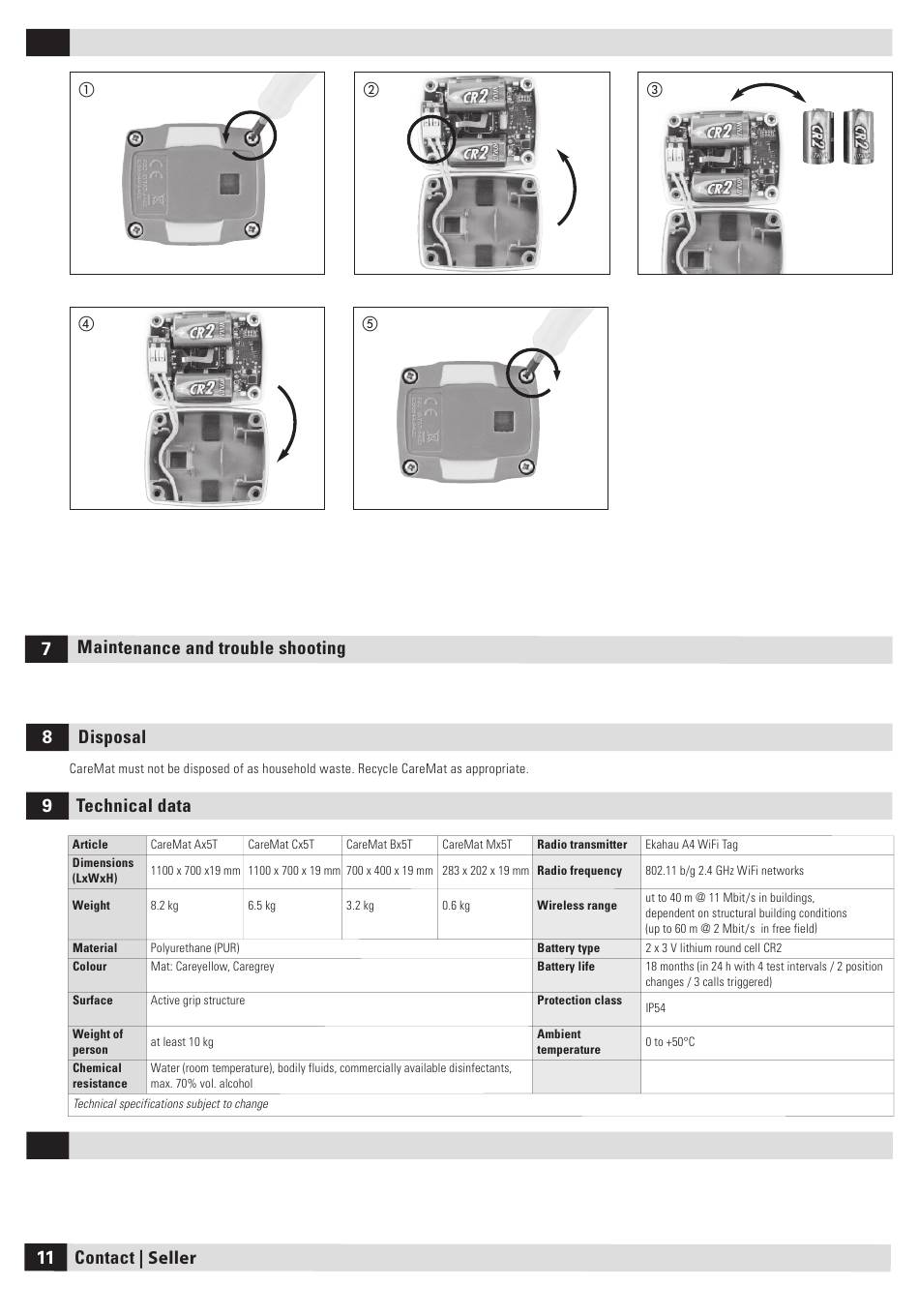

1. Underside of the mat
Remove the four housing screws (Philips #1)
Caution: do not to lose the four O-ring seals.
2. Upper side of the mat
Carefully raise the housing cover
Caution: Do not pull the wires out
of the clamp terminals.
3. Replace the two CR2 batteries.
Caution: Observe correct polarity.
4. Place the housing cover back into position.
Caution: Take care to ensure that no foreign
particles or moisture find their way into the
housing or onto the sealing edge surrounding
the housing and that no cables are trapped.
5. Underside of the mat
Restore the four screws together with the O-ring
seals to their previous positions and carefully
tighten them by hand.
