Model 7084

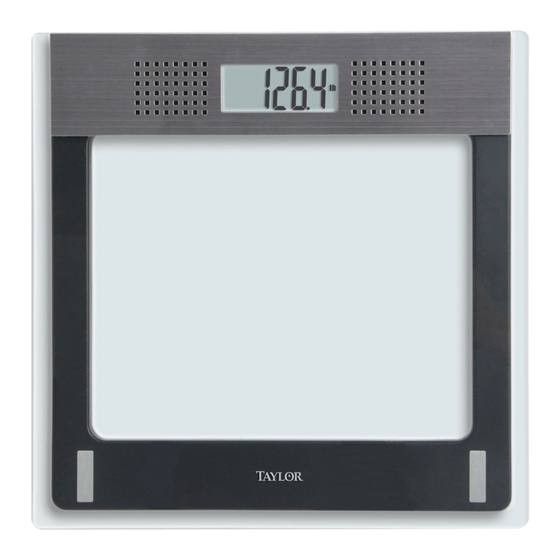

Electronic Scale with Voice Feature
Instruction Manual
Thank you for purchasing a Taylor® Electronic scale. All of our precision instruments for weight
measurement are engineered and designed to meet the highest quality standards ...to assure
you years of uncompromising accuracy and consistently dependable, convenient performance.
These instructions contain important and useful information about this unit's operation. Please
read instructions thoroughly to ensure that you have the full benefit of all the unit's features.
Keep these instructions handy for future reference.
Battery Installation
1. Use 3 AAA batteries (included. Remove any plastic wrap from the batteries before
proceeding). Always replace all batteries at the same time; do not combine old and new
batteries. Do not mix Alkaline, carbon-zinc (standard) or Nickel-Cadmium (rechargeable)
batteries.
2. Remove the battery compartment cover on the bottom of the scale.
3. Place the batteries into the battery compartments according to the "+" and "-" polarity symbols
at the bottom of the compartment.
4. Replace the battery compartment cover.
5. Replace all the batteries if "LO" is displayed and the scale says "Low Battery", LCD readings
grow dim or irregular, or the voice quality distorts or becomes too soft to hear.
NOTE: Please recycle or dispose of batteries per local regulations.
WARNING: Batteries may pose a choking hazard. Do not let children handle batteries.
General Operation
1. Install 3 AAA batteries (please see "Battery Installation" section of this manual for battery
installation instructions). Also, some models have a static cling label on the lens to prevent
scratching. Please remove before use.
2. Select language of English, Spanish, German, Greek or Croatian by pressing the button on
the side of the scale. The scale will speak the corresponding language once the language is
selected. (Note: Pound units of measurement will be spoken in English. Spanish, German,
Greek and Croatian will be spoken in kilograms.)
3. Select a volume level of high, low or off by moving the volume dial slide switch on the side of
the scale. To turn the voice function off, turn the dial until it clicks off.
4. Place scale on flat, hard surface. Carpeted or uneven floors may affect accuracy.
5. Press firmly on the scale platform. The scale turns on, beeps and says "Ready for operation."
This process insures the scale is set and is now ready for use. Do this whenever the scale is
moved. At all other times step straight onto the scale.
6. Step onto the scale platform and remain still. The display will count up to your weight. The
display will flash twice when the weight is locked. Your weight is now displayed and you will
hear your weight.
7. When you step off of the scale, the scale will say "Ready for operation' and automatically turn
off. If you continue to stand on the scale, the scale will beep twice and automatically turn off.
NOTE: If you've weighed yourself and the message "Err" is displayed with sound "Error", simply
step off of the scale and repeat the weight measurement procedure while standing still. Your
weight cannot be locked-in if you do not stand still.
