Instruction Manual
XPP-5422GMX

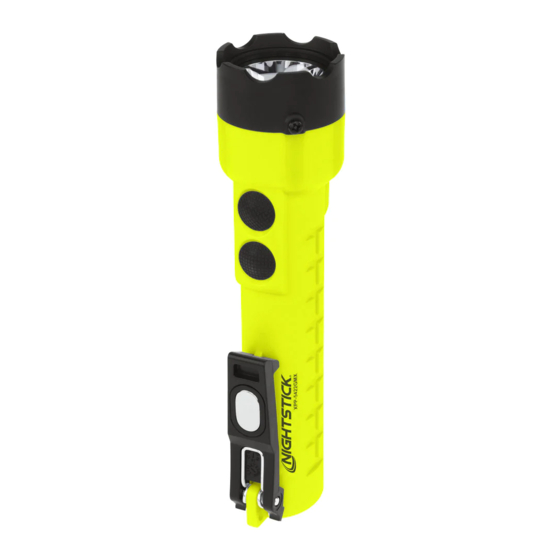

Please read these instructions before using your Nightstick XPP-5422GMX
Intrinsically Safe Permissible Dual-Light Flashlight. They include important safety
information and operating instructions.
THE XPP-5422GMX IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd.
Wylie, TX 75098
ID 4003544
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
CLASS I DIV 1 GRPS A-D T3
CLASS II & III DIV 1 GRPS E-G T135C
CLASS I ZONE 0 AEx ia IIC T3 Ga
CLASS I ZONE 0 Ex ia IIC T3 Ga
I M 1 Ex ia op is I Ma
II 1 G Ex ia op is IIC T3 Ga
Conforms to:
ANSI/UL STD 913, ANSI/UL
60079-0, ANSI/UL 60079-11
ANSI/ISA 60079-26
CAPACITANCE LIMITATION - INTRINSICALLY SAFE
The capacitance measured on the two magnets and the side clip exceeds 3pF
for Group IIC. The user shall determine the suitability of the equipment in the end
application.
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AA batteries with this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open the lens
bezel in the hazardous environment. This task must ONLY be performed in an
area known to be non-hazardous.
y Warning: When exchanging batteries, use only Duracell PC1500, Energizer
EN91 or Energizer L91 batteries.
y Warning: To prevent ignition of a hazardous atmosphere, the AA batteries must
only be exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new non-rechargeable
batteries with used non-rechargeable batteries, or mix non-rechargeable
batteries from different manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
y For personal safety, always confirm the rating of any known hazardous or
potentially hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the XPP-5422GMX's Intrinsically Safe
Permissible rating, the only AA batteries certified for use with this light are the
Duracell PC1500, Energizer EN91 or Energizer L91 batteries.
y Do not attempt to use any other brand or model of AA batteries with this light.
y Do not attempt to use any type of rechargeable AA batteries with this light.
Warning: To prevent ignition of a hazardous atmosphere, do not remove the
lens bezel or the reflector / battery carrier in the hazardous environment. This
task must ONLY be done in an area known to be non-hazardous.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
XPP-5422GMX
Segurança
INMETRO
Ex ia op is I Ma
Ex ia op is IIC T3 Ga
(-20ºC ≤ Tamb ≤ +40ºC)
0359
NCC
15.0286 X
Ex ia op is I Ma
Ex ia op is IIC T3 Ga
Intertek ITS 13 ATEX27837X
IECEx ITS 16.0067X
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell AA Alkaline
Certified to:
CAN/CSA STD C22.2 No 157
CAN/CSA STD C22.2 No 60079-0
CAN/CSA STD C22.2 No 60079-11
CSA STD C22.2 No 25
y Loosen the locking screw located on the side of the lens cap. NOTE: Do NOT
attempt to completely remove the locking screw. Doing so is not necessary and
may damage the threads. The screw simply needs to be loosened enough to
allow the lens bezel to unscrew.
y Unscrew the lens bezel from the housing in a counter-clockwise direction.
y Turn the light upside down and carefully shake the light in order to remove the
reflector / battery carrier. Allow the reflector / battery carrier to slide into your
hand. WARNING: Do NOT touch the reflector surface with your finger. Doing
so may damage the reflector surface.
y Using 3 – AA Duracell PC1500, Energizer EN91 or Energizer L91 batteries
(make sure that all 3 batteries are of the same model), install the batteries in the
carrier paying close attention to the markings on the battery carrier for proper
battery terminal polarity alignment.
y Align the reflector / battery carrier so that the switches on the carrier are aligned
with the switches on the housing. Carefully insert the reflector / battery carrier
back into the flashlight housing until it is fully seated in the housing. WARNING:
Be careful to not touch the reflector surface with your finger. Doing so may
damage the reflector surface.
y Replace the lens bezel by screwing it onto the housing in a clockwise direction.
y Tighten locking screw. CAUTION: Do NOT over-tighten. Doing so may
damage the threads and impact the light's Intrinsic Safety.
OPERATION
THE XPP-5422GMX HAS FOUR SEPARATE LIGHTING MODES:
Momentary Flashlight Mode
Lightly press the top body switch for momentary operation. Release the switch
to turn the light off.
Constant-on Flashlight Mode
Press the top body switch until it clicks and then release for constant-on mode.
Press and release the top body switch again to turn the light off.
Floodlight Mode
Press the bottom body switch until it clicks and then release for floodlight
mode. Press and release the bottom body switch again to turn the light off.
Dual-Light Mode
Dual-Light allows the user to turn on both the Flashlight and the Floodlight, at the
same time. Press the top body switch until it clicks and then release for constant-
on mode Flashlight Mode. Next press and release the bottom switch to activate
the Floodlight. Both the Flashlight and the Floodlight are now running. Press and
release both the top and bottom body switches to turn the lights off.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in
workmanship and materials for the original purchaser's lifetime. The Limited
Lifetime Warranty includes the LEDs, housing and lenses. Rechargeable batteries,
chargers, switches, electronics and included accessories are warranted for a
period of two years with proof of purchase. Normal wear and failures which are
caused by accidents, misuse, abuse, faulty installation and lightning damage are
excluded.
We will repair or replace this product should we determine it to be defective.
This is the only warranty, expressed or implied, including any warranty of
merchantability or fitness for a particular purpose.
For a complete copy of the warranty, go to www.nightstick.com/nightstick-
product-support/warranties. Retain your receipt for proof of purchase.
INS-XPP5422GMX-18
07-31-2018
