Vollrath Mirage Pro 59500P Manual Para Operadores

Thank you for purchasing this Vollrath equipment. Before operating the
equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. Save the original box and packaging. Use this packaging
to ship the equipment if repairs are needed.
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are
explained below. Please read carefully.
WARNING
Warning is used to indicate the presence of a hazard that will or can
cause severe personal injury or death.
CAUTION
Caution is used to indicate the presence of a hazard that will or can
cause minor or major personal injury if the caution is ignored.
NOTICE: Notice is used to note information that is important but not
hazard-related.
To reduce risk of injury or damage to the equipment:
• Plug only into grounded electrical outlets that match the voltage on
the rating label.
• This equipment requires a dedicated circuit.
• Do not use extension cords, power strips or surge protectors with
this equipment.
• Unplug this equipment from the wall outlet when not in use.
• Use this equipment only in a flat, level position.
• To protect against electrical shock do not immerse the cord or plug
in water. Keep the cord away from heated surface. Do not let the
cord hang over the edge of table or counter.
• As a precaution, persons using a pacemaker should stand back 12"
(30 cm) from an operating unit. Studies have shown that the
induction element will not disrupt a pacemaker.
• Keep all credit cards, driver licenses and other items with a magnetic
strip away from an operating unit. The unit's magnetic field will
damage the information on these strips.
• The heating surface is made of a strong, non-porous material.
However, should it crack or break, stop using and immediately
unplug the unit. Cleaning solutions and spills could penetrate the
broken cook-top and create a risk of electrical shock.
• Do not operate this equipment with a damaged cord or plug or if it is
not functioning properly.
• Do not operate unattended. Closely supervise units operating in
public areas and/or around children.
• Do not place any objects inside the air intake or exhaust panels.
• Do not attach any accessory objects to this equipment.
Operator's Manual

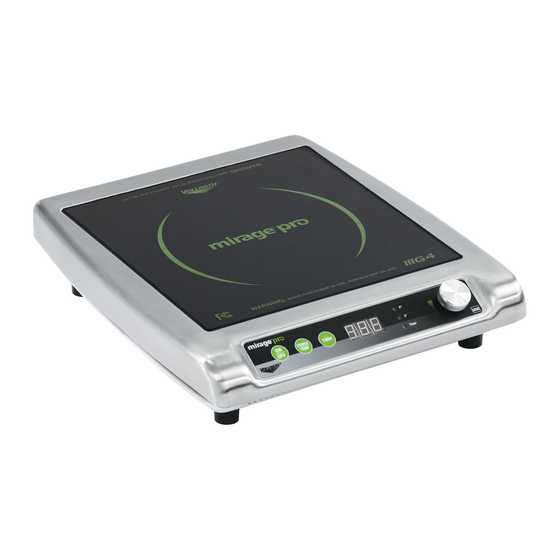

Mirage Pro Induction Range
®
Model Description
59500P Countertop Induction Range, 1800 watts
59510P Countertop Induction Range, 1440 watts
FUNCTION AND PURPOSE
This equipment is intended to cook food in commercial food service
operations only. It is not intended for household, industrial or
laboratory use. It is intended to be used with induction-ready cookware.
COOKWARE REQUIREMENTS
Compatible
4¾" to 10¼"
• Flat base 4¾" to 10¼"
(12.1 to 26 cm) in diameter
• Ferrous stainless steel, iron,
cast iron
Note: Cookware with inferior construction or material may not perform
well. Cookware with a larger base diameter can be used, however only
the area of the cookware above the induction coil will heat. The more
cookware extends past the coil, the more the overall performance will
be reduced.
NOTICE: Equipment Damage Hazard
Not intended for use with aluminum pans with a metal disk
on the bottom. Under high heat, the metal disk will separate
from the pan. These pans may damage your unit and void
your warranty.
©
2019 The Vollrath Company L.L.C.
Incompatible
less than 4¾"
• Base is not flat
• Base is less than 4¾" (12.1 cm)
in diameter
• Pottery, glass, aluminum,
bronze or copper cookware
• Metal disk on bottom of pan
Part No. 2350060-1 ml 11/19/19
