z-laser ZM18 Serie Guia De Inicio Rapido

Thank you for purchasing
a Z-LASER product!
Welcome to the ZM18 laser series!
(1) Warning label (3) M18 thread with two nuts
(2) Focus ring
(only on focusable lasers)
CAUTION
(EN 60825-1)
LASER LIGHT
Avoid direct eye exposure to laser beam!
Confi guration scheme and modulation
ZM18B (Basic)
2 1
+
4
3
ZM18DM(5, 53)*
Pin 2:
1: +
TTL
2: TTL
3: -
Pin 4: Applying a DC voltage between 0-1V at pin 4, the laser intensity is controlled.
4: Ana.
Analog
0V means the laser power is < 10% of the nominal power.
1V and above means the laser will achieve 100% of the nominal laser power.
Modulation Analog intensity control (up to 32 steps) and digital TTL Trigger up to 1 kHz
ZM18S3: TTL up to 500 kHz
General rule Note that there is a linear characteristic between the two voltages! Both control inputs are tolerant to DC voltages up to 25V, therefore, by applying 24V to the laser, it can easily be switched
on to 100% by bridging pins 1, 2 and 4. There is no need for an extra supply of 1V. You cannot destroy the laser in a 24 Volt system by wrong connections of input pins.
* Attention: Laser type ZM18DM53 with 4-wired cable must be supplied only with 4-6VDC (applies also for old ZM18DM5)!
CE-Conformity according to the directives 2004/108/EC and 73/23/ECC excluding connection type.
ZM18DM5 (discontinued model)
Mechanical specifi cations *
Max. Dimensions 76mm x
ZM18DM5(3) with cable
91mm x
Max. Dimensions 136mm x
ZM18B-green (focusable and fi xed focus version)
Max. Dimensions 91mm x Ø 20mm (fi xed focus version)
108mm x Ø 20mm (focusable version)
Protection category
Connection ZM18B: M12 plug, 4-pin
ZM18DM5(3): integrated cable
M18 industry housing
Electrical specifi cations *
Supply voltage 5-30VDC +/- 5%
ZM18DM5(3): 4-6VDC
Power consumption
Mode of operation APC with current limiting (or CC)
Modulation ZM18B: Continuous wave
ZM18DM(5, 53): TTL modulation up to 100 kHz
Protection Reverse polarity and transient / ESD
Optic specifi cations *
Output power
Wavelength 635nm - 980nm
ZM18B-green: 532nm
Environmental conditions *
Case temperature
Storage temperature
Humidity
MTTF at 25°C
* For further information please take a look on the data sheets. Do you need help? Please contact your country representative or visit us on www.z-laser.com.
* Weitere Informationen fi nden Sie auf den Datenblättern. Benötigen Sie Hilfe? Kontaktieren Sie Ihre Landesvertretung oder besuchen Sie uns auf www.z-laser.com.
* Vous trouverez de plus amples informations sur les fi ches techniques. Avez-vous besoins d'aide ? Contactez votre distributeur national, ou rendez nous visite sur le site www.z-laser.com.
* Per maggiori informazioni consultare il foglio tecnico specifi co. Per ulteriore supporto contattate l'agente o la nostra sede. Potrete trovare tutte le informazioni sul nostro sito www.z-laser.it.
* Por favor, revise las fi chas técnicas para más información. ¿Necesita ayuda? Por favor contacte con el distribuidor de su país o visite www.z-laser.com.
* 青色波長、 ＺＭ１８-グリーン等の詳細についてはデータシートを参照下さい。 ご不明な点があ り ま したら、 弊社代理店、 または直接www.z-laser.comにお問い合わせ下さい。
Accessories • Zubehör • Accessoires • Accessori • Accesorios • ア クセサリー
Some available optics • einige erhältliche Optiken • quelques optiques
disponibles • alcune ottiche disponibili • alcune ottiche disponibili • 照射パターン
Line Cross
Parallel lines Dotted line
Linie Kreuz Parallele Linien Punkte-Linie
Ligne Croix
Lignes parallèles Ligne point
Linea Croce Linee parallele Linea di punti
Línea Cruz
Líneas paralelas Línea-punteada
ライン クロス
平行線 点線
www.Z-LASER.com
(4) LED laser operation
(5) M12 connector (6) Industrial M12 plug

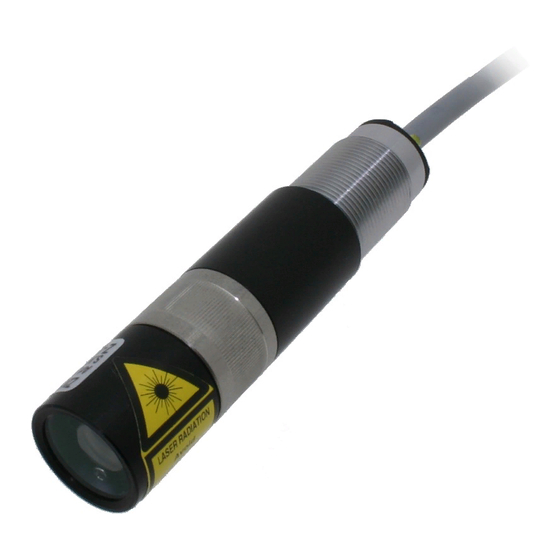

ZM18-DM5 Z
version with cable ve
Product emits laser
radiation in laser classes:
LASER 1, 1M, 2, 2M, 3R, 3B
RADIATION
ZM18 series is available with different features *
Die Serie ZM18 ist mit unterschiedlichen Merkmalen verfügbar *
La Série M18 est disponible avec des caractéristiques différentes *
La serie ZM18 è disponibile con varie caratteristiche *
La serie ZM18 está disponible con distintas características *
ＺＭ１８シリーズは異なった特徴と利用できる *
Pin 1: Voltage supply +
1: +
Pin 2: TTL modulation n.c.
2: /
3: -
Pin 3: Voltage supply -
4: /
Pin 4: Analog modulation n.c.; Continuous wave
ZM18S, ZM18S3 (Standard)
Voltage levels below ~2V are interpreted as logic 0 or "light off"; voltage levels above ~2V are interpreted as logic 1 or "light on".
ZM18B (Basic), ZM18DM(53)
Ø 20mm (fi xed focus version)
Ø 20mm (focusable version)
Ø 20mm
Chromed brass, with optic head: anodised aluminium
-10°C up to +50°C (depending on wavelength; heat dissipation e.g. with mounting H8-M18)
Dot matrix Square
Circle
Punkt Matrix
Quadrat Kreis
Point matrice Quarré
Cercle
Matrice di punti Quadrato
Cerchio
Matriz de puntos Cuadrado
Círculo
ド ッ トマ ト リ ク ス 方形
サークル
EN: Brief description of ZM18
1. Warning label is enclosed (or attached in advance) and should be well visible. Please pay atten-
tion to the laser classes! (EN 60825-1) Laser class 3R, 3B and 4 are intended for integration into
complex systems and are not approved for stand-alone operation. They require a laser protection
offi cer who will decide on the necessary legal measures of training, hazard control and use.
2. By rotating the focus ring, the laser projection can be focused (from 100mm up to ∞).
3. M18 thread with two nuts for a simple installation in a mounting or a mounting angle.
4. • LED light = Laser on
• LED blinking orange/green (only ZM18-S/H) = internal temperature of 65°C is reached. At 85°C,
the laser turns off, but the LED still blinks. –
turns on automatically!
5. M12 connector to provide fi xed and secure connection to power supply,
cable or customized solution (also see confi guration scheme with ZM18-S/H).
Version with fl ying leads connection is also available (ZM12DM5).
6. Fit industrial plug to laser, screw softly by hand (without tool).
About 2mm of the screw thread must be visible, do not fi x it any further!
Installation into a mount
– On the side example with a H6-M18
(alternative angle mounting)
1. Spin nut 1 on to the M18 laser
thread.
2. Screw the laser into the mount until
you reach nut 1 (alternative: put into
mounting angle).
3. Spin nut 2 from behind and fi x softly
both nuts with a M18 device.
Installation into a mount with
Please do not fi x the mount on to the front of the laser body as pressure can cause damage to the
optics. Please fi x the mount behind the focusing adjustment.
Troubleshooting:
• No laser light. Is the plug and/or power supply connected, supply voltage available?
• No laser light. Is the cable damaged / broken or is the power supply/power socket defective?
• No laser light. Are the pins connected correctly?
• Diffuse projection: (if focusable) readjust focus ring.
• Diffuse projection: If the optic appears "dirty" - carefully, clean with a cotton bud and spirit.
If the above troubleshoots do not solve your problems, it is possible that there is a fault with the electro-
nics or laser diode. If the laser diode is faulty, as per split or weak beam, please return the laser to our
headquarters.
[ZM18DM5: up to 100 kHz @ black cable]
Please note that the switching threshold can vary slightly.
Applying a DC voltage between 0-1V @ ZM18H / 0-2V @ ZM18H3 at pin 4, the laser intensity is
controlled.
0V means the laser power is < 10% of the nominal power.
1V @ ZM18H / 2V @ ZM18H3 and above means the laser will achieve 100% of the nominal laser
power.
ZM18H: APC: TTL up to 1 MHz; sinusoidal waves up to 5 MHz; ACC: up to 20 MHz (diode depen-
ding) ZM18H3: see below
ZM18S (discontinued model)
ZM18S3 (Standard)
-
-
112mm x Ø 20mm (fi xed focus version)
128mm x Ø 20mm (focusable version)
IP 67, dust-proof and water-proof
5-30VDC +/- 5%
< 4VA
APC with current limiting
Analogue intensity control (up to 32 steps)
and digital TTL Trigger up to 1 kHz
ZM18S3: digital TTL Trigger up to 500 kHz
Reverse polarity and transient / ESD,
over temperature protection
1-200mW (depending on wavelength and model)
635nm - 980nm
-10°C up to +80°C
Max. 90%, non condensing
> 30.000h on red wavelengths (635 - 785nm)
> 5.000h on green and blue wavelengths
Mounting Mounting
Halterung Halterung
Fixation Fixation
Supporto Supporto
Montura Montura
取付ブラケ ッ ト 取付ブラケ ッ ト
H8-M18 H6-M18
5 Circles
5 Kreise
5 Cercles
5 Cerchi
5 Círculo
5 サークル
No LED light = Laser off
|
Attention: After cooling down below 85°C the laser
Ø 20mm, as example H2-20
Connection options with cable (KB4)
brown
white
blue
black
ZM18H, ZM18H3 (High-End)
ZM18H (discontinued model)
ZM18H3 (High-End)
-
-
123mm x Ø 20mm (fi xed focus version)
138mm x Ø 20mm (focusable version)
M12 plug, 4-pin
Gold plated brass, with optic head: anodised aluminium
5-30VDC +/- 5%
APC with current limiting or CC
APC: TTL up to 1 MHz; sinusoidal waves up to 5 MHz
ACC: Up to 20 MHz (diode depending)
ZM18H3 Blue: Analog and TTL modulation up to 200 kHz
ZM18H3 Green: Analog and TTL modulation up to 100 kHz
Reverse polarity and transient / ESD,
over temperature protection
ZM18H: 405nm - 980nm
ZM18H3: 405nm, 450nm, 520nm
Mounting 90° Optic head Power supply
Halterung 90° Optikkopf Netzteil
Fixation 90° Tête optique Alimentation
Supporto 90° Ottiche Alimentatore
Montura 90° Cabezal óptico Alimentación
取付ブラケ ッ ト レンズヘッ ド 電源供給
H2-20 WPS-5-M12 (UK)
Nut 1 H6-M18 Nut 2
Cable
Kabel
câble
cavo
Cable
ケーブル
KB4
