Arion Legacy ET-AR506-BK Manual Del Usuario

ENGLISH
1. Package Contents
1. ET-AR506-BK
2. User Manual
3. 3.5 mm to RCA audio cable
2. Safety Instructions
Warning: Electric Shock Hazard
1. Do not use this product near water.
2. Unplug from AC outlet when not in use and before cleaning.
3. Close supervision is necessary when used near children.
4. Clean only with dry cloth.
5. Do not attempt to repair the product on your own. It contains no user serviceable parts.
3. Product Overview
7
8
1. Power Switch 5. Headphone
Turns Power On / O Connects to headphones
2. Volume Control 6. Power Cord
Turns Volume Up / Down Connects to 120V AC Outlet
3. Power LED 7. Audio Input
Power on indicator Connects to your music device
4. Mute Button 8. Audio Output
Press to mute Connects to left and right satellite speakers
4. Product Setup
1. Connect your music device to audio input.
2. Connect left and right satellites to audio output.
3. Connect the power cord to 120V AC outlet.
4. Release the mute button. Slowly increase volume until
reaching a comfortable level.
Manual
5. You can connect headphone to speaker's headphone jack.
No sound will be output from the speakers while the
headphone is connected.
5. Frequently Asked Questions
Speaker turns o : Disconnect AC power and wait 1 minute before reconnecting. Incorrectly wired
speakers may overload the ampli er and cause a temporary shutdown. Check audio wire polarity.
No sound is heard from the speakers: Try the speaker mute button. Check the audio settings on your
computer or smartphone. Unplug headphone connected to the headphone output jack.
One of the two satellites is not working: Check audio wires are not bent. Switch left and right speakers
to see if problem persists.
Sound is distorted: Lower the speaker volume and/or bass level. Check the audio settings on your
AUDIO INPUT
R L
computer or smartphone. Try moving the subwoofer closer or farther away from a wall or corner to a ect
R L
AUDIO OUTPUT
the bass performance.
2
5
4
6
POWER 6. Speci cations
3
1
Power Source: 120 VAC 60 Hz
Total Peak Power: 100 Watts
Total RMS Power: 50 Watts
Satellite RMS Power: 12.5 Watts x 2
Subwoofer RMS Power: 25 Watts x 1
Frequency Response: 20 Hz to 20 kHz
Satellite Drivers: dual 3 inch woofers and 1 inch tweeter in wooden cabinet
Subwoofer Drivers: dual 5 inch subwoofer in wooden cabinet
Satellite Dimensions: 3.94 x 10.52 x 4.93 inches
Subwoofer Dimensions: 6.58 x 12.05 x 9.49 inches

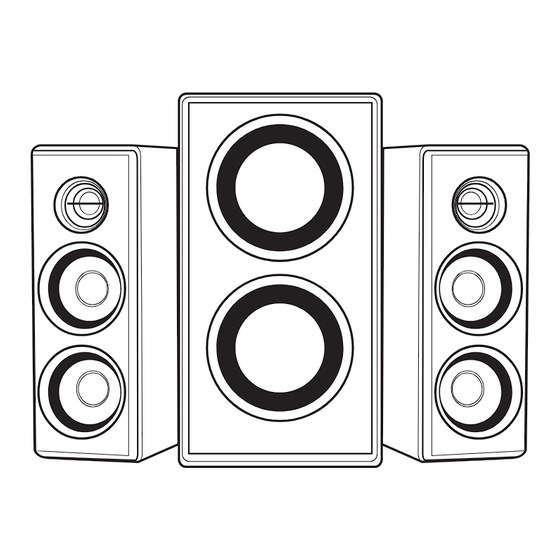

2.1 Speaker System with Dual Subwoofers & Control Pod
Model: ET-AR506-BK
User Instructions: Please read carefully before using
7. Regulatory Compliance
FCC Class B Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. However, there is no guarantee that interference will not occur in
a particular installation.
AUDIO INPUT
1
R L CE Compliance for Europe
R L
This equipment has been tested and found to comply with the limits for European Council Directive on
AUDIO OUTPUT
5
2
the approximation of the law of the member states relating to electromagnetic compatibility
(89/336/EEC) according to EN55022 Class B.
4
POWER
3
8. Limited Warranty
Arion Legacy warrants that the product, in the course of its normal use, will be free from defects in
material and workmanship for a period of one (1) year. This limited warranty period shall commence on
the purchase date appearing on your purchase receipt. Arion Legacy shall have no liability for any
product returned if Arion Legacy determines that the product was not purchased from authorized
retailers, that the asserted defect a) is not present, b) cannot reasonably be recti ed because of damage
occurring before Arion Legacy receives the Product, or c) is attributable to misuse, improper installation,
alteration (including removing or obliterating labels and opening or removing parts). The foregoing
warranty shall extend to repaired or replaced products for the remaining of the applicable period of the
original warranty or ninety (90) days from the date of shipment of a repaired or replaced product,
whichever is longer.
9. Contact Us
Website
FAQ
Customer Support
General Information
© 2014 Arion Legacy. All rights reserved. Arion Legacy, the Arion Legacy logo and other Arion Legacy
marks are owned by Eagle Tech Computers Inc and may be registered. All other marks are property of
their respective owners.
www.arionlegacy.com
support.arionlegacy.com
1-951-373-3790 (US)
customerservice@arionlegacy.com
1-844-EAGLETECH (US)
1-626-956-4040 (International)
@ArionLegacy
