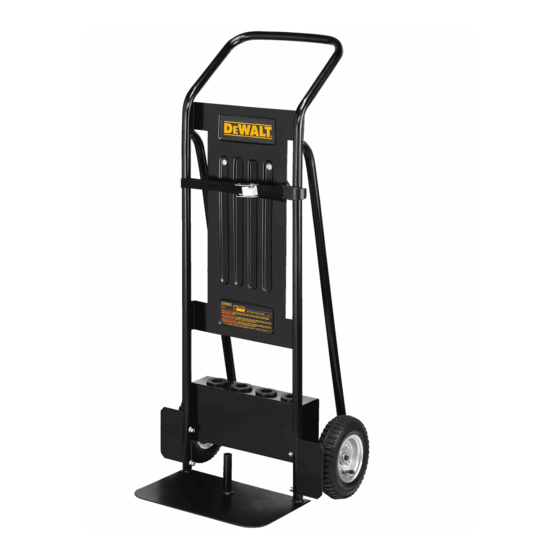

HAMMER TRUCK
D259803
FOR USE WITH D25980
WARNING: Improper operation or maintenance of this product could
result in serious injury and property damage. Read and understand
all warnings and operating instructions in the pavement breaker's
instruction manual before operating or performing maintenance on this
equipment.
WARNING: Turn off the pavement breaker and unplug from
the power source before making any adjustments or removing or
installing attachments or accessories.
CONTENTS (Fig. 1)
A. Handle
B. Strap
C. 1" (25.4 mm) chisel bit (1)
D. 3" (76.2 mm) chisel bit (1)
E. 1" (25.4 mm) bull point chisel bits (1)
F. Max load 400 lbs. (180 kg.) warning label
G. Handle hardware: 2 bolts, 2 nuts, 2 curved washers
H. Base plate hardware: 2 bolts, 2 nuts, 4 flat washers
I. Wrenches (2)
ASSEMBLY (Fig. 1–3)
Handle
Align the tubes on the handle (A) with the tubes on the hammer
truck body. Firmly push handle down to align holes. Using the wrench
supplied, secure with handle hardware (G).
Base Plate
Unfold the base plate. Using the wrench supplied, install the base plate
hardware (H). Secure the base plate by tightening all four bolts (H, J).
Usage (Fig. 5–7)
1. Remove hook (K).
2. Place pavement breaker (L) onto hammer truck.
NOTE: If bit is attached, place bit in the base plate groove (M). If
the bit is not attached, pull up on knob (N), move base plate peg
(O) into the center position and release knob. Place pavement
breaker on base plate peg.
3. Replace hook (K). Adjust the strap (B) to the desired height by
moving the hook (K) and loop (P) up and down.
4. Secure pavement breaker to hammer truck by tightening strap
(B).
5. Wrap power cord around the quick-release cord wrap levers (Q).
QUICK-RELEASE CORD WRAP (FIG. 7)
Pull one or both of the quick-release cord wrap levers (Q) and rotate
the levers to release the cord wrap.
Transporting
WARNING: Risk of unsafe operation. Ensure proper footing and use
caution when rolling hammer truck so it does not tip or cause loss of
balance.
WARNING: Risk of unsafe operation. Do not exceed load limit
of 400 lbs. (180 kg). Personal injury may result. Refer to the warning
label (Fig. 1, F).
CAUTION: Risk of unsafe operation. Do not transport unsecured tool.
Personal injury may result.
1. With pavement breaker (O) secured, grasp handle (A) and slowly
tilt hammer truck back so it can be rolled on the tires.
2. When location is reached, slowly lower hammer truck to rest on
base plate.
