Installation Instructions

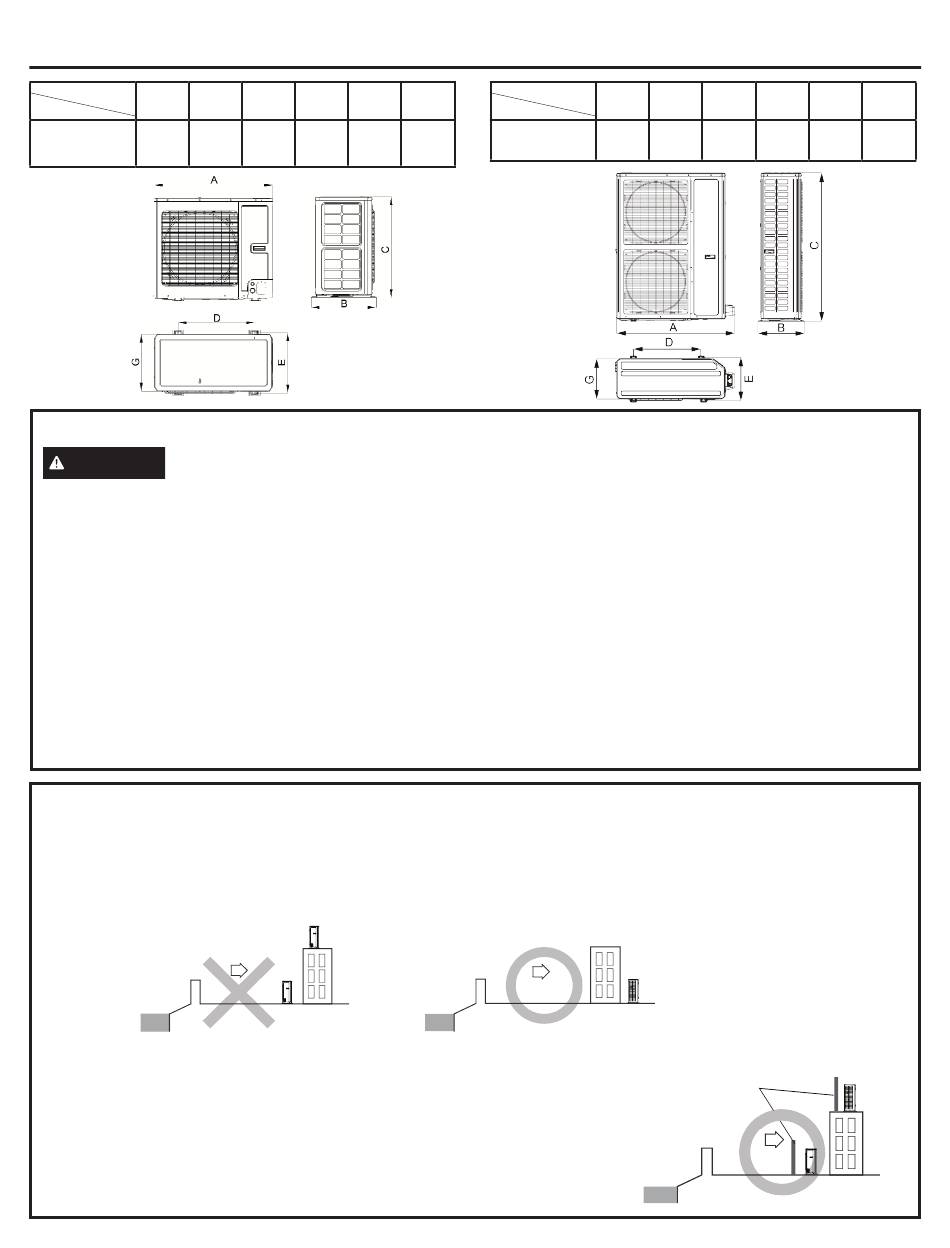

Dimensions A B
Model
AUH2436ZGDA 37 20-7/8
(940) (530)
Unit: in(mm)

Installation Location

WARNING
1. The unit must be installed in a location strong enough to
support the weight of the unit and securely fastened to
avoid toppling.
2. Install the unit in a location where the inclination is less
than 5°.
3. DO NOT install the unit in a location with direct sunlight.
4. DO NOT install the unit where combustible gas leakage
may occur.
Select a location pursuant to the following conditions:
• Noise and air flow produced by the outdoor unit will not
disturb neighbors
• The location is away from animals and plants. If not,
please add safety fences to protect the unit.
SALTWATER COAST INSTALL
• The outdoor unit should be installed at least ½ mile away from the salt water, including seacoasts and inland
waterways. If the unit installed from ½ mile to 5 miles away from the salt water, including seacoasts and inland
waterways, please follow the installation instruction below.
• Install the outdoor unit in a place (such as near buildings etc.) where it can be protected from sea breeze which can
damage the outdoor unit.
Sea breeze
Sea
• If you cannot avoid installing the outdoor unit by the seashore, construct a protection wall around it to block the sea
breeze.
• A protection wall should be constructed with a solid material to block the sea
breeze. The height and the width of the wall should be 1.5 times larger than the
size of the outdoor unit. Also, allow at least 28" (700mm) between the protection
wall and the outdoor unit for air circulation to ventilate.
• Install the outdoor unit in a place where water can drain.
• If the above conditions cannot be met, contact GE Appliances for assistance.
31-5000483 Rev. 2
C D E G
32-1/4 24 19-1/8 18-1/8
(820) (610) (486) (460)
ODU
ODU
Dimensions A
Model
AUH4860ZGDA 42-3/4
(1085)
Unit: in(mm)
• The area is well-ventilated with no nearby obstacles
that could obstruct air flow.
• The location is able to support the weight and
withstand the operating vibration of the unit.
• Installation is able to be performed safely.
• The location area is free of combustible or corrosive
gas, and oil smoke.
• Unit is able to be shielded from strong wind. Strong
wind may affect the outdoor fan and lead to insuffcient
air flow volume, thus affecting performance.
• Unit is away from objects which can generate or amplify
noise during operation.
• Condensate can be safely drained from the unit.
Sea breeze
Sea
B C D E
16-7/8 53-3/4 24-1/2 15-1/2
(427) (1365) (620) (395)
ODU
Protection walls
Sea breeze
ODU
Sea
G
14-1/2
(370)
ODU
