1.a
A1

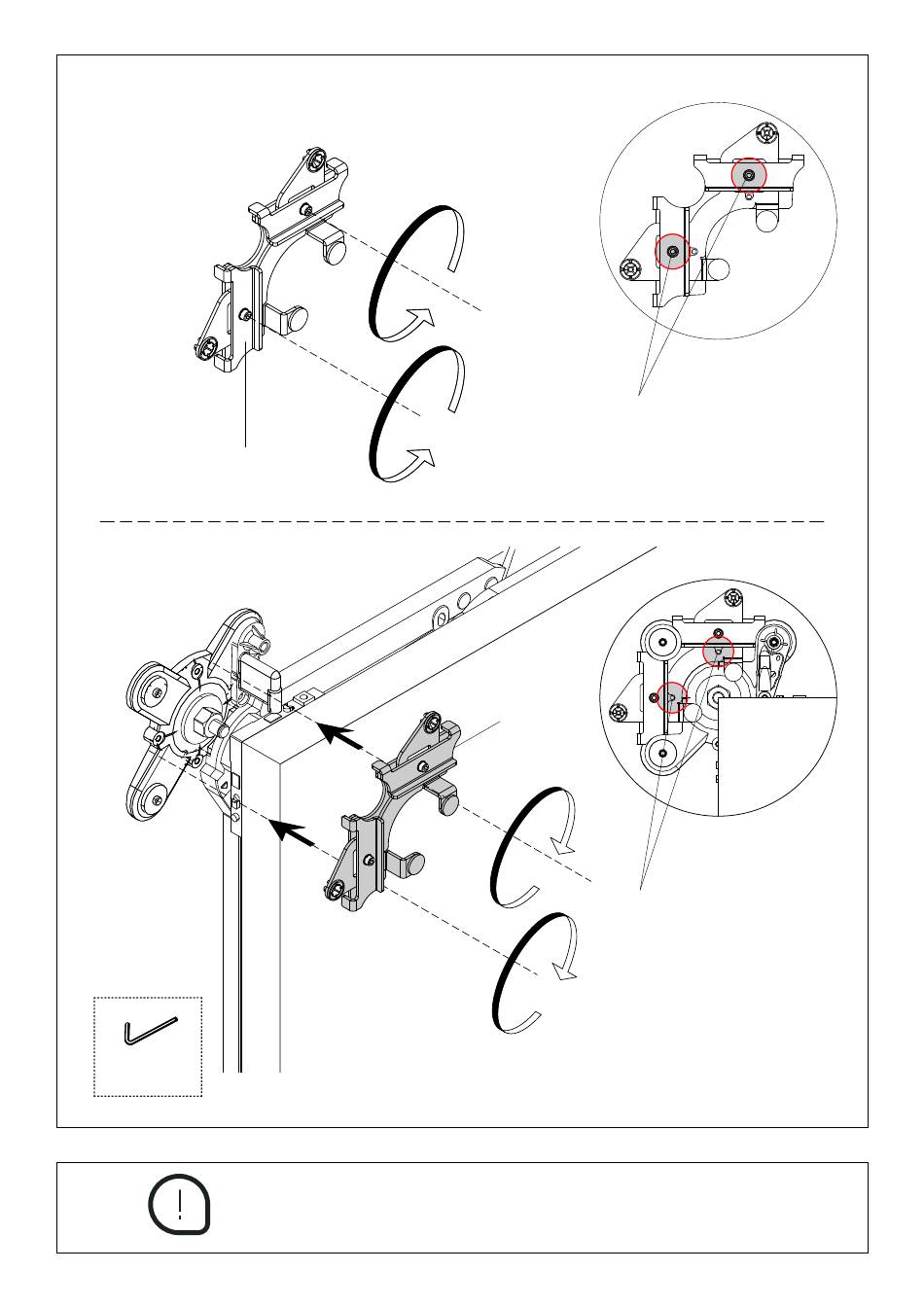

Mount A1 on Barco UniSee
No.4
Follow detail 1.a to mount all A1 brackets
Mounting detail for A1
Loosen
screws [M5x12] (2x)
A1
Tighten
screws [M6x20] (2x)
SMARTTRIM FOR BARCO UNISEE 19
