PEERLESS Mounts Smartmount ST650 Instalación Y Montaje página 8

For Flat Back Screen

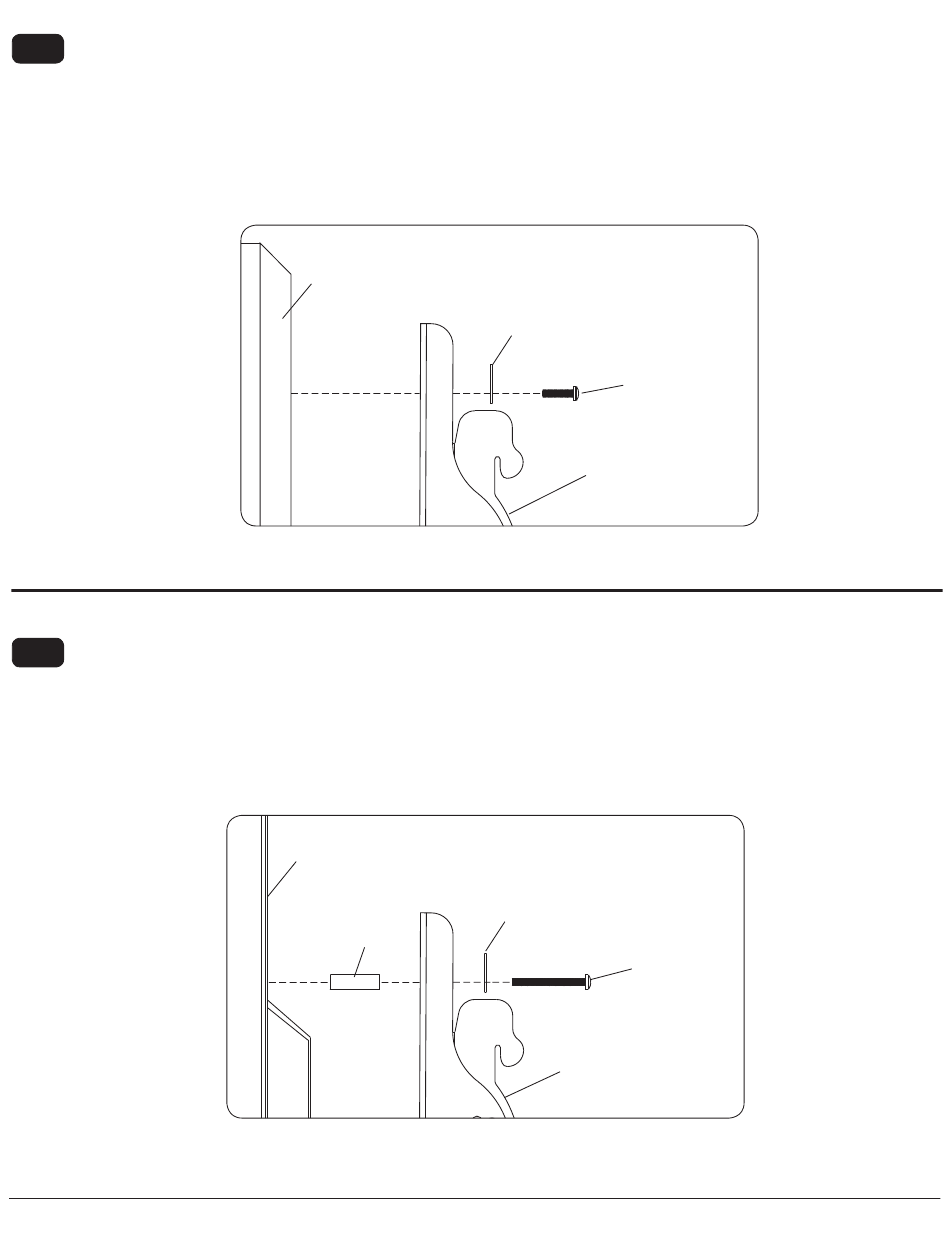

2-1
Begin with the shortest length screw, hand thread through multi-washer and tilt bracket into screen as shown
below. Screw must make at least three full turns into the mounting hole and fi t snug into place. Do not over
tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffl ed
fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
For Bump-out or Recessed Back Screen
2-2
Begin with longer length screw, hand thread through multi-washer, tilt bracket and spacer in that order into
screen as shown below. Screw must make at least three full turns into the mounting hole and fi t snug into place.
Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the
baffl ed fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
SCREEN
SCREEN
SPACER
8 of 38
fi g. 2.1
MULTI-WASHER
SCREW
TILT BRACKET
(BB or CC)
fi g. 2.2
MULTI-WASHER
SCREW
TILT BRACKET
(BB or CC)
ISSUED: 11-21-07 SHEET #: 202-9255-5 05-12-10
