Westin 30-0020 Instrucciones

AUTOMOTIVE PRODUCTS, INC.
SAFARI BAR ASSEMBLY
BARRA PARA PARRILLA SAFARI
MONTAGE DE LA BARRE PARE-
CHOCS SAFARI
30-0020 30-0025
MOUNT KIT
EQUIPO DE MONTAJE
JEU DE MONTAGE
30-1235
ITEM QTY

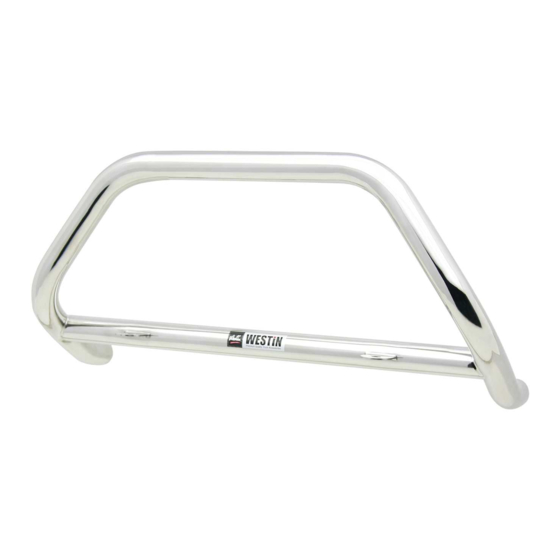

1 1 SAFARI BAR ASSEMBLY (PURCHASED SEPARATELY)
2,3 2 BRACKET, PASSENGER (2) AND DRIVER (3)
4,5 2 SUPPORT BRACE, PASSENGER (4) AND DRIVER (5)
6 2 1/2-13 X 2.00" HEX HEAD BOLT
7 4 1/2-13 X 1.00" HEX HEAD BOLT
8 6 1/2" FLAT WASHER
9 6 1/2" LOCK WASHER
10 4 1/2" EXTERNAL-INTERNAL TOOTH LOCK WASHER
11 4 1/2-13 HEX NUT
12 2 5/16-18 X 1.75" HEX HEAD BOLT
13 2 5/16" FLAT WASHER
14 2 5/16" LOCK WASHER
15 2 5/16" FLANGE LOCK NUT
16 2 14MM FLAT WASHER
17 2 14MM LOCK WASHER
18 2 10MM PUSH TYPE RETAINER
1 1 BARRA PARA PARRILLA SAFARI (SE COMPRA SEPARADO)
2,3 2 SOPORTE, ACOMPAÑANTE (2) Y CONDUCTOR (3)
4,5 2 PIEZA DE SUJECIÓN DEL SOPORTE, ACOMPAÑANTE (4) Y CONDUCTOR (5)
6 2 PERNOS CON CABEZA HEXAGONAL DE 1/2-13 X 2,00"
7 4 PERNOS CON CABEZA HEXAGONAL DE 1/2-13 X 1,00"
8 6 ARANDELAS PLANAS DE 1/2"
9 6 ARANDELAS DE PRESIÓN DE 1/2"
10 4 ARANDELAS DE PRESIÓN DE DENTADO INTERIOR-EXTERIOR DE 1/2"
11 4 TUERCAS HEXAGONALES DE 1/2-13
12 2 PERNOS CON CABEZA HEXAGONAL DE 5/16-18 x 1,75["
13 2 ARANDELAS PLANAS DE 5/16"
14 2 ARANDELAS DE PRESIÓN DE 5/16"
15 2 TUERCAS DE PRESIÓN DE 5/16" PARA BRIDAS
16 2 ARANDELAS PLANAS DE 14MM
17 2 ARANDELAS DE PRESIÓN DE 14MM
18 2 RETENES DE 10 MM A PRESIÓN
1 1 MONTAGE DE LA BARRE PARE-CHOCS SAFARI (ACHETE SEPAREMENT)
2,3 2 SUPPORTS, PASSAGER
4,5 2 RENFORTS POUR SUPPORTS, PASSAGER
6 2 BOULON A TETE HEXAGONALE DE 1/2-13 X 2,00 PO
7 4 BOULON A TETE HEXAGONALE DE 1/2-13 X 1,00 PO
8 6 RONDELLE PLATE 1/2 PO
9 6 RONDELLE A FREIN DE 1/2 PO
10 4 RONDELLE A FREIN A DENTS EXTERIEURES-INTERIEURES,1/2 PO
11 4 ECROU HEXAGONAL 1/2-13
12 2 BOULON A TETE HEXAGONALE DE 5/16-18 X 1,75 PO
13 2 RONDELLE PLATE 5/16 PO
14 2 RONDELLE A FREIN DE 5/16 PO
15 2 ECROU A FREIN DE COUPLE 5/16 po
16 2 RONDELLE PLATE 14MM
17 2 RONDELLE A FREIN DE 14MM
18 2 PUNAISE 10MM
STEP 1. Remove the contents from box and check for damage. Verify all parts are present. Read instructions completely before beginning.
.
STEP 2 Determine passenger and driver brackets.
.
STEP 3 Remove (16) push type retainers and (2) 6mm bolts from lower splash shield. Remove plastic splash shield to gain access to mounting locations.
STEP 4. Locate (4) 14mm holes in lower radiator support. Attach brackets using 1/2" and 5/16" fasteners as shown. Leave loose.
CAUTION:
Wheels must be supported to support sub-frame to the unibody to avoid misalignment for re-attachment.
STEP 5. Remove the 14mm under carriage bolt and attach brace using existing 14mm bolt and supplied 14mm lock washer and flat washer per side.
Repeat for opposite side.
INSTRUCTIONS-INSTRUCCIONES-CONSIGNES
APPLICATION: 2002-06 HONDA CRV
APLICACIÓN: HONDA CRV, MOD. 2002-06
APPLICATION: HONDA CRV 2002-06
1
CONTENTS - CONTENIDO
(2) ET CONDUCTEUR
SEE FIGURE 1.
- CONTENU
(3)
(2) ET CONDUCTEUR (3)
WO:
4
2
TOOLS - HERRAMIENTA
3/4" SOCKET
3/4" WRENCH
1/2" SOCKET
1/2" WRENCH
10MM SOCKET
17MM SOCKET
RATCHET
SMALL FLAT SCREWDRIVER
TORQUE WRENCH
UTILITY KNIFE
DADO DE 3/4"
LLAVE DE TUERCAS DE 3/4"
DADO DE 1/2"
LLAVE DE TUERCAS DE 1/2"
DADO DE 10MM
DADO DE 17MM
MANERAL
DESTORNILLADOR DE PUNTA PLANA PEQUEÑO
LLAVE DE TORQUE
NAVAJA
DOUILLE 3/4 PO
CLE 3/4 PO
DOUILLE 1/2 PO
CLE 1/2 PO
DOUILLE 10MM
DOUILLE 17MM
CLIQUET
PETIT TOURNEVIS A BOUT PLAT
LLAVE DE TORQUE
COUTEAU
75-0355 REVISION B 12/12/07
5
3
- OUTILS
