STEP 5 - Option 1: Install on a wood stud* wall

You'll need
B1 (4)
Wall mount
B3 (4)
Any drywall covering the wall must not exceed 5/8 in. (16 mm).
Note:

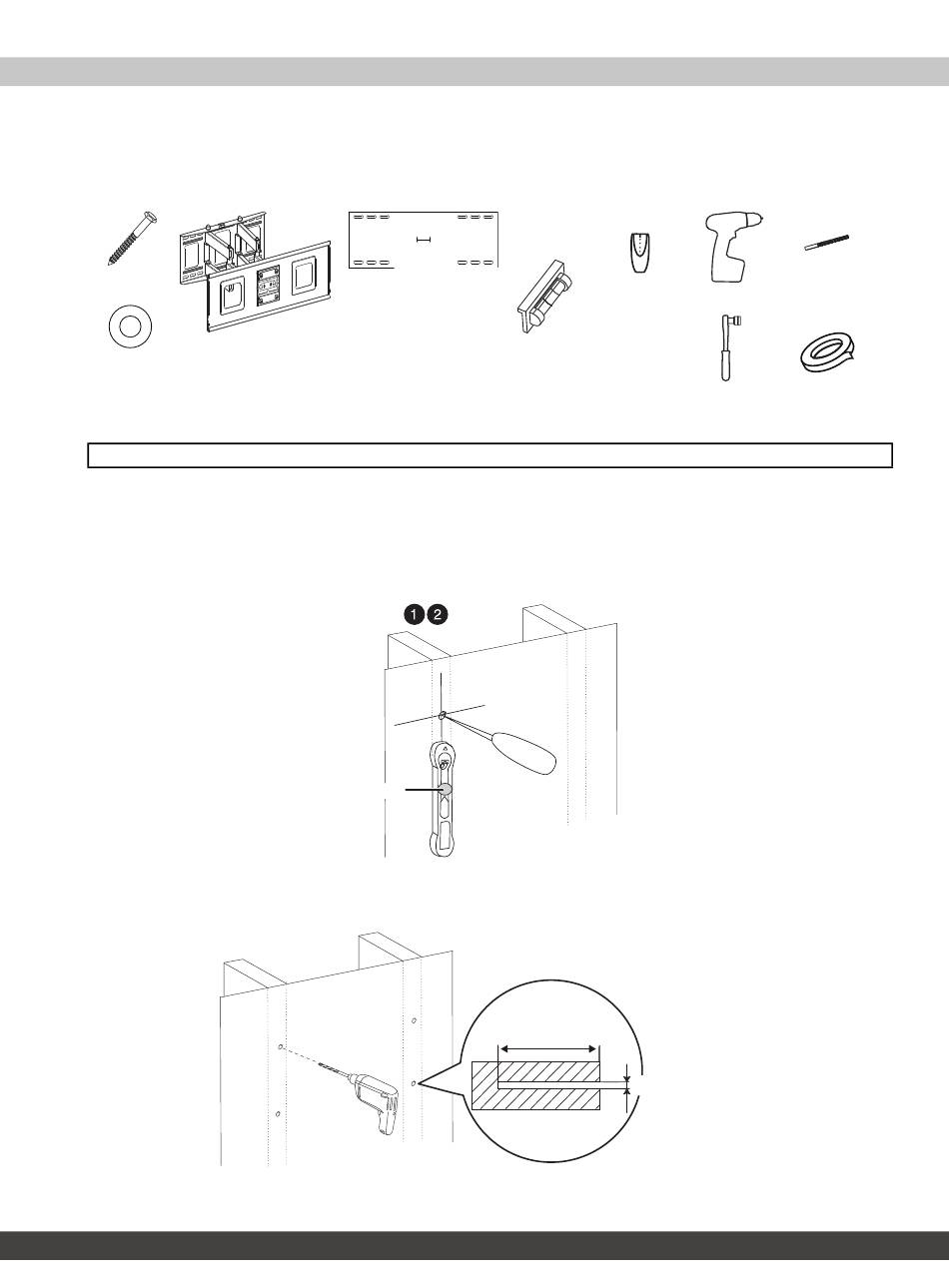

1 Locate the stud. Verify the center of the stud with an edge-to-edge stud finder.
2 Align the center of the wall plate template at the height (a + b) you determined in the previous step, make sure that the
template is level, then tape it to the wall.
* Minimum wood stud size: common 2 × 4 in. (51 × 102 mm) nominal 11/2 × 31/2 in. (38 × 89 mm).
3 Drill four pilot holes through the template to a depth of 2.4 in. (60 mm) using a 3/16 in. (5 mm) diameter drill bit, then
remove the template.
Wall plate template
* Minimum horizontal spacing between fasteners cannot be less than 16 in. (406 mm).
Align the center of the
template with the height
mark (a+b) you made in
STEP 4.
Level
www.bestbuy.com/bestbuyessentials
Edge-to edge
stud finder
Magnetic removable bubble
level
2.4 in. (60 mm)
3/16 in. (5 mm)
3/16 in. wood
drill bit
Drill
Tape
Socket wrench
