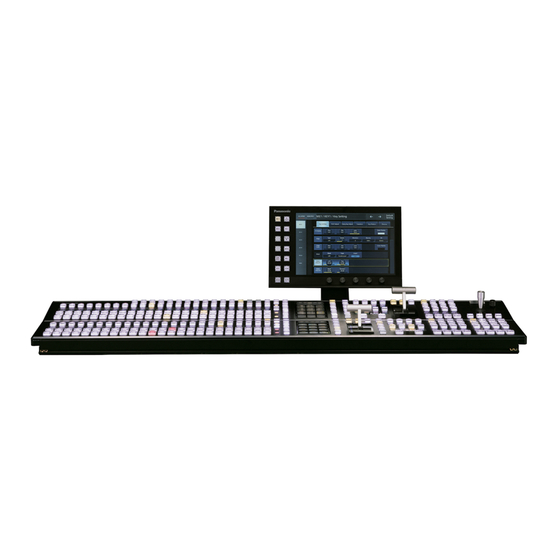

Panasonic AV-HS6000 Guia De Inicio Rapido

ENGLISH ENGLISH
Linking the Unit to the AV-HS6000
The following notifications are supported when the unit (V2.00-00-0.00 or later) is linked to the AV-HS6000.
⿟ Tally notifications from the switcher
⿟ Notifications for [PREVIEW] button operation triggers
Switcher connection settings are configured in the newly added [SWITCHER LINK] menu.
For details on the menu, see the following.
NOTE
⿟ The following plug-in software must be installed on the AV-HS6000 to link with it.
⿟ External_Control: For tally notifications
⿟ Macro_Trigger: For [PREVIEW] button linking
For details on configuring the plug-in software, refer to the Operating Guide for the AV-HS6000.
47 SWITCHER LINK
Press the [PREVIEW] button in the ROP panel to output a preview signal from the preview connector to the switcher.
This menu appears for cameras for which the connection setting in the [CONNECT SETTING] menu is not set to "Serial" or "LAN".
Item
SW' IP
RECEIVE UDP PORT
UPLOAD (push)
SWITCHER LINK
TALLY RECEIVE
PREVIEW
TALLY ACTION MATERIAL
TALLY ACTION CAM No.
W0321AM0 -PS
Setting value
192.168.0.5 Sets the IP address of the switcher.
65535 Sets the port number of the unit that will receive communications from the
switcher.
- When you press the menu operation dial, the configured IP address and port
number will be applied to the unit.
OFF Enables the link with the switcher when set to "ON".
ON
OFF Enables reception of tally notifications when set to "ON".
ON
OFF Sends notification of [PREVIEW] button operations to the switcher when set
ON to "ON".
SDI_1 to SDI_32, Selects the material.
DVI_1, DVI_2 For details, refer to the Operating Guide for the AV-HS6000.
NON, Sets the camera number to which the tally notification will be sent for
CAM1 to CAM100 notifications of the material information configured in [TALLY ACTION
MATERIAL].
⿟ Be aware that if multiple instances of [TALLY ACTION MATERIAL] are
assigned to the same camera number, the tally indication will blink due to
the existence of lit and unlit material.
⿟ Tally control will be performed for the camera that is connected to the unit
at that moment. Tally control will not be performed for cameras that are not
connected.
AK-HRP1015G
___ indicates the factory settings.
Setting details
DVQQ1096ZA
