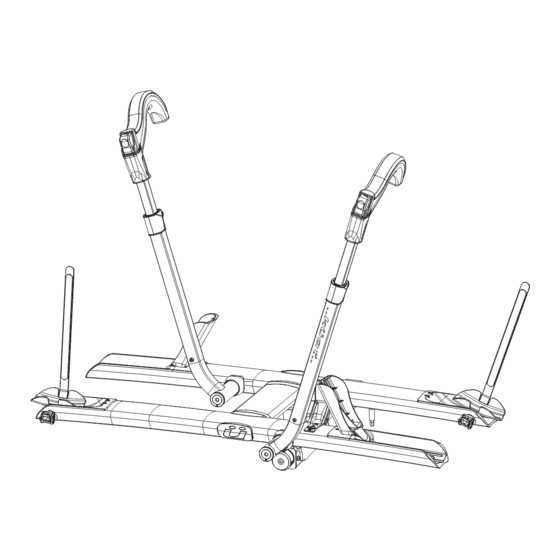

Resumen de contenidos para Kuat Racks SHERPA 2.0
- Página 1 SHERPA ™ RACK PACKAGING IS AN ASSEMBLY FIXTURE. READ UNBOXING INSTRUCTIONS TO EASE ASSEMBLY.
- Página 2 Parts: Rear Tray Mount Inner Tray Assembly Outer Tray Assembly Pivot Handle Lock Cable Pivot Assembly Front Tire Safety Strap 2x M10x450 Bolt with lock washer Included in the bag: 2x M10 Washers M10x95 Bolt M8x45 Bolt M10 Nut Lock Washer 6mm Hex Key Hitch Pin/8mm Hex Key Hitch Pin Lock...
- Página 3 Unpacking and assembly instructions. STEP 1. Remove parts box and bracing. Open parts box. STEP 2. Remove trays. DO NOT remove hitch assembly.
- Página 4 STEP 3. Place trays into build position. Outer Tray Assembly Inner Tray Assembly STEP 4. x1 Rear Assemble trays. Tray Mount Parts Needed: x2 M10x450 Bolt and Lock Washer...
- Página 5 NOTE: Tighten to 15ft-lbs(20Nm), alter nating bolts between each tu rn . Excessive tighening will damage the rack. AVISO: Apriete a 20Nm, a lternando entre l os p ernos d e cada vuelta. Tighening excesivo puede dañar el bastidor. AVIS: Serrer à...
- Página 6 STEP 6. Install pivot handle. Parts Needed: x1 Pivot Handle/Pedal x1 M8x22 Bolt x1 M8 Lock Washer M8x45 Bolt 5/8” 15m m NOTE: for loosening, r e-tighten if needed. Max 15ft-lbs AV ISO: Después del p rimer uso, compruebe l as p rincipales p er nos AV IS: plateau pour descellement, r esser re r si nécessai...
- Página 7 Installation instructions. STEP 1. Install into hitch receiver. STEP 2. Attach the locking hitch pin. Turn the knob to tighten the hitch cam.
- Página 8 Loading bicycles. STEP 1. Pivot the tray assembly down, using the pivot handle to release the tray. STEP 2. Open the front tire cradles. NOTE: Keep front tire cradles folded down when not in use. STEP 3. Fold out the front tire hooks. NOTE: Keep front tire hooks folded in when not in use to reduce the chance of damage...
- Página 9 STEP 4. Position the front tire hook against the tire and as close to the fork as possible.
- Página 10 STEP 5. Ensure rear bicycle tire is properly seated in the rear cradle. Feed strap through ratchet pawl and pull strap down to tighten. NOTE: When loading bicycles with 20”-24” front tires an adapter must be used. Please contact Kuat Racks directly by calling toll free 1(877)822-5828, or by emailing us at info@kuatracks.com and a 20”-24”...
- Página 11 NOTE: Fr ont Tir e Safety Strap must be used when driving over r ough terrain or with bicycles 35 lbs or heavi AVISO: Fr ente Corr ea de seguridad del neumático debe ser utilizado cuando se s á AVIS : Fr ont Tir e Sangle de sécurité...
- Página 12 Additional Notes. Locking bicycles. Parts Needed: Loop the lock cable around the frame(s) and insert the latch tip into the lock on the outside x1 Lock Cable tray. NOTE: With the tire hooks folded down, the tire hook next to the pivot handle can be used to gain leverage over the pivot handle making it easier to disengage the pivot.
- Página 13 NOTE: The rack can be tilted away providing additonal clearance for trunk or rear hatch access. AVIS: Le rack peut Œt r e inclinØ loin fou rnissant jeu supplØment pour le t ronc ou l’accŁs de hayon. AVISO: bastidor puede inclinar distancia propo rcionando despacho additonal para el tronco o el acceso...
- Página 14 • Frente Correa de seguridad del neumático debe ser utilizado cuando se conduce por terrenos acci- dentados o con las bicicletas 15.9 kgs o más pesados Si tiene usted alguna pregunta o problema con su portabicicletas, por favor contacte a Kuat Racks directamente llamando a nuestro número gratuito 1(877)822-KUAT, o por e-mail: info@kuatracks.
- Página 15 Küat Racks Limited Lifetime Warranty Küat honors the warranty on all Küat brand products for original owners of the product. Warranty is not transferable. If a Küat rack that is covered by the terms of this warranty and is determined by Küat, to be defective, Küat will repair or replace the defective parts.
- Página 16 kuatracks.com info@kuatracks.com 1.877.822.5828...
