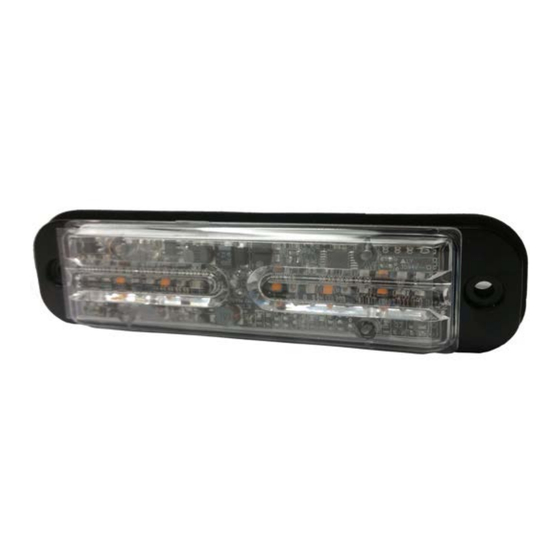

Available in various color combinations, the ED3702
Directional LED is surface mount, Tri-Color warning light
is ideal for a wide variety of auxiliary warning applications.
Featuring a linear optic, 18 high intensity LEDS (6
per color). 24 flash patterns in multiple color modes,
synchronization capability and an aluminum housing with
encapsulated electronics, the ED3702 is an extremely
bright versatile and robust light. Each LED color can be
controlled independently.
!
WARNING!
Failure to install or use this product according to manufacturers recommendations may result in property damage, serious
injury, and/or death to those you are seeking to protect!
Do not install and/or operate this safety product unless you have read and understand the safety
information contained in this manual.
1.
Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are
essential to ensure the safety of you and those you are seeking to protect.
2.
Exercise caution when working with live electrical connections.
3.
This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high
current arcing, which can cause personal injury and/or severe vehicle damage, including fire.
4.
Proper placement and installation are vital to the performance of this warning device. Install this product so that output
performance of the system is maximized and the controls are placed within convenient reach of the operator so that s/he
can operate the system without losing eye contact with the roadway.
5.
Do not install this product or route any wires in the deployment area of an air bag. Equipment mounted or located in an
air bag deployment area may reduce the effectiveness of the air bag or become a projectile that could cause serious per-
sonal injury or death. Refer to the vehicle owner's manual for the air bag deployment area. It is the responsibility of the
user/operator to determine a suitable mounting location ensuring the safety of all passengers inside the vehicle particu-
larly avoiding areas of potential head impact.
6.
It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In use,
the vehicle operator should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open
trunks or compartment doors), people, vehicles or other obstructions.
7.
The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning signal.
Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an
intersection, driving against traffic, responding at a high rate of speed, or walking on or around traffic lanes.
8.
This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying
all laws regarding warning signal devices. Therefore, the user should check all applicable city, state, and federal laws
and regulations. The manufacturer assumes no liability for any loss resulting from the use of this warning device.
Installation and Operation Instructions
Installation and Operation Instructions
ED3702 Tri-Color Light
xxxxxxx
Page 1 of 8

Publicidad

Tabla de contenido
loading

Resumen de contenidos para Ecco ED3702

  • Página 1 Installation and Operation Instructions ED3702 Tri-Color Light xxxxxxx Available in various color combinations, the ED3702 Directional LED is surface mount, Tri-Color warning light is ideal for a wide variety of auxiliary warning applications. Featuring a linear optic, 18 high intensity LEDS (6 per color).
  • Página 2 CONTENTS: SPECIFICATIONS: Light Head Input Voltage 10-30VDC Multi-Mount Base: Work Current 0.8A Max @ DC12V Includes- 2- M4x25 Sheet metal screws Important! This unit is a safety device and it must be connected to its own separate, fused power point to assure its continued operation should any other electrical accessory fail.
  • Página 3 Page 3 of 8...
  • Página 4 Page 4 of 8...
  • Página 5 Page 5 of 8...
  • Página 6 Page 6 of 8...
  • Página 7 Page 7 of 8...
  • Página 8: Customer Service

    Troubleshooting The ED3702 Tri-Color series has been factory tested and approved. If the functions of the device fail, please check the following: 1. After connecting with the power supply, be sure that the power source end is joined correctly. Make sure there is not a short circuit.
  • Página 9: Luz Ed3702 De Tres Colores

    Luz ED3702 de tres colores xxxxxxx Disponible en diversas combinaciones de colores, la luz LED direccional ED3702 se ensambla sobre la superficie. Su luz de advertencia de tres colores es ideal para una amplia variedad de aplicaciones de advertencia auxiliares.
  • Página 10: Especificaciones

    ÍNDICE: ESPECIFICACIONES: Cabezal de luz Tensión de entrada 10-30VCC Base de ensamblaje múltiple: Corriente de trabajo 0.8A Máx a 12VCC Incluye- 2- Tornillos M4x25 para láminas de metal ¡Importante! Esta unidad es un dispositivo de seguridad y debe estar conectada a su propia toma de alimentación fundida y separada para asegurar su operación continua si cualquier otro accesorio eléctrico fallara.
  • Página 11: Localización De Fallas

    Localización de fallas Las series ED3702 han sido probadas en fábrica y aprobadas. Si las funciones del dispositivo fallan, verifique lo siguiente: 1. Luego de conectar la alimentación, asegúrese de que el extremo de la fuente de energía esté bien conectado. Asegúrese de que no haya un cortocircuito.
  • Página 12 24 configurations de clignotement en modes de couleurs multiples, une capacité de synchronisation et un boîtier en aluminium avec électronique encapsulée, l’ED3702 est une lampe polyvalente et robuste à éclairage extrêmement lumineux. Chaque couleur de DEL peut être contrôlée indépendamment.
  • Página 13: Environnement De Fonctionnement

    CONTENU : SPÉCIFICATIONS : Tête d’éclairage Tension d'entrée 10-30VDC Montage multi-positions : Courant utile 0,8A Max @ DC12V Comprend- 2- M4x25 vis à tôle Important ! Cet appareil est un dispositif de sécurité et il doit être connecté à son propre point d'alimentation à fusible, pour assurer son fonctionnement continu en cas de panne de tout autre accessoire électrique.
  • Página 14 Dépannage La série ED3702 a été testée et approuvée en usine. Si les fonctions de l’appareil sont défectueuses, veuillez vérifier les choses suivantes : 1. Après raccordement à l’alimentation électrique, assurez-vous que le raccordement est correct du côté de la source d’alimentation.
