18 volt
lItHIuM-IoN

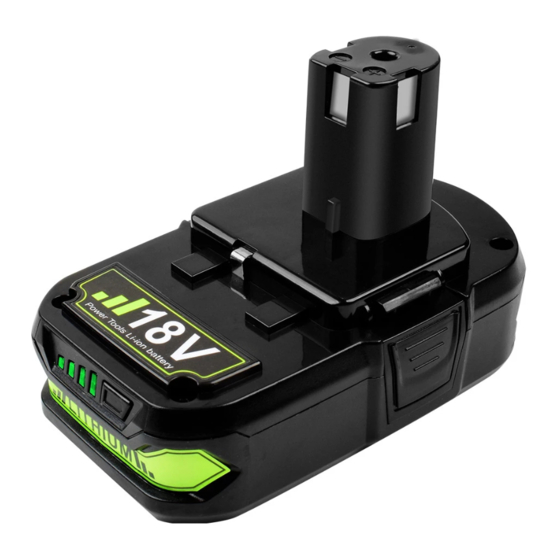

Battery packs
p104 (130429001,
130429002, 130155001)
p103 (130429004)
Always mention the above model
numbers when communicating with
us regarding battery pack.
Use battery pack for Ryobi cordless
products only. Refer to the Operator's Manual provided
with product.
safety rules
WarNING!
read aNd uNderstaNd all INstructIoNs.
Failure to follow all instructions listed below, may result
in electric shock, fire and/or serious personal injury.
 Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
when not using your battery tool or when changing
accessories. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury.
 do not place battery tools or their batteries near fire
or heat. This will reduce the risk of explosion and possibly
injury.
 do not crush, drop or damage battery pack. do not
use a battery pack or charger that has been dropped
or received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or damaged
battery immediately.
 Batteries can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of
serious personal injury, never use any cordless product
in the presence of open flame. An exploded battery can
propel debris and chemicals. If exposed, flush with water
immediately.
 do not charge battery tool in a damp or wet location.
Following this rule will reduce the risk of electric shock.
 r ecommended chargers:
Battery pack
(p104) 130429001, 130429002,
130155001
(p103) 130429004
P104
P103
cHarGer (p113)
140501001
140501005
 For best results, your battery tool should be charged in
a location where the temperature is more than 50°F but
less than 100°F. To reduce the risk of serious personal
injury, do not store outside or in vehicles.
 under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in contact
with your skin, wash immediately with soap and water,
then neutralize with lemon juice or vinegar. If liquid
gets into your eyes, flush them with clean water for
at least 10 minutes, then seek immediate medical
attention. Following this rule will reduce the risk of serious
personal injury.
 save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also
to prevent misuse of the product and possible injury.
operatIoN
fuel GauGe (P104 ONLY)
See Figure 1.
To display the amount of charge left in the battery, press and
hold the fuel gauge button.
 If the charge indicator light glows green, the battery pack
is fully charged.
 If it glows yellow, it has a usable charge remaining but
will soon require recharging.
 If it glows red, the battery requires recharging as indicated
by the fuel gauge symbols on top of the battery.
CHARGE
INDICATOR
LIGHT
FUEL
GAUGE
BUTTON
GREEN =
USABLE CHARGE
FULL CHARGE
REMAINS BUT WILL
SOON REQUIRE
YELLOW =
RED =
REQUIRES
RECHARGING
RECHARGING
P104
Fig. 1
