Wiring
1H/1C Heat Pump (no auxiliary heat)
Rc Power [1]
R [R+Rc joined by jumper]
O/B Changeover valve [4]
Y Compressor relay
G
Fan relay
C
24VAC common
S1
Optional outdoor/remote sensor
2H/1C Heat Pump (with auxiliary heat)
L Equipment monitor [5]
Aux/E Auxiliary/Emergency heat relay (Heat 2)
Rc Power [1]
R [R+Rc joined by jumper]
O/B Changeover valve [4]
Y Compressor relay
G Fan relay
C 24VAC common
S1 Optional outdoor/remote sensor
See [notes] below
[1] Power supply. Provide disconnect means and overload protection as required.
[4] O/B set to control as either O or B in installer setup.
[5] Heat pump reset (powered continuously when thermostat is set to Em. Heat; system monitor
when set to Heat, Cool, or Off).
NOTE: The product data sheets have more extensive wiring diagrams and is
available at customer.resideo.com.

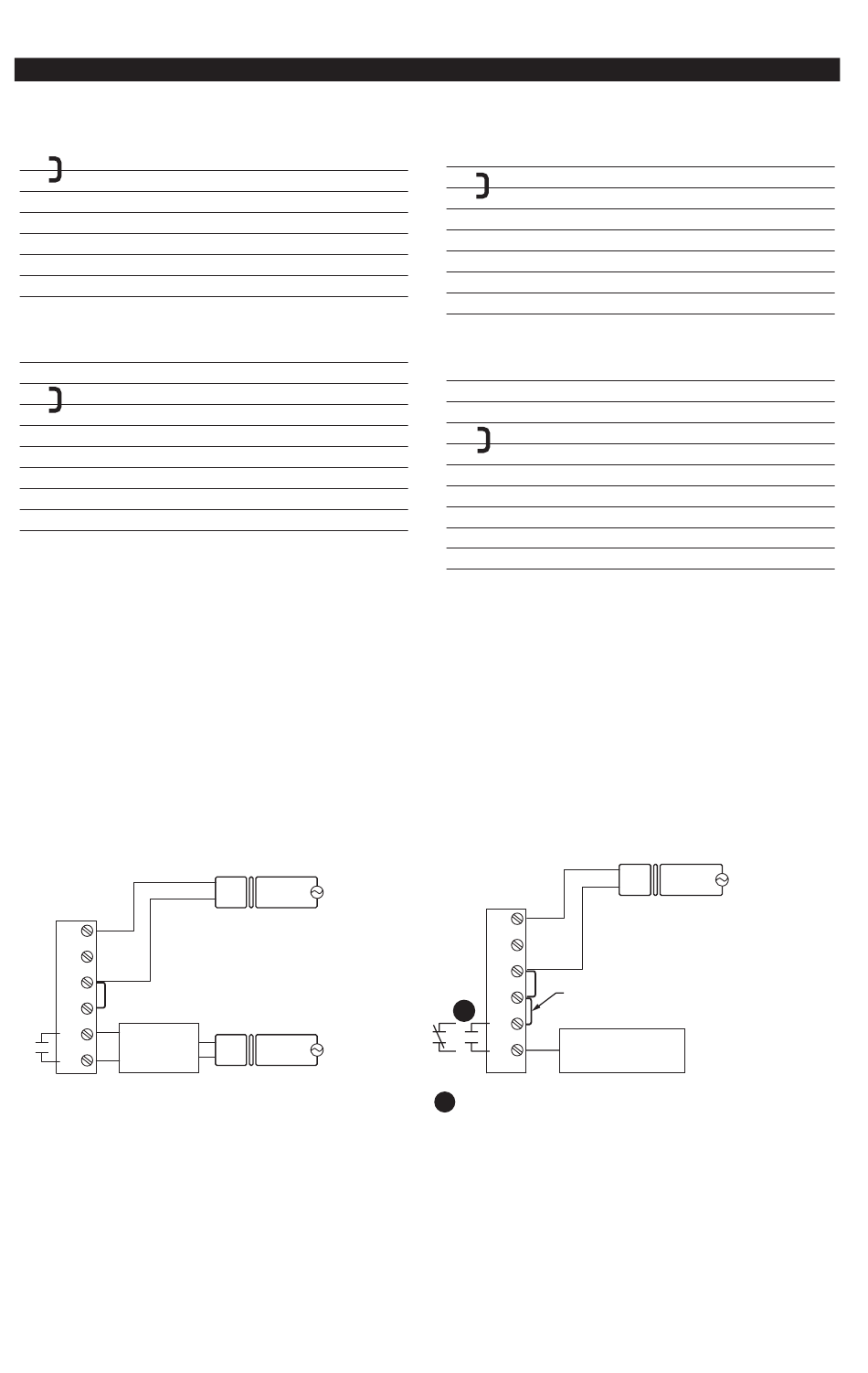

POWERED HUMIDIFIER, DEHUMIDIFIER OR VENTILATOR
THERMOSTAT
C
K
R
C
R
POWERED
U1
HUMIDIFIER,
DEHUMIDIFIER
U1
OR VENTILATOR
Wiring guide—heat pump systems
SYSTEM
TRANSFORMER
C
24 120
VAC VAC
R
HUM, DEHUM OR
VENT TRANSFORM-
ER
24 120
VAC VAC
2H/2C Heat Pump (no auxiliary heat)
Y2 Compressor 2 relay
Rc Power [1]
R [R+Rc joined by jumper]
O/B Changeover valve [4]
Y Compressor 1 relay
G Fan relay
C 24VAC common
S1 Optional outdoor/remote sensor
3H/2C Heat Pump (with auxiliary heat)
Y2
Compressor 2 relay
L
Equipment monitor [5]
Aux/E Auxiliary/Emergency heat relay (Heat 2)
Rc
Power [1]
R [R+Rc joined by jumper]
O/B Changeover valve [4]
Y Compressor 1 relay
G Fan relay
C 24VAC common
S1 Optional outdoor/remote sensor
DEHUMIDIFICATION WITH LOW SPEED FAN
THERMOSTAT
C
K
R
C
FIELD INSTALL JUMPER
R
BETWEEN R AND U1
1
U1
OR
DEHUMIDIFICATION
U1
WITH LOW SPEED FAN
Wire the thermostat
1
for dehumidification control at the equipment. The
thermostat relay can be set to normally open or
normally closed in the thermostat installer setup.
6
SYSTEM
TRANSFORMER
C
24 120
VAC VAC
R
IAQ
relay to the low speed fan
