Keter MANOR 6x5DD Instrucciones De Montaje
Ocultar thumbs Ver también para MANOR 6x5DD:

Publicidad

Enlaces rápidos

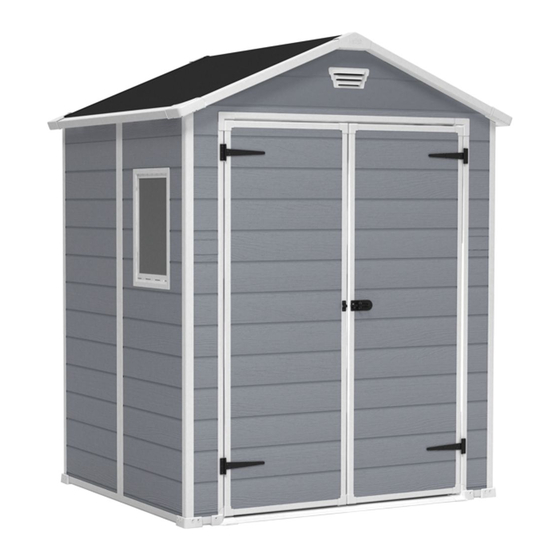

MANOR 6x5DD
ASSEMBLY INSTRUCTIONS | INSTRUCCIONES DE MONTAJE | MONTAGEANLEITUNG | CONSIGNES
DE MONTAGE | SAMLEVEJLEDNING | MONTAGE-VOORSCHRIFTEN | ISTRUZIONI D'ASSEMBLAGGIO
Thank you for your purchase of the Keter shed,
In order to activate your warranty, please enter
WARRANTY
www.keter.com, under storage buildings
ACTIVATION
category and fill in the sheds warranty
activation form.
IF THERE ARE MISSING OR BROKEN PARTS, PLEASE DO NOT RETURN THE PRODUCT TO THE STORE
Please log onto our website, or contact Customer Service at:
S'IL Y A DES PIÈCES MANQUANTES OU CASSÉES, NE RETOURNEZ PAS LE PRODUIT AU MAGASIN
Veuillez visiter notre site Internet, ou contacter notre Service Clientèle:
BITTE
BRINGEN SIE IHR PRODUKT NICHT GLEICH ZUM LADEN ZURÜCK, FALLS TEILE FEHLEN ODER DEFEKT SIND.
Bitte loggen Sie in unsere Website ein oder wenden Sie sich an unseren Kundenservice:
SI HUBIERA ALGUNA PARTE FALTANTE O DAÑADA, NO DEVUELVA EL PRODUCTO A LA TIENDA
Inicie sesión en nuestro sitio en Internet o contáctese con nuestro servicio de atención al cliente:
IN GEVAL
VAN ONTBREKENDE OF GEBROKEN ONDERDELEN NIET HET PRODUCT NAAR DE WINKEL RETOURNEREN.
Ga naar onze website of neem contact op met de Klantenservice:
IN CASO
DI PARTI MANCANTI O DANNEGGIATE, EVITARE DI RESTITUIRE IL PRODOTTO AL NEGOZIO.
Accedere al nostro sito o contattare il Servizio Clienti:
SE HOUVER
PEÇAS EM FALTA OU PARTIDAS, NÃO DEVOLVA O PRODUTO À LOJA.
Entre na nossa página de Internet ou contacte o Serviço de Clientes:
MANOR 6x5DD
2 easy steps to use a QR-code:
1. Download a FREE QR-Code
reader from your smartphone
application site.
2. Scan the QR-Code.
SKU:
17197128 | 17194151
WWW.KETER.COM
US: # 1-888-374-4262
Canada: # 1-800-661-6721
UK: # 0121-5060008
Other European Countries:
# 31-1612-28301

Publicidad

Tabla de contenido
loading

Resumen de contenidos para Keter MANOR 6x5DD

  • Página 1 SKU: MANOR 6x5DD 17197128 | 17194151 2 easy steps to use a QR-code: Thank you for your purchase of the Keter shed, In order to activate your warranty, please enter 1. Download a FREE QR-Code WARRANTY www.keter.com, under storage buildings...
  • Página 2 KLANTENSERVICE | SERVIZIO CLIENTI | ASSISTÊNCIA AO CLIENTE IMPORTANT: For assistance with assembly or to request missing parts, please log onto our web site at www.keter.com or contact Customer Service. IMPORTANT : Pour toute assistance lors du montage ou pour obtenir des pièces manquantes, veuillez visiter notre site Internet : www.keter.com ou contacter notre Service Clientèle.
  • Página 3 LEVEL THE GROUND | NIVELLEMENT DU SOL | NIVELE EL SUELO | SORGEN SIE FÜR EINE EBENE GRUNDFLÄCHE MAAK DE GROND WATERPAS | METTERE IL TERRENO A LIVELLO | NIVELAR O SOLO Clear area of stones | Remove all plants, roots and other obstacles | Rake the ground | Make ground level using a long, flat object (e.g.
  • Página 4: Tabla De Contenido

    GENERAL PARTS LIST roof parts window parts walls parts door parts floor parts FLOOR PARTS LIST (go to stage 1) c1a (x1) 164cm d1a (x1) 138cm t (x4) dsl (x1) dsr (x1) c1c (x2) 134cm c1d (x2) s26b sc15 26mm (x12) 16mm (x6) WINDOW PARTS LIST (stage 38 )
  • Página 5 WALL PARTS LIST (stage 9) c1b (x4 ) 186cm fd1b (x2) 17cm x 123cm fu1a (x1) bu1a (x1) rm (x1) h1b (x1) 165cm lm (x1) bd1a (x1) fd1b h1a (x2) 169cm x 109cm 184cm s1a (x1) fd1b 67cm x 185cm dfl (x1) 179cm ds2b (x10) s10b (x8)
  • Página 6: Floor Assembly

    FLOOR ASSEMBLY f1c (x1) Folded Black Panel Note : the floor folding line must be underneath f1c (x1)169x139 cm d1a (x1) 138cm...
  • Página 7 dsl (x1) dsr (x1) c1d (x2) 14cm...
  • Página 8: C1A (X1)

    c1a (x1) c1c (x2) t (x4) 164cm 106cm Flip the floor upsidedown...
  • Página 9: 26Mm (X12)

    s26b (x12) sc15 (x6) 26mm 16mm s26b s15b s26b s26b s15b s15b fully fit the panel inside the porfile Flip the floor upside...
  • Página 10: Wall Assembly

    CHOOSING THE WINDOW PANEL LOCATION Choose where do you want to locate the window WALL ASSEMBLY c1b (x1) w1a (x1) 187cm 67cm x 185cm...
  • Página 11: 165Cm

    bd1a (x1) s26b (X8) 169cm x 109cm 26mm Fully fit the panel inside the porfile h1b (x1) 165cm Fully fit the panel inside the porfile Outside...
  • Página 12: S1A (X1)

    c1b (x1) s26b (x7) 187cm 26mm bu1a (x1) bu1a Fully fit the panel inside the porfile h1a (x1) c1b (x1) s1a (x1) 187cm 184cm Fully fit the panel inside the porfile Outside...
  • Página 13: W1A (X3)

    w1a (x1) s26b (x5) 187cm x 68cm 26mm Fully fit the panel inside the porfile h1a (x1) w1a (x1) s13b (x2) s26b (x5) 184cm 187cm x 68cm 26mm 13mm s13b inside...
  • Página 14: S13B (X35)

    c1b (x1) s26b (x5) s13b (x2) 186cm 26mm 13mm s13b inside Fully fit the panel inside the porfile FRONT WALL & DOOR FRAME ASSEMBLY s26b (x6) fd1b (x2) 26mm 17cm x 123cm Fully fit the panel inside the porfile...
  • Página 15: Fu1A (X1)

    lm (x1) rm (x1) Right Left s26b (x4) fu1a (x1) 26mm fu1a...
  • Página 16: Dt (X2)

    ds2b (x2) 12mm dfl (x1) 179cm dfr (x1) 179cm This hole faces outside and down ds2b ds2b (x8) 12mm dt (x2)
  • Página 17 s10b (x8) 12mm Fully fit the panel inside the porfile s26b (x18) 26mm s26b s26b...
  • Página 18: Roof Assembly

    s26b (x12) 26mm Fully fit the panel inside the porfile ROOF ASSEMBLY r1d (x1) folded e1b (x2) 133mm e1a (x4) 87mm rc (x4) Note: The roof folding line, and the “This side Down” label, must be seen at this stage.
  • Página 19: S26B (X50)

    s26b (x8) 26mm Fully fit the panel inside the porfile s26b...
  • Página 20 s26b (x22) 26mm Fully fit the panel inside the porfile s26b roof assembly...
