Steren CCTV-117 Manual De Instrucciones

Before using your new Electronic insect killer, please read
Before using your new Color
this instruction manual to prevent any damage. Put it away
system, please read this instruction manual to prevent any
in a safe place for future references.
damage. Put it away in a safe place for future references.
• Only use the included AC adaptor. Using any other adaptor may cause
damage to the camera.
• When disconnecting the adaptor from the home power source wall
contact, make sure to disconnect it by the plug and not pulling from the cable.
• Make sure to never touch the adaptor with wet hands.
-Horizontal resolution:
-Sensor:
-Angle of vision:
-Minimum lux:
-Operating temperature:
-RH:
-Gamma correction:
1. BNC video plug.
2. Inverted power supply plug.
3. Lens.
1. Place the camera where you need to monitor.
2. Plug the AC power adaptor to an AC household outlet.
3. Insert the cable from the AC adaptor into the camera's power input plug.
4. With a cable BNC video output BNC connect the camera to the
inputs A / V monitor with a BNC connector or connect the BNC
cable of the camera to the input of a DVR.

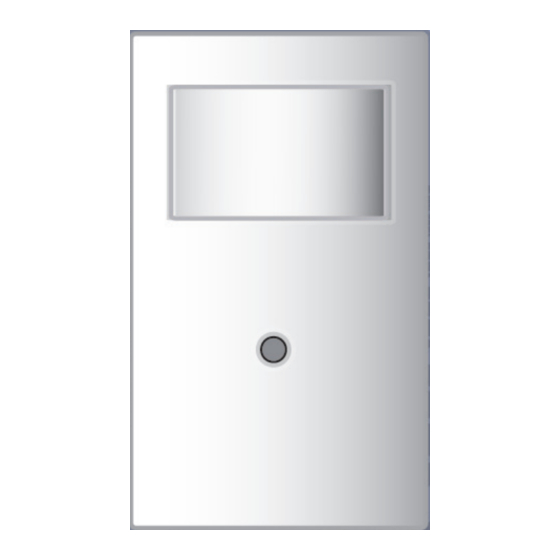

R motion detector camera
IMPORTANT
HIGHLIGHTS
420 lines
Sharp CCD ¼"
45°
0.3Lux
0°C ~ 50°C
85%
48dB
CONTROLS
2
3
1
INTRUCTIONS
5. Select the correct video
input on your video device.
(See your device's instruction
manual)
6. Now the camera is ready to
use it.
SPECIFICATIONS
Input: 12 V - - - 500mA
Power adapter
Input: 100-240V ~ 50-60Hz 7W
Output: 12V - - - 500mA
Before using your new Electronic insect killer, please read
Product design and specifications are subject to change
this instruction manual to prevent any damage. Put it away
without previous notice.
Product: Color pir motion detector camera
system
Part number: CCTV-117
Brand: Steren
This Steren product is warranted under normal usage against defects in
workmanship and materials to the original purchaser for one year from the
date of purchase.
1.- This warranty card with all the required information, invoice or
purchase ticket, product box or package, and product, must be
presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free
of charge.
3.- The repairing time will not exceed 30 natural days, from the day the
claim was received.
4.- Steren sell parts, components, consumables and accessories to
customer, as well as warranty service, at any of the addresses mentioned
later.
THIS WARRANTY IS VOID IN THE NEXT CASES:
If the product has been damaged by an accident, acts of God,
mishandling, leaky batteries, failure to follow enclosed instructions,
improper repair by unauthorized personnel, improper safe keeping,
among others.
a) The consumer can also claim the warranty service in the purchase
establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice
or purchase ticket.
RETAILER INFORMATION
Name of the retailer
Address
Product
Brand
Part number
Serial number
Date of delivery
In case your product fails or have questions, please contact your
nearest dealer. If you are in Mexico, please give a call to our Call
Center. Call Center
01 800 500 9000
IN3
CH2 CH4
N VIDEO IN
VGA
IN2 IN2 2
USB
12
MOUSE AUDIO IN1 IN3 CH2 CH4 MAIN OUT
OUT LAN ALARM
AUDIO IN VIDEO IN IN
WARRANTY
CONDITIONS
POWER
34 GG - +
ALARM RS422 DC 12V
OUT
