We need a three-legged polarized plug, with turn Lock contact
of a quarter turn.

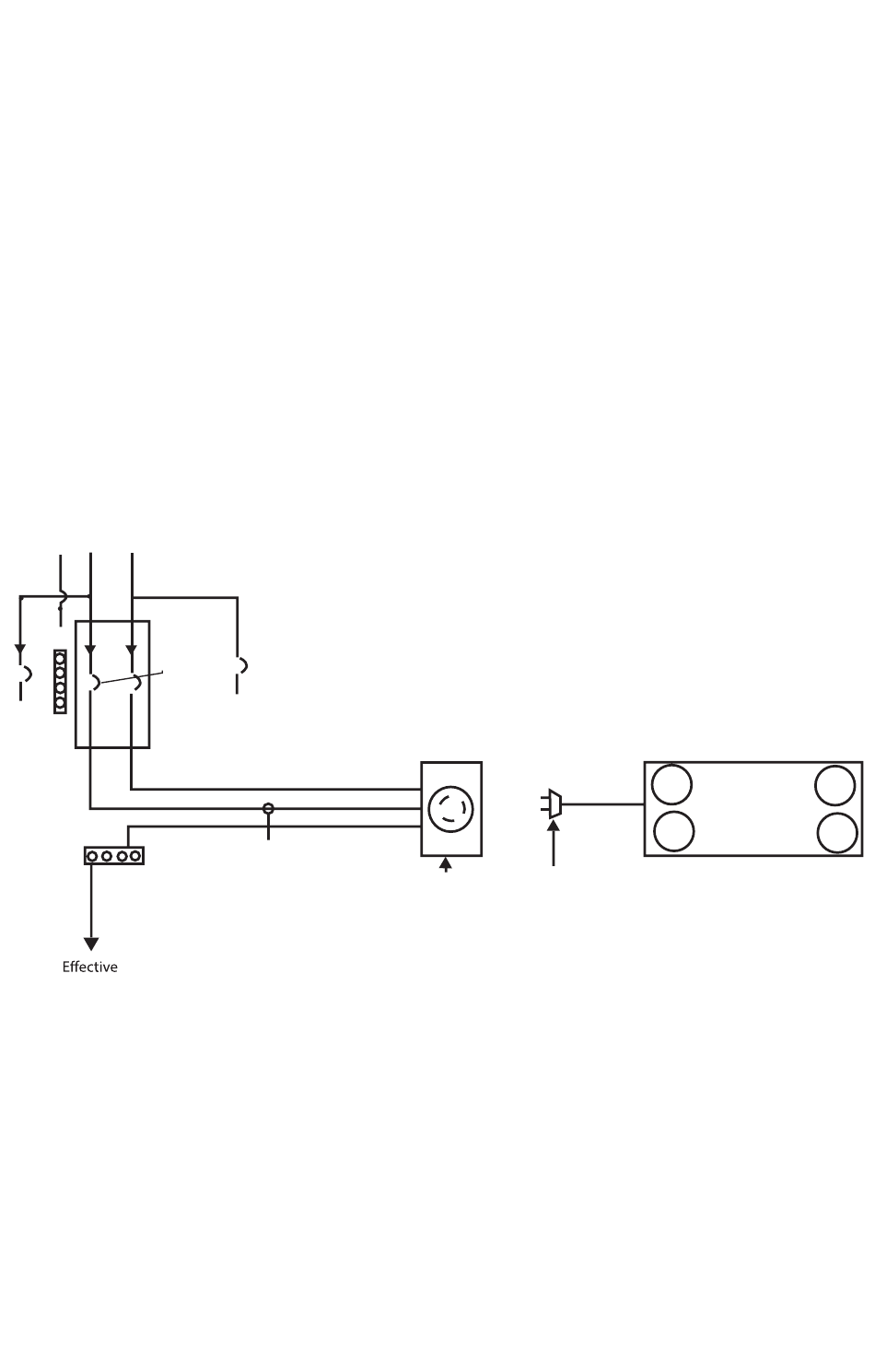

¿How to connect the plug to the grill?
We have two choices the first is:
We will connect the grill directly to the plug
(Blue and grey = line 1).
(Coffee and black = line 2).
(Green and yellow = Earth) This goes with cable of physics and
neutral.
L1 L2
N
N
Switch
Thermomagnetics
2X220 VAC
30A
C1
C-3
C-2
Load
Biphysics
Connection with Plug
C-4
Gauge CABLE 10 THW
L2
L1
F
220 VAC
Plug of
Contact
Half turn
TURNLOK
Half turn
Equipment to
220 VAC
