SIMPLE MANUAL
Mini Hi-Fi
System
Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com and then download Owner' s Manual.
Some of the content in this manual may differ from your unit.
MODEL
CK57
MFL70363017
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
CK57-AB.DCHLLLK_SIM (Sheet)_MFL70363017.indd 1-4

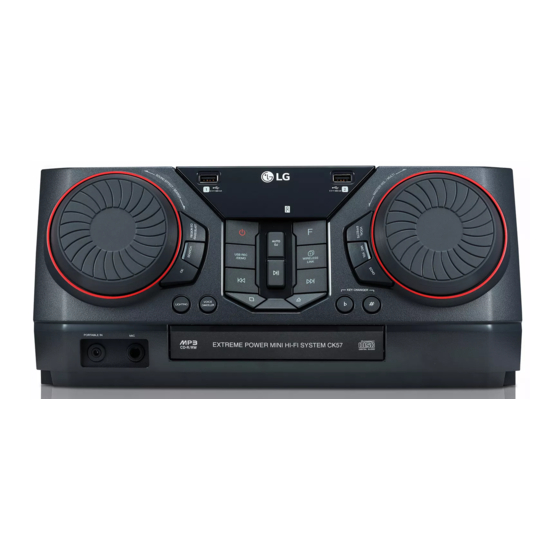

Front Panel
f LIGHTING
a i
Selects lighting mode.
b j
c k VOICE CANCELLER
d l
You can reduce the vocal tones during music playback
e m
from various input sources.
g PORTABLE IN jack
f n
MIC (Microphone) jack
g
h Disc tray
h o
i USB 2 Port
a USB 1 Port You can play sound files by connecting the USB device.
You can play sound files by connecting the USB device.
j (Remote sensor)
b Display window
k F (Function)
c 1 (Standby)
Selects the function and input source.
Turns the power on or off.
3 WIRELESS LINK
USB REC / DEMO - S elects MAIN or OTHER on WIRELESS PARTY LINK
- Records to USB.
mode.
- To stop Recording, press and hold for 3 seconds.
- E nable or disable WIRELESS PARTY LINK mode.
- I n power off status, if you press USB REC / DEMO,
V (Skip/Search)
show DEMO mode.
- Skips forward.
C (Skip/Search)
- Searches for a section within a track/file.
- Skips backward.
- Selects the radio stations.
- Searches for a section within a track/file.
B (Open/Close)
- Selects the radio stations.
Opens and closes the disc tray.
Z (Stop)
l MASTER VOL. (Volume) / MULTI
Stops playback or cancels DELETE function.
- Adjust speaker volume.
d SOUND EFFECT / SEARCH
- Adjust microphone volume.
- Chooses sound impressions.
- S elects vocal effects.
- Searches a folder or a file.
m VOCAL EFFECTS
- Selects the lighting effects.
Selects VOCAL EFFECTS mode.
e REGION EQ / BASS BLAST (or BASS BLAST+)
MIC VOL (Microphone volume)
- Chooses region equalizer.
S elects microphone volume mode.
- Press and hold to select BASS (or BASS+) effect
directly. ECHO
SEARCH Selects ECHO mode.
n KEY CHANGER (l/L)
Moves to folder or file in selection mode.
Changes the key to suit your vocal range.
OK
o AUTO DJ
Selects a folder when searching a file.
Selects the AUTO DJ mode.
N (Play/Pause)
- Starts or pauses playback.
www.lg.com
- Selects stereo/mono.
Rear Panel
a Power cord
b SPEAKERS connector
c SPEAKER LIGHTING SYSTEM
a
Connect the speaker lighting cables.
d AUX IN (L/R)
100 100
Connect an auxiliary device.
e ANTENNA (FM/AM)
b c d e
Speaker Connection Additional Information
Specifications
Refer to the main label on
Power Requirements
the unit.
Refer to the main label on
Power Consumption
100 100
the unit.
Approx. 350 mm x 166 mm
Dimensions (W x H x D)
x 276 mm
Bus Power Supply (USB) 5 V 0 500 mA
100 100
Amplifier
1,100 W RMS
(Total RMS output power)
Design and specifications are subject to change without
notice.
Replacement of battery
Controller App LG Sound Sync (Wireless)
Download the Music Flow Bluetooth App to your For more information, download the online owner' s
device. (Android only) manual. http://www.lg.com
