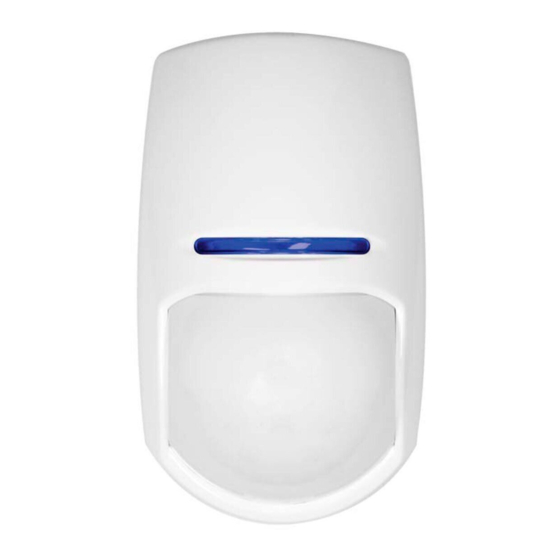

HIKVISION DS-PD2-D10P-W Manual De Instrucciones

DS-PD2-D10P-W/W1
Wireless 10m Pet Immune Dual
Technology Detector
E N G L I S H
References
1
WIRELESS DEVICE CONTROL
Please note: Once registered, the detector will begin a 10 minute timer allowing
walk test of the PIR and microwave. During this time, the detector will not
transmit to the panel and is used to adjust the PIR and microwave settings.
2
REGISTER LOCALLY/ VIA APP
Please register the detector within 90 seconds after it being powered on.
Register Locally
1.Make the security control panel enter the registration mode.
2.Register the detector: Hold the registration key until the three LEDs flash
alternately. The green LED will flash 8 times if the registration is finished.
3.Communication Test: Release the TAMPER spring to trigger the alarm.
Note: The distance between the security control panel and the detector should
be less than 50 cm.
Initialize the Detector
1.Remove the battery to power the detector off.
2.5s later, hold the registration key and reinstall the battery to power the
detector on at the same time to make the three LEDs start flashing alternately.
Release the registration key while the three LEDs flash once together.
Register Via APP
1.Log in to the APP Store and input" Hik-Connect" to search the mobile client.
Download and install Hik-Connect to your phone.
2.After installing, tap to run the client.
3.Power on the security control panel.
4.Log in the Hik-Connect and tap the icon"+" at the upper-right coner of the
Hik-Connect page to add the security control panel. You can scan the QR code
on the device rear panel or on the package box, or input the device serial No.
manually to add the device when the device is in the registration mode.
5.After adding the security control panel, tap the alarming status icon on the
right of the security control panel's name to enter the Partition page.
6.Tap the"+" icon on the Partition page to add the peripherals.
3
DIAGNOSTICS
Specification
Lens Characteristics
De te ction Ra ng e 10m
Detection Angle 85°
Detection Zones 56 zones， 6 planes
Detection Speed 0.3 - 3m/s
Mounting Height 1.8-2.4m
Key Features
Animal Immune Up to 24kg
Blue Wave Technology Yes
Automatic Sensitivity Yes
Digital Temperature Compensation Yes
Separate Indication: Microwave, PIR and Alarm Orange (Microwave), Blue (Alarm), Green (PIR)
3 Microwave Frequencies to Avoid Interference Yes
Tamper Protection Front, rear, and bracket tamper signal input
Signal Strength Indicators (SSI) Yes
Electrical & Battery
10.515, 10.525, 10.535 GHz
Microwave Frequency
9.89, 9.90, 9.91 GHz
Transmission Frequency 433MHz, FM transceiver
Range in Open Space 800m
3V Lithium Battery Included 2x CR123A
Minimum Battery Life (years) 2
Environment Features
Operating Temperature -10°C to +40°C(Certfied)
Weight 135g
Dimensions(H x W x D) 117 x 69 x 62mm
Optics Sealed
Geometric Lens Configuration 3D
Accessories
Ceiling mounted bracket included Yes
Wall mounted bracket included Yes
Battery Information
The batteries supplied have been chosen to provide long service life whilst, for safety
reasons, having limited output current.
The battery is protected on purchase by a piece of plastic that must be removed for
operation. When disposing of the product, the battery must be removed and disposed
of separately in accordance with the local regulations.
1
UD09714B-B
2
2.4m
0m
10m
10m
10m
Hangzhou Hikvision Digital Technology CO.,Ltd.
REGISTRATION
>5s
No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
3
≤300s
LEDs
HIGH
LEDs
LOW
This product and - if applicable - the supplied accessories
too are marked with "CE" and comply therefore with the
applicable harmonized European standards listed under
the RE Directive 2014/53/EU, the RoHS Directive
2011/65/EU.
For electrical products sold within the European
Community. At the end of the electrical products life, it
should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local
Authority or retailer for recycling advice in your country.
This product operates in a European
non-harmonised frequency band
5s
0.3 - 3m/s
0.3 -3m/s
