1. Bolt
2. Spacer
3. Locknut
3

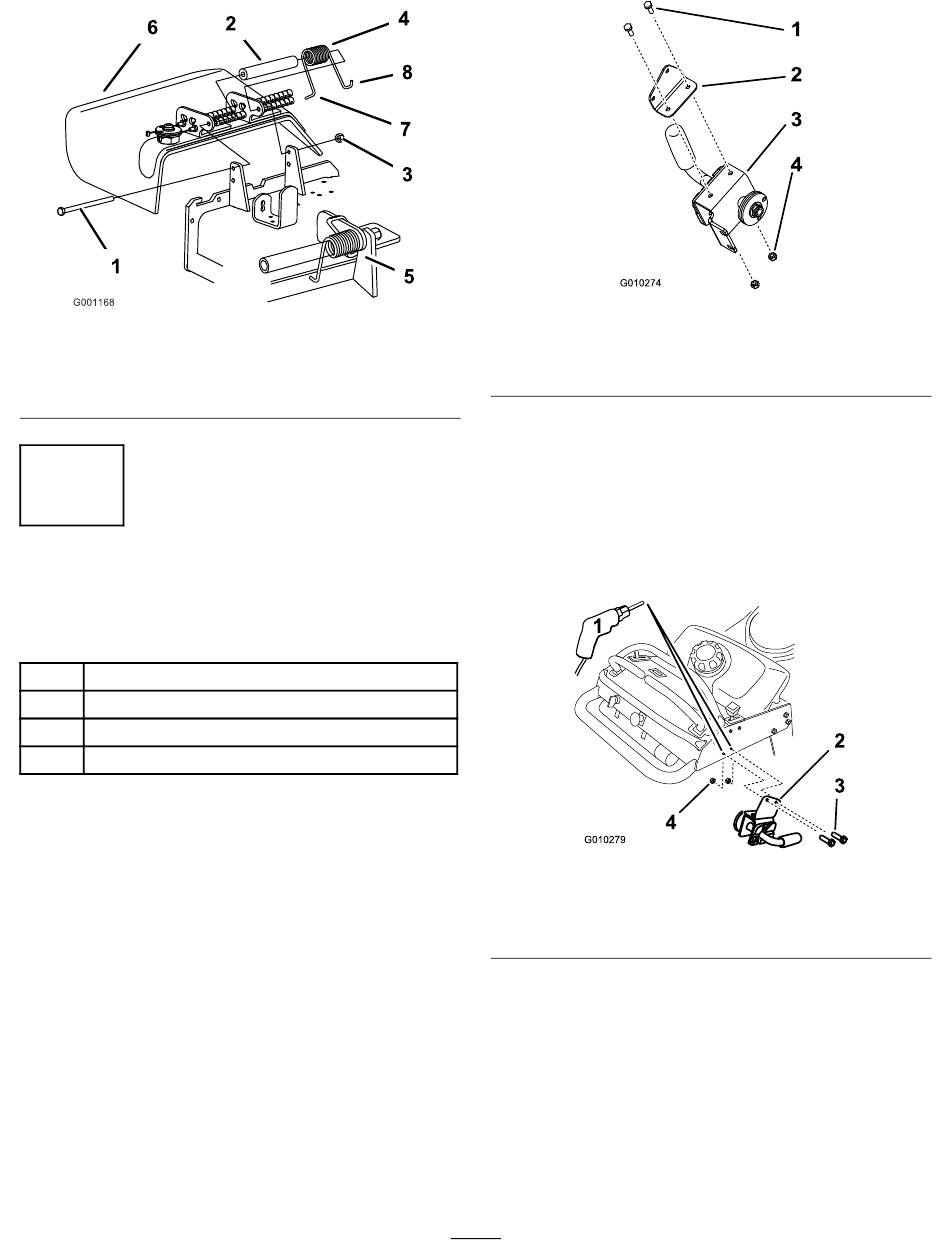

Installing the Handle to a T-Bar
Hydro Machine
Parts needed for this procedure:
1

Handle assembly

4

Bolt, (1/4 x 3/4 inches)

4

Locknut (1/4 inch)

1

Bracket

Procedure
1. Install the handle assembly to the angle bracket
with 2 bolts (1/4 x 3/4 inches) and 2 locknuts (1/4
inch)(Figure 3). Ensure to use the correct bracket.
Figure 2
4. Spring
5. Spring installed
6. Grass Deflector
1. Bolt (1/4 x 3/4 inches)
2. Bracket, ensure the
correct one shown is used
2. Check if there are holes existing to mount the handle.
3. If need drill holes to mount the handle. Mark and
drill 2 holes, 9/32 in diameter, on the right side of
the machine below the controls (Figure 4).
4. Install the handle assembly to the machine with
2 bolts (1/4 x 3/4 inches) and 2 locknuts (1/4
inch)(Figure 4).
1. If needed, drill holes here
(9/32in dia.)
2. Handle assembly
3
Figure 3
3. Handle assembly
4. Locknut (1/4 inch)
Figure 4
3. Bolt (1/4 x 3/4 inches)
4. Locknut (1/4 inch)
