INSTRUCTION MANUAL
J
.P. SELECTA s.a.u.
CODE 80180 REV A

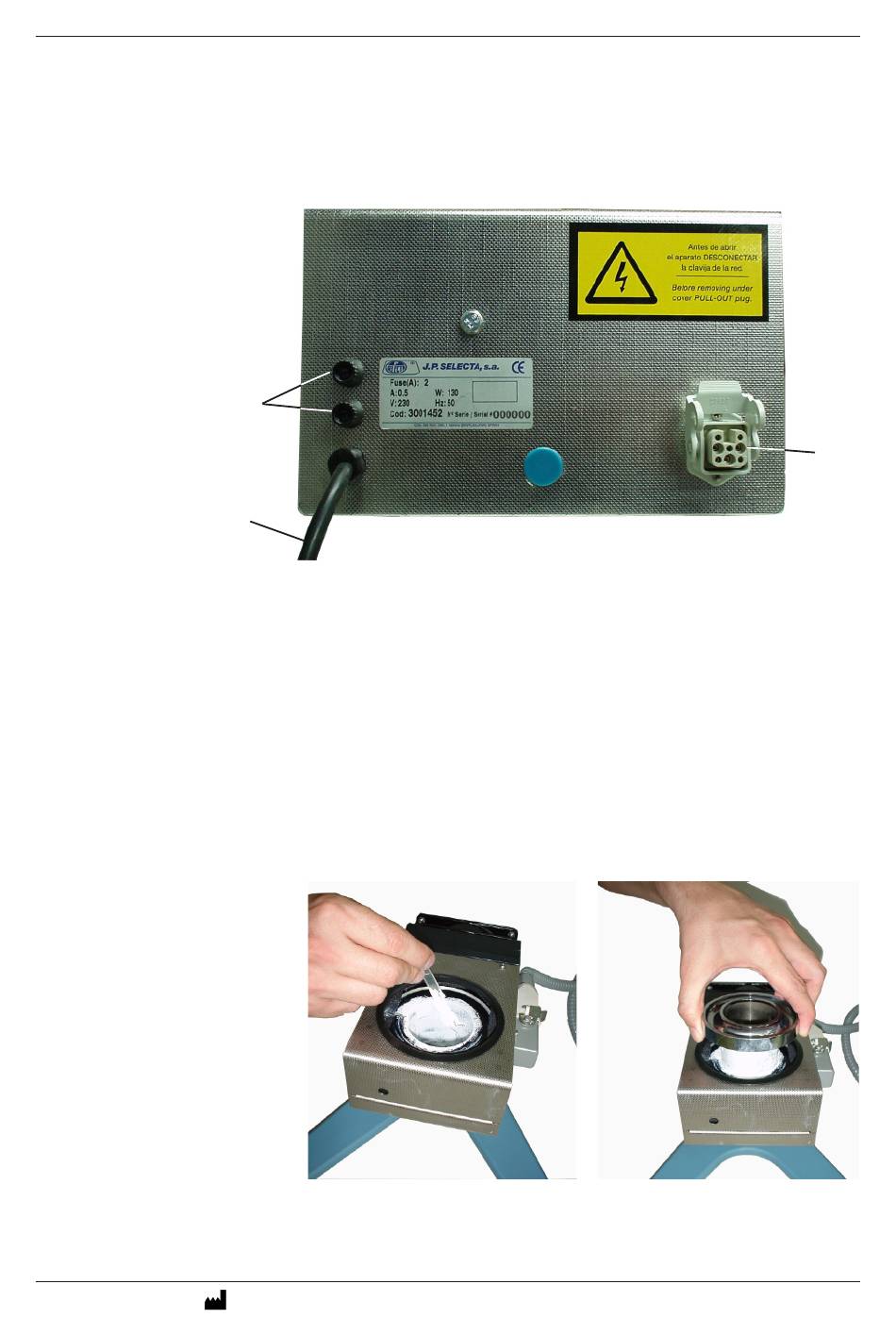

REAR PART:
6. Fuse carriers
2. Mains wire
3. Connection to viscosimeter support socket
6
7
SETTING EQUIPMENT:
1. Place the viscosimeter into the support (see picture B). To improve
thermic contact it is necessary to use silicone paste for semi-
conductors (see picture A). Fix the cup by using an allen wrench
number 6 (see picture C).
2. Level out the stand. to check whether the level is correct, use the
glass level supplied and adjust it by using the extending legs (see
picture D).
Picture A. Silicone paste application
