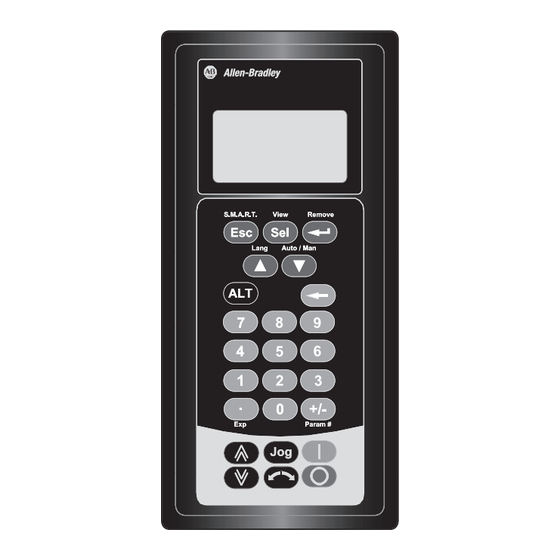

PowerFlex Remote HIM
Dezentrale Bedieneinheit (HIM) für PowerFlex
HIM décentralisée
Tastiera per montaggio a fronte quadro
Programador remoto
HIM op afstand
HIM remota
20-HIM-C3
IP66 (NEMA Type 4X/12)
Indoor / Innenraum / Usage Intérieur / Interno / Interior / Indoor / Interno
Important:
Adhesive coated gasket designed for one time installation.
Wichtig:
Dichtung ist nur für den einmaligen Einbau anwendbar.
Important : Joint adhésif à usage unique.
Importante: Guarnizione adesiva valida per una sola installazione. Smontando e
rimontando la stessa non sara' piu' garantita la protezione IP66.
ATENCIÓN: Junta con capa adhesiva diseñada para solo una fijación–
no reutilizable.
Belangrijk:
De zelfklevende dichtingsring is voor éénmalig gebruik.
Importante: Vedação adesiva foi projetada para ser instalada uma vez.
Installation Instructions
Installationsanleitung
Installazione
20-HIM-C5
Installation
Instalación
Instructies
Instalação
Publicidad
Resumen de contenidos para Allen-Bradley 20-HIM-C3
- Página 1 Tastiera per montaggio a fronte quadro Instructies Programador remoto Instalação HIM op afstand HIM remota 20-HIM-C3 20-HIM-C5 IP66 (NEMA Type 4X/12) Indoor / Innenraum / Usage Intérieur / Interno / Interior / Indoor / Interno Important: Adhesive coated gasket designed for one time installation.
- Página 2 Dimensions Abmessungen Dimensions Dimensioni Dimensiones Afmetingen Dimensões 17,6 104,0 (0.69) (4.09) (in.) 220,0 (8.66) 1.0m 1202-H03 = 0.3m 1202-H10 = 1.0m 1202-H30 = 3.0m 1202-H90 = 9.0m...
- Página 3 78,0 (3.07) 66,0 (2.60) 194,0 (7.64) 125,0 (4.92) 60,5 (2.38) 38,0 19,1 (1.50) (0.75) (0.19)
- Página 4 Mount Montage Montage Montaggio Montado Montage Montagem 0.68 N-m = M4 (6.0 lb.-in.) To contact Drives Technical Support . . . Tel: (1) 262 512-8176, Fax: (1) 262 512-2222 Email: support@drives.ra.rockwell.com Online: www.ab.com/support/abdrives Publication 20HIM-IN001A-MU-P – July 2002 307781-P02 Supersedes PFLEX-IN001A-MU-P Copyright ©...
