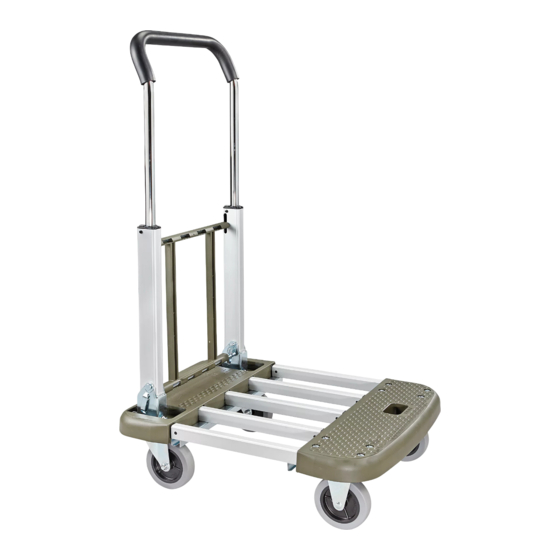

H-5040
FOLDING
HANDI-MOVER
TOOL NEEDED
1/2" Socket Wrench
Handle Assembly x 1
Handle
Assembly
Crossbar
PAGE 1 OF 3
1-800-295-5510
uline.com
Deck x 1
Nut x 16
ASSEMBLY
Figure 1
Deck
Button
PARTS
Long Bolt x 8
Short Bolt x 8
1. Align handle assembly with deck and swivel casters.
Secure with short bolts and eight nuts. (See Figure 1)
2. Align rigid casters with deck. Attach with long bolts
and eight nuts. (See Figure 1)
NOTE: This is the recommended assembly.
Rigid and swivel casters can be reversed if
necessary.
NOTE: Short bolts must be used with casters by
the handle and long bolts must be used with
casters at the front of the deck.
3. Adjust deck to desired length using button in the top
of deck. (See Figure 1)
4. Collapse handle by pressing down on crossbar
in the center of handle assembly and pushing it
forward. (See Figure 1)
Para Español, vea página 2.
Pour le français, consulter la page 3.
Rigid Caster x 2
Swivel Caster x 2
0621 IH-5040
