TOWER 10 AM, TOWER 12 AM [GRADE 3]
Anti-Masking PIR and Dual technology (PIR/MW) Mirror Detectors -
English
Installation instructions
Detectores de espejo (PIR/MW) Doble Tecnología y Anti-Masking
Español
Detectores de Espelho PIR e Dupla Tecnologia (PIR/MW) Anti-
Portuguese
Mascara. Instruções de Instalação
ENGLISH
1. INTRODUCTION
The TOWER 10 AM PIR and TOWER 12 AM Dual Technology are
professional vandal resistance Anti-Masking detectors designed for
large commercial and industrial applications providing wide coverage
with superior resistance to harsh environment, employing several
revolutionary patented technologies
50131-1 Grade 3.
Features:
 V-slot recessed small window technology (patent pending) for
extreme mechanical robustness and protection from false alarms
(patent pending).
 "Obsidian Black Mirrors"™ and "Elliptic / Parabolic Mirror"
technology providing over 15,000 LUX resistance to white light and
multiple-solid curtain pattern with 50% better sensitivity than
comparable mirror optics (several patents pending).
 Adaptive Active Infra-Red Anti-Masking technology providing the
most advanced reliable protection against intentional masking
attempts (patent pending).
 Optional interchangeable Long-Range Curtain mirror providing 35m
x 2.5m (115ft x 8.2ft) coverage for TOWER-10 and 25 x 2m (82 x
6.5ft) coverage for TOWER-12.
 Installer friendly features:
Built-in selectable E.O.L. resistors for alarm, trouble and tamper outputs.
Plug-in terminals attached to base for easy pre-wiring.
Unique sliding closing mechanism with captive screw.
Extended mounting height 1.5 - 4m (5 - 13 ft.).
Low supply voltage indication.
Remote controlled walk-test input.
Optional mounting brackets.
Selectable range adapted to the protected area size by use of a
Range Selector (TOWER 12 AM).
 Microprocessor controlled, digital TMR signal processing with dual-
slope digital temperature compensation.
 Front and Back tamper.
 True "Creep zone" down looking optics.
 Pet immunity (18Kg/40lb) using a special "pet mask".
 Built-in auto diagnostic for both PIR and microwave detectors.
2. SPECIFICATIONS
OPTICAL
Wide Angle
TOWER 10 & 12
coverage
25mx30m / 90º
Far Field Of View (FOV) 11 curtains
Medium FOV 6 curtains
Event counter settings
Mounting:
Method: Surface, corner or at 45º to wall.
Height: 1.5 - 4m (5-13 ft.) without bracket.
Vertical adjustment: Angled base surface provides three tilt
adjustments according to mounting height and coverage range.
ELECTRICAL
Sensors type:
PIR: dual element low noise pyroelectric sensor.
MW: X-Band Doppler module.
For UK - 10.687 GHz,
For EU / USA – 10.525 GHz..
For German/Czech 9.35 GHz
D-300909 TOWER 10 AM, TOWER 12 AM Installation Instructions
All manuals and user guides at all-guides.com
.
Both detectors comply with EN
Mirror Types (see Fig. 2)
Long Range Curtain
TOWER 10 TOWER 12
35m / 5º 25m / 5º
1 curtain
1 curtain
1 or 2 LR
EN: Yellow, red & green LEDs
SP: LEDs amarillo, rojo y verde
PT: LEDs amarelo, vermelho e verde

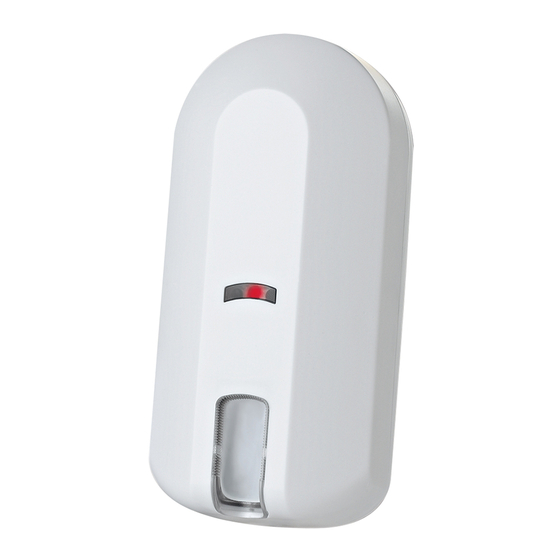

Figure 1 - TOWER 10 AM / TOWER 12 AM
Supply voltage: 8 – 16 VDC.
Low voltage detection: If input voltage is below 7.5 VDC.
Supply current:
Standby @ 12 VDC: 12mA (TOWER 10 AM). 15 mA (TOWER 12).
Maximum: 14mA (TOWER 10 AM). 18 mA (TOWER 12).
Alarm period: 2 to 3 sec.
Masking detection delay: 30 sec.
Remote LED enable input (TST): High impedance input. Affects
LEDs operation only if internal LEDs selector is set to OFF.
Outputs:
Alarm output: Solid State Relay. NC, 100 mA / 30 V, 35 ohm
maximum internal resistance. "Open" for 2 – 3 sec. in case of
alarm, masking event or complete power failure.
Trouble output: Solid State Relay. NC, 100 mA / 30 VDC, 35 ohm
maximum internal resistance. "Open" in case of auto-diagnostic
failure, Anti-Mask event, low voltage or complete power failure.
Tamper output: NC switch, 50mA / 30 VDC. "Open" by opening
detector's cover or removing it from mounting surface.
Built-in End Of Line resistors circuit: Selectable serial resistors for
each of the three outputs.
Resistors values: (tamper & alarm) ∞, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ,
(trouble) ∞, 1kΩ, 2.2kΩ, 3Ω, 39kΩ (see figure 5).
LED indications:
Event / status
TOWER 12
Low voltage
Warm-up Yellow + Red + Green
(60sec.) flashing alternately
Self-test failure Yellow + Red flashing simultaneously
AM detection
ALARM
PIR detection Green flashing
MW detection Green ON
Warm-up time: 60 sec.
ENVIRONMENTAL
Operating Temperature: –20°C to 55°C (-4°F to 131°F).
Storage Temperature: –20°C to 60°C (–4°F to 140°F)
RFI Protection: Greater than 20 V/m (up to 2 GHz).
Housing: IP41 and IK04 .
Dimensions: 160x77x47mm (6-5/16 x 3 x 1-13/16 in.)
Optional ACCESSORIES:
BR-1: Surface mounted swivel bracket, adjustable 30° down and 45°
left/45° right.
BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter
CURTAIN-10/12: Interchangeable long range 35m/5° curtain mirror
PET-10/12: Pet mask provides 18Kg/40Lb pet immune for wide angle
mirror only.
Standards:
Designed to comply with EN50131-1 Grade 3 / Class II,
EN50131-2-2, EN50131-2-4, EN300440, EN301489, EN60950.
Belgium standard TO14.
Sweden standard: SSF 1014.
3. INSTALLATION
3.1 General Guidance
3.2 Installation Procedure
3.3 Jumpers setting
Indication
TOWER 10 AM
Red flashing
Yellow + Red
flashing alternately
Yellow ON
Red ON
---
---
(See figure 3)
(See figure 4 & 5)
(See figure 5)
