Installation procedure

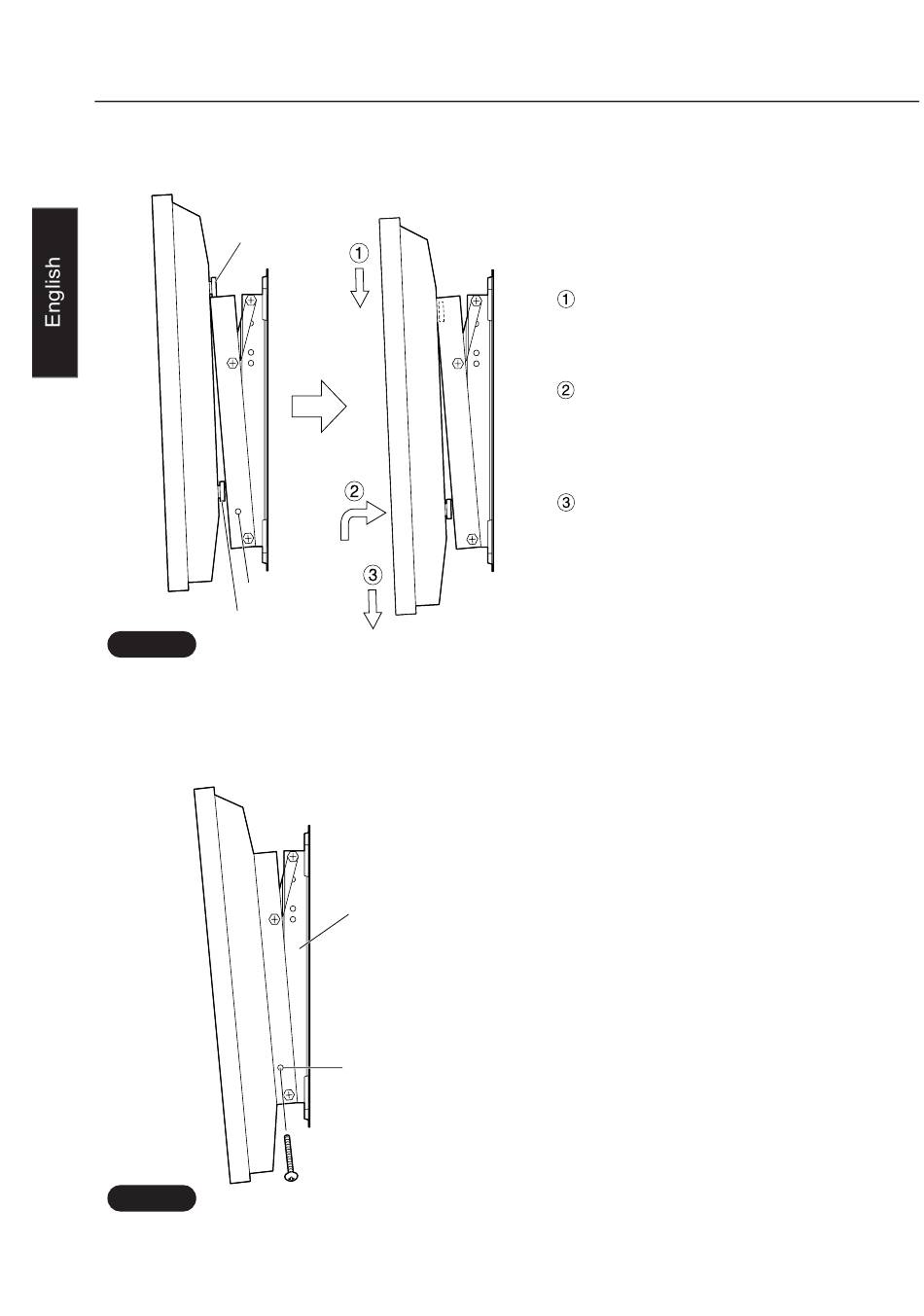

5. Installing the display to the wall-hanging bracket
Insulating spacer
N o t e
Note
• Do not lift the display too high, otherwise it may become unhooked.
6. Securing the display
N o t e
Note
• Be sure to tighten the left and right fixing screws to prevent the display from detaching from the wall-hanging bracket.
12
All manuals and user guides at all-guides.com
Insulating spacer
Fixing screws
Wall-hanging bracket
Fixing screw mounts
Fixing screws (left and right)
Installation procedure
Fit the insulating spacers on the
upper part of the display into the
notches at the top of the wall-
hanging bracket.
While lifting the display up slightly,
insert the insulating spacers on the
lower part of the display into the
notches in the lower part of the
wall-hanging bracket.
Lower the display into place.
• Tighten the accessory fixing screws
into the fixing screw flanges at the
left and right sides of the wall-
hanging bracket.
