Skypatrol TT9200 Guía Rápida De Instalación

TT9200
When mounting the TT9200, find a suitable mounting location under the vehicle dash pad. Be sure the label is facing up.
Measure the voltage at the vehicle battery with the car off. Power to the TT9200 can be taken directly from the battery, fuse box,
or at a point near the steering column that has the exact same voltage as the vehicle battery with the car off. A voltage on a wire
that is slightly less than the battery voltage indicates that the wire is not directly from the battery and should not be used.
Standard None OBD II Install
 Cut the wire shown in figure 1 of the power harness.
 Connect the Red wire of the device power harness to the vehicle's constant battery source.
 Connect the Black wire of the device power harness to chassis ground.
OBD II Install
 Connect the power harness and the OBDII pass through cable together as show in figure 1 and 2.
 For the starter interrupt installation, follow the steps shown in figure 3.
 To use the starter interrupt feature, connect the White wire from the power harness to ignition source.
 Plug the power harness to the device and secure the device under the vehicle dash pad out of view.
Device LED Status
Figure 1

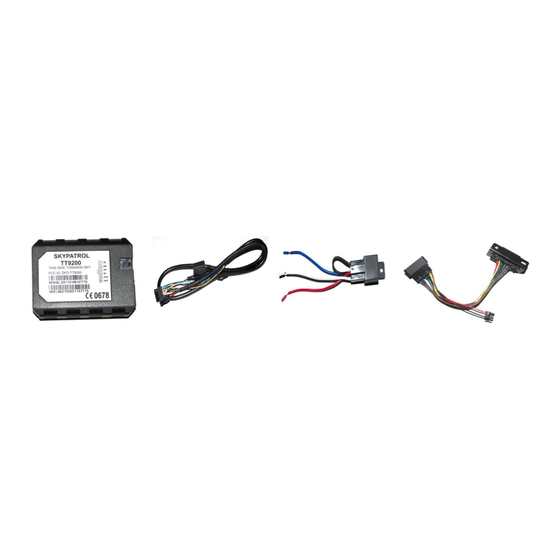

TT9200 Kit
Power Harness
TT9200 Installation Steps
And the
Figure 2
Relay (Optional) OBD II Adapter (Optional)
Starter Interrupt
Figure 3
Rev 1.2
