Cinema Loudspeaker Systems User Manual
SR-18
Surround Loudspeaker
Introduction

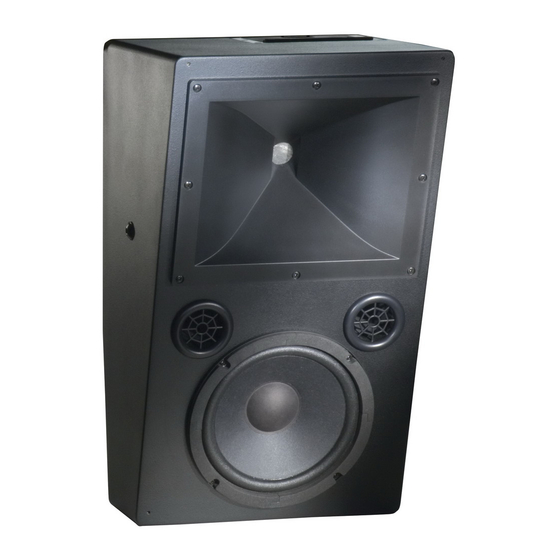

The SR-18 Cinema Surround Loudspeaker offers high power handling, excellent sensitivity, and
extended bass response in a very compact enclosure. The high power handling and rugged plywood
enclosure are optimized for the task of digital soundtrack reproduction.
Instead of being tuned as an individual unit, the SR-18 features Array Optimized Tuning (AOT). The
crossover is voiced for flat low frequency response when used in an array on a theatre wall. Conven-
tional loudspeakers are voiced as a single unit.
The SR-18 features a high power long-throw 8" (203mm) low frequency transducer for smooth,
extended bass response. The high frequency section combines a 1" (25mm) titanium diaphragm com-
pression driver with a constant directivity horn for very high output capability and wide, even high
frequency coverage. The 100 watt continuous power rating provides absolute reliability.
The compact black enclosure with black grille blends into any theatre decor. The baffle's built-in 15°
tilt places the loudspeaker at the optimum coverage angle for most applications. The Quick Mount
bracket design allows for fast installation. The loudspeaker-half of the bracket comes pre-installed
on each SR-18. The Quick Mount wall bracket is purchased separately to allow shipment to the job
site ahead of the loudspeakers. A U-bracket is also available in lieu of the Quick Mount bracket sys-
tem.
SR-18 Specifications
(subject to change without notice)
Frequency Response:
Nominal Coverage:
DI:
Q:
SPL Output:
Impedance:
Maximum Input Power:
Sensitivity (2.83V, 1m):
Crossover Frequency:
Recommended Processing:
Connectors:
Transducers:
Enclosure:
Size:
Weight:
Optional Brackets:
*TD-000203-00*
TD-000203-00 rev.C
© Copyright 2005, 2006, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
"QSC" and the QSC logo are registered with the U.S. Patent and Trademark Office
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main Number (714) 754-6175 Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
52 - 20,000 Hertz (-6 dB, 4 pi)
48 - 20,000 Hertz useable range (-10 dB, 4 pi)
95° horizontal X 85° vertical (average from 1000 to 10,000 Hertz)
7.5
5.6
112 dB continous
8 ohms
100 watts (2 hours IEC 268, 50 - 20,000 Hertz)
91.0 dB
1,900 Hertz
QSC amplifier with subsonic filter at 50 Hertz
Four terminal barrier strip. Outputs in parallel with inputs.
8" (203mm) woofer, 1" (25mm) Ti compression driver on CD horn.
Painted plywood, 15° baffle
20.54" H x 12.00" W x 11.75" D (521.6mm x 304.8mm x 298.5mm)
24 lbs. as hung (11 kg.)
Quick Mount: QM-SW (0° tilt) or QM-BW (8° tilt)
U-bracket: YM-300
