s

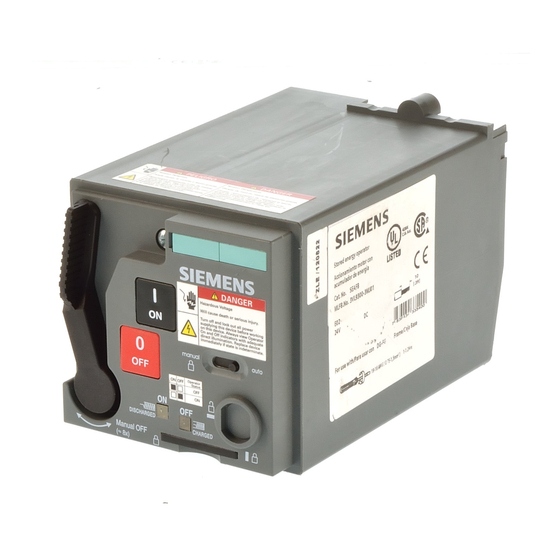

Stored Energy Operator
Accionamiento motor con acumulador de energía
Commande motorisée à accumulation d'energie
(avec déclencheur electrique et mecanique)
Installation Instructions / Instructivo de Instalación
Hazardous Voltage Hazardous Voltage
Will cause death or serious injury Will cause death or serious injury
Turn off and lock out all power supplying this device before Turn off and lock out all power supplying this device before
working on this device. working on this device.
Replace all covers before power supplying this device is Replace all covers before power supplying this device is
turned on. turned on.
Use only with Siemens certified Components.
Utilizar únicamente con componentes certificados de Siemens.
A utiliser uniquement avec les composants certifiés Siemens.
NOTE - These instructions do not purport to cover all details or
variations in equipment, or to provide for every possible contingency
to be met in connection with installation, operation or maintenance.
Should further information be desired or should particular problems
arise, which are not covered sufficiently for the purchaser's
purposes, the matter should be referred to the local Siemens sales
office. The contents of this instruction manual shall not become part
of or modify any prior or existing agreement, commitment or
relationship. The sales contract contains the entire obligation of
Siemens. The warranty contained in the contract between the
parties is the sole warranty of Siemens. Any statements contained
herein do not create new warranties or modify the existing warranty.
Trademarks - Unless otherwise noted, all names identified by ® are
registered trademarks of Siemens AG or Siemens Industry, Inc. The
remaining trademarks in this publication may be trademarks whose
use by third parties for their own purposes could violate the rights of
the owner.
1
Trip
[ Interrumpir ]
8 0 6 8 3 9 A 0 3
Tensión peligrosa. Tensión peligrosa.
Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves.
Desenergice totalmente antes de instalar o darle servicio. Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de Reemplace todas las barreras y cubiertas antes de
energizar el interruptor. energizar el interruptor.
2
2
ON / I
1 / 6
U.S. Cat. No.
Item: SEAFB
SEAFM
SEAFY
SEAFN
SEAFR
For Use With Frame CG, DG, FG
Para Usar Con Caja Base CG, DG, FG
Tension dangereuse. Tension dangereuse.
Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
Couper l'alimentation de l'appareil et barrer avant de Couper l'alimentation de l'appareil et barrer avant de
travailler. travailler.
Remplacez touts les couverts avant que Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté. l'approvisionnement de pouvoir soit alimenté.
2 Amp
SEAFB 3VL9300-3MJ01 = 24 V dc
SEAFM 3VL9300-3ML01 = 42-48 V ac/dc
SEAFY 3VL9300-3MS01 = 60 V ac/dc
SEAFN 3VL9300-3MN01 = 110-127 V ac/dc
SEAFR 3VL9300-3MQ01 = 220-250 V ac/dc
M13 x 35mm
M4 x 6mm
DG / FG
3
1
Euro Order No.
3VL9300-3MJ01
3VL9300-3ML01
3VL9300-3MS01
3VL9300-3MN01
3VL9300-3MQ01
CG
HFGA
Frame - FG
FG
Caja Base -
ON I
OFF
250A
Cat. No. HFG3N250
I.L. No. 806839A03
