PART NAMES

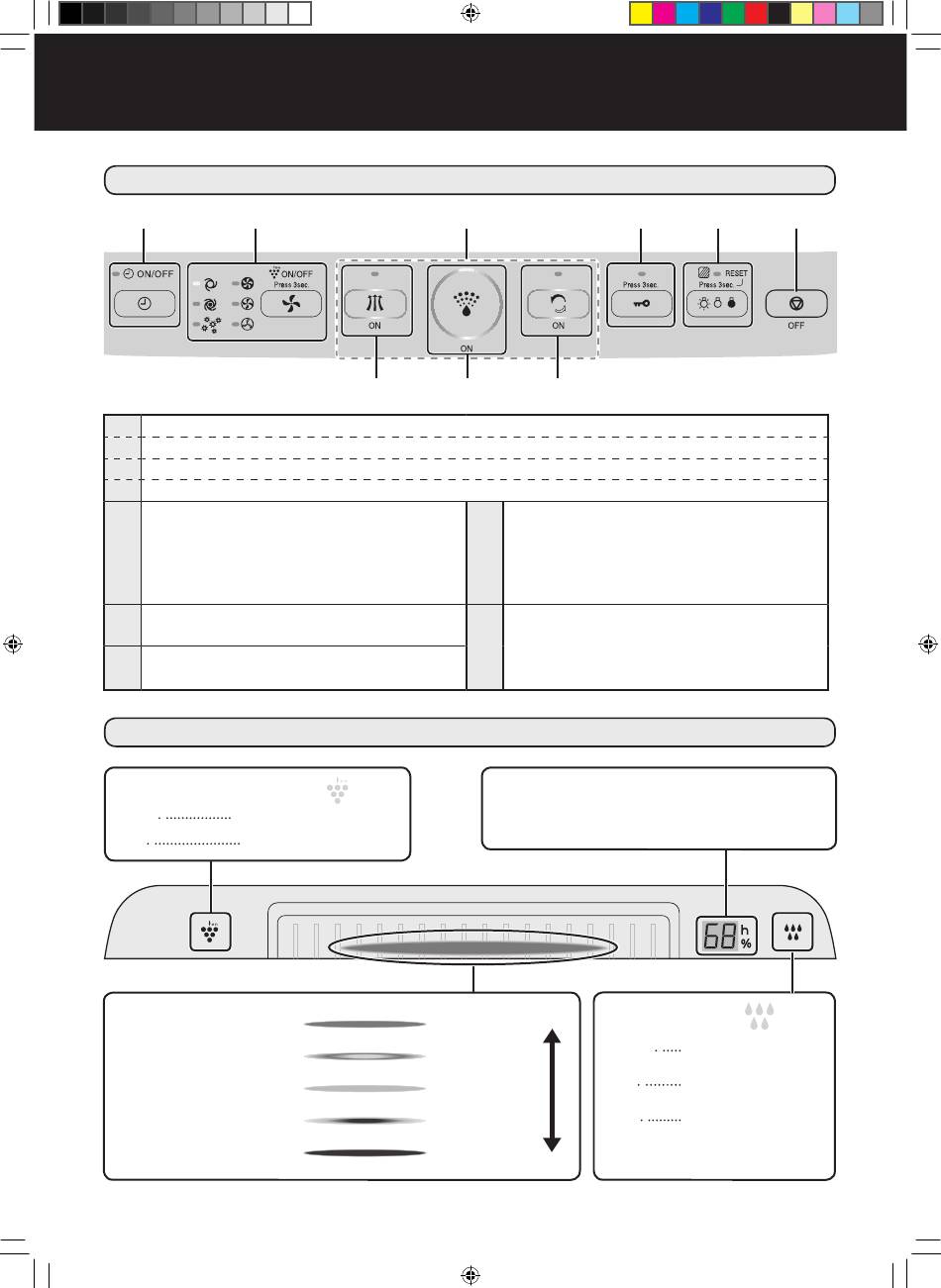

OPERATION PANEL

3
1 POWER ON Button
a CLEAN AIR MODE Button / INDICATOR LIGHT
b CLEAN AIR HUMIDIFY MODE Button / INDICATOR LIGHT
c CLEAN ION SHOWER MODE Button / INDICATOR LIGHT
2 • FAN SPEED Button /
INDICATOR LIGHT
• Plasmacluster Ion ON / OFF Button
(Press 3 sec.)
INDICATOR LIGHT
3 ON/OFF TIMER Button /
INDICATOR LIGHT
4 CHILD-LOCK Button
INDICATOR LIGHT

DISPLAY ILLUSTRATIVE DIAGRAM

Plasmacluster Ion Light
blue Plasmacluster Ion ON
off
Dust / Odour Monitor*
The dust / Odour monitor
detects dust in the room
and indicates the intensity
in 5 levels with colour
changes.
*Odour sensor is equipped
with KC-D60EU and
KC-D50EU.
KC-D60-50-40EU_WEST.indb 6
2
a
(green)
/
(green)
(green)
/
(Press 3 sec.)
(green)
Plasmacluster Ion OFF
Colour
1
b c
(green)
(green)
(green)
5 • LIGHT CONTROL Button
• FILTER RESET Button
INDICATOR LIGHT
6 POWER OFF Button
Humidity Monitor
Indicates approximate humidity level in the room.
Humidity setting cannot be adjusted.
CLEAN
Green
Green (both ends)
Orange (middle)
Orange
Orange (both ends)
Red (middle)
Red
IMPURE
E-6
4 5 6
(Press 3 sec.)
(orange)
Humidify Light
green
Humidity ON
Humidity OFF
off
red
need to supply water
(Flashing)
