INPUT CONNECTIONS AND AUDIO DAISY CHAIN

According to the specific configuration (mono or stereo), one or two cables (not supplied) are required at
input and at daisy chain. XLR connectors are required.

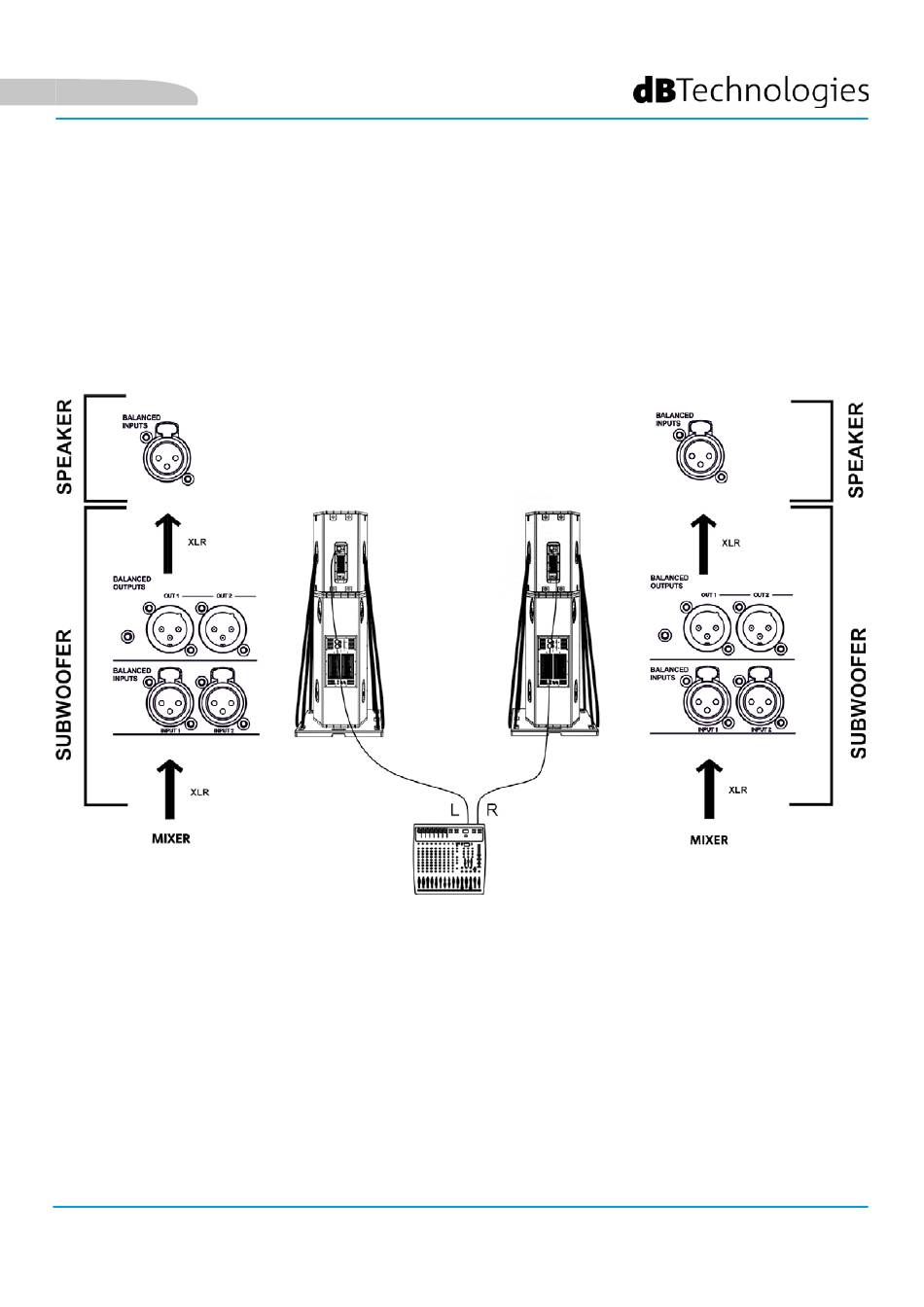

CASE A (MONO connection) between subwoofer and speaker:
In the event of a MONO connection between subwoofer and speaker:
1. Connect mixer output to subwoofer INPUTS 1 connector
2. Connect subwoofer OUTPUTS 1 connector to speaker input.
3. For each speaker, select the type of input impedance on LINE.
4. For each channel in the configuration, set subwoofer OUTPUTS MODE [4] to XOVER, in order to daisy-chain a
signal filtered to the crossover frequency to the speaker.
