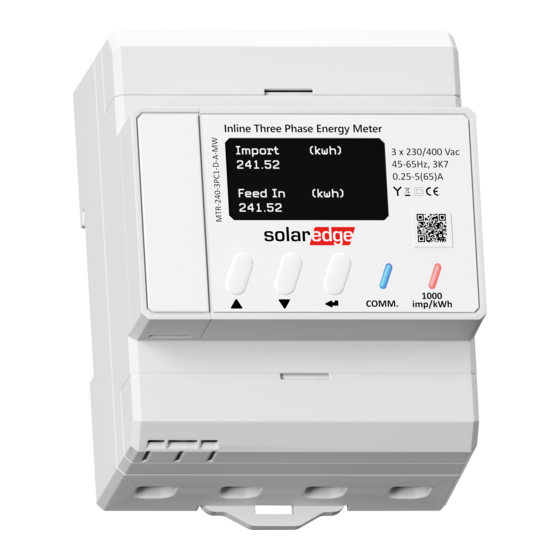

SolarEdge MTR-240-3PC1-D-A-MW Guía Rápida De Instalación

Inline Energy Meter
Quick Installation Guide
For Europe, APAC and South Africa
Box Contents
One (1) Energy meter
One (1) Quick Installation Guide
One (1) RS485 Terminal block
Usage Options
A
Default Communication
See section C on back page for optional Modbus communication
SolarEdge Energy Net
Scan for SolarEdge
Energy Net plug-in kits
to use with the inverter
Mounting and Wiring
B
WARNING!
HAZARD OF
ELECTRIC SHOCK DISCONNECT
POWER BEFORE SERVICE OR
INSTALLATION
CAUTION! DO NOT use circuit
breaker with a rated current of
more than 65A
OFF
4
RS485 Defaults:
Termination = ON
ID = 2
1
2
3
3Ø Meter Wiring - Accuracy class B (1%)
L1 L2 L3 N
Metal Enclosure or Extended Range
1
1Ø Meter Wiring - Accuracy class A (2%)
CAUTION! DO
NOT use circuit
breaker with a
rated current of
more than 65A
3Ø
3X 230/400 VAC Wye Grid
(max. 65A per each phase)
Connect to L3 when using this meter in 1Ø grid
Cross-section: 1.5 – 25 mm / 15 - 3 AWG
2
1.2Nm
N
L3
L2
L1
Datasheet
DE FR HU IT
NL PL SP SWE
3
1.1Nm
L N
1.2Nm
Cross-section: 1.5 –
25 mm / 15 - 3 AWG
2
1Ø
L
N
230/400 VAC Wye
Grid (max. 65A)
3Ø Meter Wiring - Accuracy class A (2%)
L1 L2
Complete Installation guide
4
2
Scan for External Energy Net
antenna installation guide
Scan for SolarEdge Energy
Net plug-in installation guide
1Ø Meter Wiring - Accuracy class B (1%)
N
L
CAUTION! DO
NOT use circuit
breaker with a
rated current of
more than 65A
L N
L1
L2
L3
N
1.2Nm
Cross-section: 1.5 – 25 mm
3Ø
3X 230/400 VAC Wye Grid
(max. 65A per each phase)
L3 N
Connect to L3 when using this meter in 1Ø grid
solaredge.com
Werner-Eckert-Strasse 6/81829
Munich/GermanySolarEdge
Technologies Gmbh
Subject to change without notice.
© SolarEdge Technologies, Ltd.
All rights reserved. August 2021.
1Ø
230/400 VAC Wye
Grid (max. 65A)
Cross-section: 1.5 – 25
mm / 15 - 3 AWG
