412885

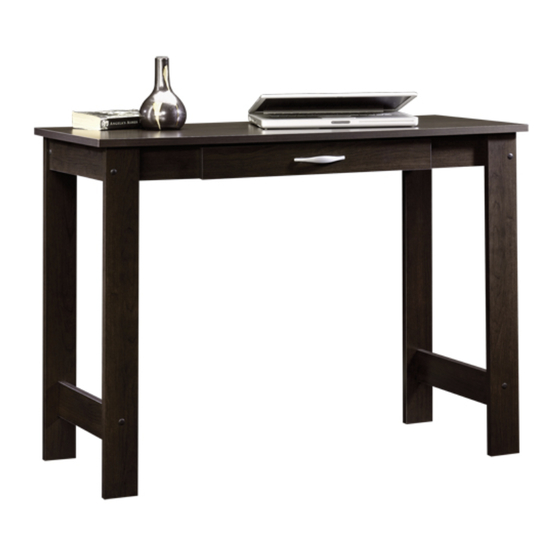

Writing Table
PLEASE CONTACT US
BEFORE RETURNING
YOUR UNIT TO THE STORE
1-800-523-3987
www.sauder.com
NOTE: THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
English .................... Page 1-15
Français ...............Pages 16-18
Made in the USA
Espanol .............Páginas 19-21
Archbold, OH
Lot #: 368960
Date Purchased: ____________________
02 / 10 / 15

Publicidad

loading

Manuales relacionados para Sauder 412885

Resumen de contenidos para Sauder 412885

  • Página 1 412885 Writing Table NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE CONTACT US PLEASE READ AND KEEP FOR FUTURE REFERENCE. BEFORE RETURNING English ....Page 1-15 YOUR UNIT TO THE STORE Français ....Pages 16-18 Made in the USA 1-800-523-3987 Espanol .....Páginas 19-21...
  • Página 2 TABLE OF CONTENTS ASSEMBLY TOOLS REQUIRED Part Identifi cation .......3 No. 2 Phillips Screwdriver Hardware Identifi cation .....4 Tip Shown Actual Size Assembly Steps ....5-15 Français ......16-18 Hammer Espanol ....... 19-21 Safety ........22 Warranty ........23 Page 2 www.sauder.com/services 412885...

  • Página 3: Part Identification

    RIGHT UPRIGHT BACK LEFT UPRIGHT FRONT STRETCHER D266 RIGHT DRAWER SIDE RIGHT FRONT/LEFT REAR LEG D267 LEFT DRAWER SIDE LEFT FRONT/RIGHT REAR LEG D268 DRAWER BACK DRAWER FRONT D249 DRAWER BOX FRONT D266 D268 D622 D249 D267 412885 www.sauder.com/services Page 3...
  • Página 4 BLACK 7/8" LARGE HEAD SCREW - 2 SILVER 7/8" MACHINE SCREW - 2 GOLD 5/16" FLAT HEAD SCREW - 8 CONNECTOR SCREW - 8 Screws are shown actual size. You may receive extra hardware with your unit. Page 4 www.sauder.com/services 412885...
  • Página 5 Assemble your unit on a carpeted fl oor or on the empty carton to avoid scratching your unit or the fl oor. Use your hammer to tap two HIDDEN CONNECTORS (P) with SCREWS into one of the ENDS (A). Repeat this step for the other END (A), RIGHT UPRIGHT (B), and LEFT UPRIGHT (C). 412885 www.sauder.com/services Page 5...
  • Página 6 Insert the METAL PINS (S) in the LEGS (H and I) into the holes in the ENDS (A) and STRETCHERS (G). Now, fasten the LEGS (H and I) to the ENDS (A) and STRETCHERS (G). Use eight BLACK 1-7/8" FLAT HEAD SCREWS (T). Page 6 www.sauder.com/services 412885...
  • Página 7 (2 used in this step) Fasten the BACK (E) to the LEGS (H and I). Use four BLACK 1-1/8" PAN HEAD SCREWS (V). Fasten the BACK (E) to the ENDS (A). Use two BLACK 1-7/8" FLAT HEAD SCREWS (T). 412885 www.sauder.com/services Page 7...
  • Página 8 To fasten two parts together using the HIDDEN CONNECTORS, insert your screwdriver, at an angle, into the slot in the HIDDEN CONNECTOR. While pushing the screw into the hole of the adjoining part, turn the screwdriver clockwise to tighten. Fasten the ENDS (A) to the TOP (D). Tighten four HIDDEN CONNECTORS. Page 8 www.sauder.com/services 412885...
  • Página 9 (2 used in this step) Fasten the FRONTS (F) to the LEGS (H and I). Use four BLACK 1-1/8" PAN HEAD SCREWS (V). Fasten the FRONTS (F) to the ENDS (A). Use two BLACK 1-7/8" FLAT HEAD SCREWS (T). 412885 www.sauder.com/services Page 9...
  • Página 10 CONNECTORS Fasten the UPRIGHTS (B and C) to the TOP (D). Tighten four HIDDEN CONNECTORS. Fasten the UPRIGHTS (B and C) to the BACK (E) and FRONTS (F). Use four BLACK 1-7/8” FLAT HEAD SCREWS (T). Page 10 www.sauder.com/services 412885...
  • Página 11 Roller end GOLD 5/16" FLAT HEAD SCREW (4 used in this step) Fasten the CABINET RIGHT (35DA) and CABINET LEFT (35DB) to the UPRIGHTS (B and C). Use four GOLD 5/16" FLAT HEAD SCREWS (Y). 412885 www.sauder.com/services Page 11...
  • Página 12 DRAWER SIDES (D266 and D267) and DRAWER BACK (D268). D267 D249 D266 BLACK 1-9/16" FLAT HEAD SCREW (2 used in this step section) Fasten the DRAWER BOX FRONT (D249) to the DRAWER SIDES (D266 and D267). Use two BLACK 1-9/16" FLAT HEAD SCREWS (30S). Page 12 www.sauder.com/services 412885...
  • Página 13 BLACK 7/8" LARGE HEAD SCREW (2 used in this step) D249 Fasten the DRAWER FRONT (J) to the DRAWER BOX FRONT (D249). Use two BLACK 7/8" LARGE HEAD SCREWS (W). 412885 www.sauder.com/services Page 13...
  • Página 14 Fasten the DRAWER RIGHT (35DC) and DRAWER LEFT (35DD) to the DRAWER SIDES (D266 and D267). Use four GOLD 5/16" FLAT HEAD SCREWS (Y). Fasten the PULL (Q) to the DRAWER FRONT (J). Use two SILVER 7/8" MACHINE SCREWS (X) through the DRAWER BOX FRONT, through the DRAWER FRONT, and into the PULL. Page 14 www.sauder.com/services 412885...
  • Página 15 Center a SCREW COVER (R) over the head of each visible SCREW and press firmly. NOTE: Please read the back pages of the instruction booklet for important safety information. This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry. 412885 www.sauder.com/services Page 15...

  • Página 16: Liste De Pièces

    ARRIÈRE DROIT ......2 et conserver le livret VIS DE CONNECTEUR ....8 pour future référence. DEVANT DE TIROIR ....1 Pour contacter Sauder en ce qui concerne cet élément, faire référence au numéro de lot et numéro de modèle en appelant notre numéro sans frais.
  • Página 17 Maintenant, fi xer les PIEDS (H et I) aux 28 mm (V). EXTRÉMITÉS (A) et BARRES (G). Utiliser huit VIS NOIRES TÊTE PLATE 48 mm (T). Fixer les DEVANTS (F) aux EXTRÉMITÉS (A). Utiliser deux VIS NOIRES TÊTE PLATE 48 mm (T). 412885 www.sauder.com/services Page 17...
  • Página 18 Ceci complète l'assemblage. Nettoyer à l’aide d’une encaustique pour meubles ou d’un chiffon humide. ÉTAPE 10 Fixer le DEVANT DE TIROIR (J) au DEVANT DE CAISSON DE TIROIR (D249). Utiliser deux VIS NOIRES TÊTE LARGE 22 mm (W). Page 18 www.sauder.com/services 412885...

  • Página 19: Lista De Partes

    METAL de 22 mm ......2 TORNILLO DORADO DE Si necesita ponerse CABEZA PERDIDA de 8 mm ...8 en contacto con Sauder en cuanto a TORNILLO CONECTOR ....8 esta unidad, refi érase al número de lote y al número de modelo cuando llame a nuestro número gratis.
  • Página 20 BASTIDORES (G). Utilice ocho TORNILLOS REDONDA de 28 mm (V). NEGROS DE CABEZA PERDIDA de 48 mm (T). Fije las PARTES FRONTALES (F) a los EXTREMOS (A). Utilice dos TORNILLOS NEGROS DE CABEZA PERDIDA de 48 mm (T). Page 20 www.sauder.com/services 412885...
  • Página 21 Esto completa el ensamblaje. Limpie con su pulimento para muebles preferido o un paño húmedo. Seque con Fije la CARA DE CAJÓN (J) al FRENTE DE CAJÓN (D249). un paño. Utilice dos TORNILLOS NEGROS DE CABEZA GRANDE de 22 mm (W). 412885 www.sauder.com/services Page 21...
  • Página 22 El soportar un televisor. diseñadas para soportar un televisor. peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y por eso tendrán la tendencia a inclinarse hacia adelante. Page 22 www.sauder.com/services 412885...

  • Página 23: Garantía Limitada De 1 Año

    4. La présente garantie ne s’applique qu’aux défauts garantis qui se produisent des composantes de mobilier Sauder. Le mot « défaut », tel qu’il est utilisé sous pour la première fois et qui sont signalés à Sauder dans les limites de ouverture les termes de la présente garantie, comprend les imperfections des pièces qui...
  • Página 24 Archbold, Ohio, where it all began. Certifi cate of Conformity The Sauder name on the box ensures that 1. This certifi cate applies to the Sauder Woodworking Product indentifi ed by this Instruction Book. the item you have purchased is made with 2.
