iCLPAC1
3
(A) x1
5/16" (Ø 15.8mm) x4
4
5
12
All manuals and user guides at all-guides.com
(B) x4
5
1
3

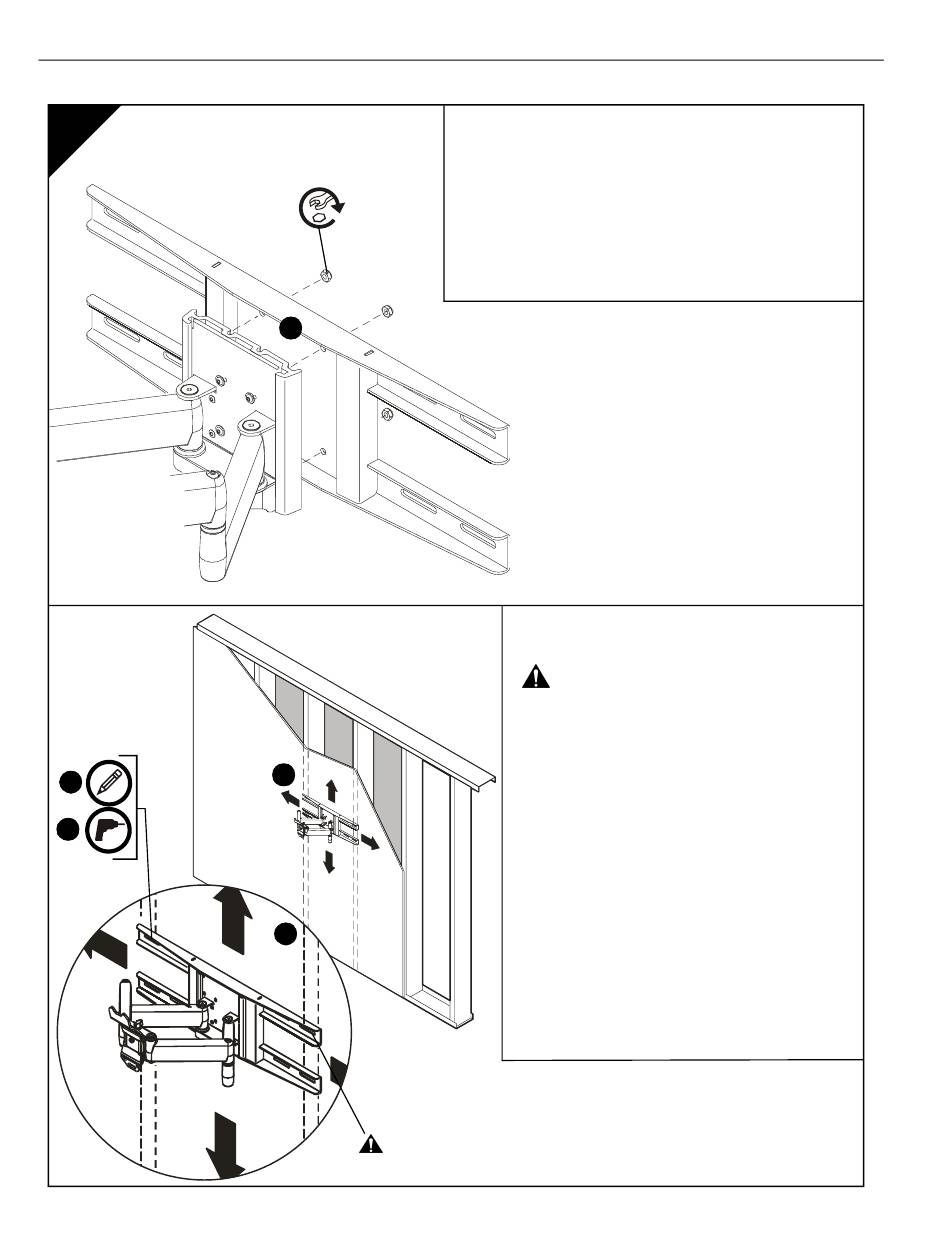

INSTALL SWING ARM WITH MOUNTING
PLATE AND STRAPS TO WALL PLATE
1. Slide four threaded studs, on straps in arm
assembly, through four mounting holes in wall
plate (A) and secure arm assembly to wall plate
(A) using four hex nuts (B).
LOCATE AND PREPARE
INSTALLATION LOCATION
WARNING:
IMPROPER INSTALLATION CAN
LEAD TO MOUNT FALLING CAUSING SERIOUS
PERSONAL INJURY OR DAMAGE TO
EQUIPMENT! Make sure mounting slots in wall
plate are centered on studs.
1. Determine mounting location taking into
consideration display size and mount movement.
2. Using a stud sensor locate two studs 16" or 24"
apart on center.
3. Using two people, place mount against wall and
level mount aligning mounting holes in upper and
lower wall channels with studs.
4. Use a pencil mark four mounting holes making
sure mounting holes are located as close as
possible to center of studs.
5. Drill four pilot holes where the mounting holes
were marked using a 5/16" dia. (Ø 15.8mm)
drill bit.
Installation Instructions
