Installing the Harness

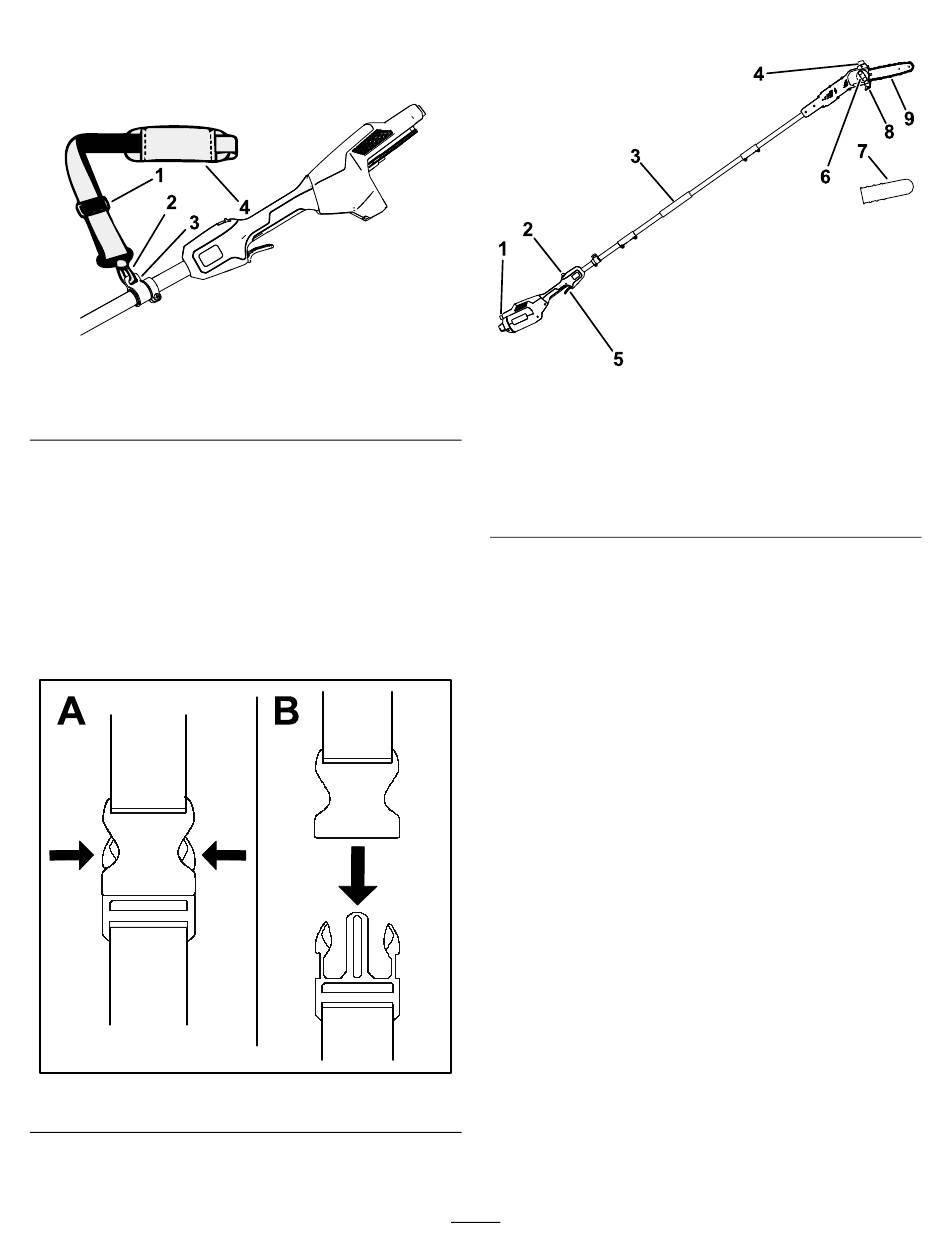

Connect the metal hook on the shoulder harness to
the strap collar on the pole saw handle
1. Strap adjuster
2. Metal strap hook
The strap length is adjustable; slide the strap adjuster
up to decrease the length of the strap, or down to
increase the length of the strap
If there is ever an emergency and you need to rapidly
remove the harness, disconnect the quick-release
buckle as follows:
1. Press in on the sides of the buckle (A of
7).
2. Allow the buckle to disconnect (B of
(Figure
Figure 6
3. Strap collar
4. Shoulder strap
(Figure 6).
Figure
Figure 7

Product Overview

6).
g374229
1. Button latch
2. Trigger lock
3. Front handle
4. Oil cap
5. Trigger
Figure
7).
g340477
11
Figure 8
6. Bar cover knob
7. Guide bar cover
8. Cutting guide
9. Guide bar and chain
g374230
