Weight Limit: 68 lb / 31 kg (Table)
250 lb / 113 kg (Chair)
J.C. - 12/25/2020
© 2020 Dorel Home Products All Rights Reserved
DA5013202N (White), DA5013212N (Gray)
Thank you for purchasing from Dorel!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

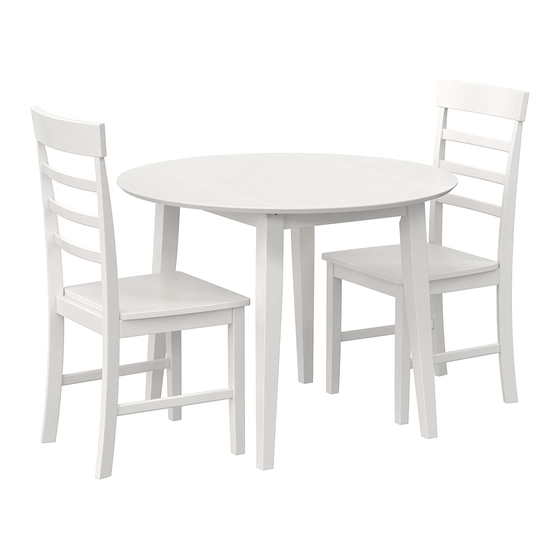

3pc Dining Set
Lot Number
(TAKEN FROM CARTON)
B34DA5013202N00-199484
1
Publicidad
Manuales relacionados para Dorel Home Products DA5013202N
Resumen de contenidos para Dorel Home Products DA5013202N
- Página 1 You can also chat with us at www.dhpfurniture.com Lot Number Date of Purchase (TAKEN FROM CARTON) THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B34DA5013202N00-199484 J.C. - 12/25/2020 © 2020 Dorel Home Products All Rights Reserved...
- Página 2 Limited 1 year Warranty Read Before Beginning Assembly Dorel warrants this product to be free from defects in material and • Work in a spacious area and near where the unit will be used, preferably on a workmanship and agrees to remedy any such defect. This warranty covers carpet, or use a piece of the cardboard packaging to protect your floor and one year from the date of original purchase from authorized retailers.
- Página 3 PARTS X 1 PC X 2 PCS...
-
Página 4: Parts List
SEAT FRAME STRETCHER CHAIR LEG - L CHAIR LEG - R 2 PCS 4 PCS 2 PCS 2 PCS PART NUMBERS DA5013202N DA5013212N PART LABELS (White) (Gray) Each part has a unique part number. Please T707120 T707200 reference the appropriate part number when contacting customer service for replacement parts. -
Página 5: Hardware List
X 1 PC Hardware Pack Please do not completely tighten all the hardware, until the entire assembly is complete, unless DA5013202N (White) HP# : TDA5013202N-00 otherwise indicated in the step-by-step instructions. DA5013212N (Gray) The screw(s), bolt(s) to be used at each step are shown... - Página 6 Step 1 Attach table leg B to table top A with bolts (1), lock washer (5) & flat washer (6) as shown. Repeat same assembly steps with the other table legs B. NOTE: Do not fully tighten the bolts until the table is fully assembled.
- Página 7 Step 2 Once table legs B are fully assembled, pull out the support rails on both sides before turning the table upright.
- Página 8 Folding the Table Leaf FOLD TABLE LEAF To fold the table leaf, push the support rail inwards towards the stopper and then fold the table leaf. To unfold the table leaf, lift it and then pull outwards the support rail. UNFOLD TABLE LEAF...
- Página 9 Step 3 Attach the left and right chair leg (G & H) to the sat frame E with bolts (3), lock washers (5) & flat washers (7) as shown. NOTE: Do not fully tighten the bolts until the chair is fully assembled.
- Página 10 Step 4 Insert stretcher F as shown, make sure the hole for the screw faces downwards as illustrated. Attach seat frame E to chair back C with bolts (4), lock washers (5) & flat washers (7). NOTE: Do not fully tighten the bolts until the chair is fully assembled.
- Página 11 Step 5 Secure seat frame E to chair back C with bolts (2), lock washers (5) & flat washers (7). NOTE: Do not fully tighten the bolts until the chair is fully assembled.
- Página 12 Step 6 Attach seat panel D to seat frame E with wood screws (8). Secure stretcher F with wood screws (8). NOTE: Tighten all the bolts after completing this step. Repeat the same steps with the other chair.
-
Página 13: Juego De Comedor De 3 Piezas
¡NO LO REGRESE A LA TIENDA! DA5013202N (Blanco), DA5013212N (Gris) Si le faltan piezas o las que se incluyen están dañadas, con mucho gusto le enviaremos sus piezas de reemplazo sin Juego de comedor de 3 piezas cargo extra. Visite www.dhpfurniture.com/spa/replacement-parts... -
Página 14: Paquete De Componentes
Partes Paquete de componentes Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts DA5013202N (Blanco) TDA5013202N-00 Todo se incluye en 1 caja(s) grande(s)! DA5013212N (Gris) Antes de deshacerse de las cajas de cartón, asegúrese de que estén vacías. También confirme que ha recibido todos los componentes necesarios... -
Página 15: Instrucciones
Instrucciones Límite de peso: 68 lb / 31 kg (Mesa) 250 lb / 113 kg (Silla) Paso 1 Conecte B a A con (1), (5) y (6), como se muestra (sección en inglés). Repita los mismos pasos con el otro B. Consejos útiles NOTA: No apriete completamente los pernos hasta que la mesa esté... -
Página 16: Contactez-Nous
NE PAS RETOURNER CE PRODUIT AU MAGASIN ! DA5013202N (Blanc), DA5013212N (Gris) Si une pièce est manquante ou endommagée, nous vous expédierons avec plaisir vos pièces de remplacement Ensemble de salle à manger 3 pièces gratuitement. Visitez www.dhpfurniture.com/fre/replacement-parts ou appelez au 1-800-267-1739 Date d'achat Numéro de lot... -
Página 17: Liste Des Pièces
Pièces Quincaillerie Pour des pièces de rechange, visitez www.dhpfurniture.com/fre/replacement-parts DA5013202N (Blanc) TDA5013202N-00 DA5013212N (Gris) IMPORTANT: La liste des références ci-dessous est propre à votre produit. Veuillez l'avoir sous la main lorsque vous appelez pour des pièces de rechange. Remarque: Sauf indication contraire dans les instructions, ne pas resserrer complètement les vis et les boulons, jusqu'à... -
Página 18: Conseils Utiles
Instructions Limite de poids: 68 lb / 31 kg (table) 250 lb / 113 kg (chaise) Étape 1 Fixez B sur A avec (1), (5) et (6), tel qu’illustré (section en anglais). Répétez les mêmes étapes avec les autres B. Conseils utiles REMARQUE: Ne serrez pas complètement les boulons tant que la table n'est pas complètement assemblée.
