READ IT OR WATCH IT
Read instructions or watch easy-to-follow
video. Scan QR code or visit goo.gl/T6iyFj

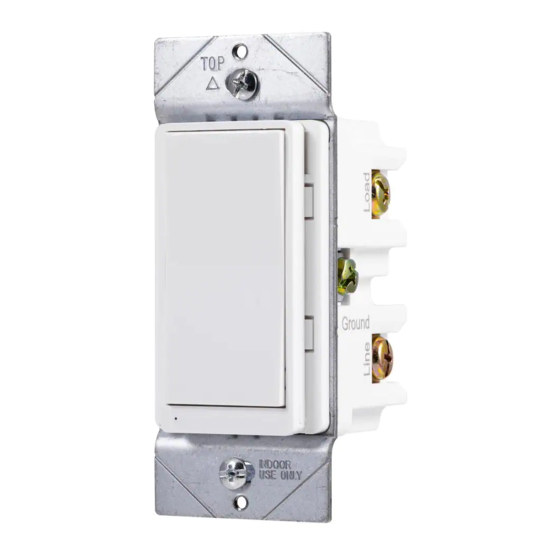

In-Wall Wi-Fi
Smart Switch
MADE IN CHINA
GE IS A TRADEMARK OF GENERAL ELECTRIC COMPANY AND IS
UNDER LICENSE BY JASCO PRODUCTS COMPANY LLC,
10 E. MEMORIAL RD., OKLAHOMA CITY, OK 73114.
This Jasco product comes with a 1-year limited warranty.
Visit www.byjasco.com for warranty details.
Questions? Contact us at 1-800-654-8483
between 7:00AM — 8:00PM CST.
4.
OR
OR
A
B
C
B
D
E
A
C
D
E
5.
Typical Wiring Schematic
for 3-Way Installation
LINE SIDE (HOT)
Line
Load
Ground
H
H
C
In a typical 3-way application there are two 3-way switches. The switch on the line (hot)
side has the common terminal tied to 120VAC. The switch on the load side has the
common terminal tied to the load the switches turn on and off.
-
FIGURE 1
LINE SIDE SWITCH
FIGURE 2 - LINE SIDE AFTER
Line
Ground
4
H
3
H
H
1
2
1. Black Wire - Black Screw - Line
2. Red Wire - Brass Screw - Traveler
3. Black Wire - Brass Screw - Traveler
4. Copper Wire - Green Screw - Ground
5. Jumper Wire - Brass Screw - Line + Load + Jumper in wire nut
FCC
All manuals and user guides at all-guides.com
This device complies with Part 15 of the FCC and Industry Canada license-exempt RSS standards. Operation
is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Important note: To comply with the FCC RF exposure compliance requirements, no change to the
antenna or the device is permitted. Any change to the antenna or the device could result in the
device exceeding the RF exposure requirements and void user's authority to operate the device.
1.
Required tools
IMPORTANT!
The fixture controlled by the Wi-FI Smart Switch must not
exceed 1000W incandescent.
Getting to know your new Wi-Fi Smart Switch
• Turn ON/OFF manually or through the myTouchSmart app
• Compatible with Amazon Alexa and Google Home
• May be used in single-pole installation or 3-way
wiring configurations
• Compatible with all incandescent, LED, CFL and
halogen lights
• Interchangeable paddle switch — white & light
almond included
• Uses a standard, decorative-size wallplate for single-gang
installations (wallplate not included)
MTS5404
• Screw terminal installation — requires wiring connections
40792 v1
for line (hot), load, neutral and ground. Traveler wire
required for 3-way installation
07/30/18
Insert wires into holes, do not
wrap wires around screws.
Do not remove screws.
Out to Light (Load)
LOAD
GROUND
TRAVELER
NEUTRAL
LINE
From Breaker Box
From Breaker Box
F
G
H
-
FIGURE 3
LOAD SIDE SWITCH
Load
LOAD SIDE
4
H
H
H
3
C
1. Black Wire - Black Screw - Load
2. Black Wire - Brass Screw - Line
3. Red Wire - Brass Screw - Traveler
3-way switch wiring
IMPORTANT!
3-way switches can be wired in different ways. These instructions explain the most
common method. If you have difficulty with the instructions or your home wiring, contact
a licensed electrician for assistance.
1. Shut off power to the circuit at circuit breaker or fuse box.
Line
IMPORTANT! Verify power to switch is OFF box before continuing.
1
Ground
2. Remove wallplate.
4
3. Remove the switch mounting screws.
H
4. Carefully remove switch from box. DO NOT disconnect the wires yet.
5. Identify "line switch" connected to circuit breaker. Label
wire connected to common terminal "line."
5
6. Identify "load switch" connected to lighting/fixture. Label
wire connected to common terminal "load."
Wire strip length
2
For attachment using the enclosure's holes, strip insulation 5/8in. (16mm).
UL specifies that the torque for the screws is 12 lbf-in. (14 Kgf-cm).
WARNING
RISK OF FIRE
RISK OF ELECTRICAL SHOCK
RISK OF BURNS
CONTROLLING APPLIANCES
• THIS SWITCH IS RATED FOR AND INTENDED TO ONLY BE
USED WITH COPPER WIRE.
• USE 14AWG OR LARGER WIRES SUITABLE FOR AT LEAST 90°
C FOR SUPPLYING LINE (HOT), LOAD, NEUTRAL, GROUND
AND TRAVELER CONNECTIONS.
• DO NOT EXCEED RATINGS
• DO NOT USE TO CONTROL ANY DEVICE WHERE
UNINTENDED OPERATION COULD CAUSE UNSAFE
CONDITIONS (HEAT LAMP, SUN LAMP, ETC.)
• NOT FOR USE WITH MEDICAL OR LIFE-SUPPORT EQUIPMENT
• FOR INDOOR USE ONLY
Turn OFF the power to the branch circuit for the switch and lighting fixture at the service panel. All wiring connections
must be made with the power OFF to avoid personal injury and/or damage to the switch. This device is intended for
installation in accordance with the National Electric Code and local regulations in the United States or the Canadian
Electrical Code and local regulations in Canada. If you are unsure or uncomfortable about performing this installation,
consult a qualified electrician.
2.
B
D
F
A
G
C
E
A. Ground (Green/Bare)
F. Top rocker — Press &
release to turn device
B. Load (Black)
ON, press & hold for 10
C. Line (Black)
seconds to reset Wi-Fi
D. Traveler (Red/Other)
device to factory specs
E. Neutral (White)
G. Bottom rocker —
Press & release to
turn device OFF
Single-switch wiring
Removing existing switch
Before you start, you may wish to change the paddle color to
match your wallplate or décor. Please return to Section 3.
A. Shut off power to the circuit at circuit breaker or fuse box.
IMPORTANT! Verify power to switch box is OFF before continuing.
B. Remove wallplate.
C. Remove the switch mounting screws.
D. Carefully remove the switch from the switch
box. DO NOT disconnect the wires.
Up to five screw terminals on the switch are marked:
a. GROUND — Green/Bare.
b. LOAD — Black (connected to lighting).
c. LINE (Hot) — Black (connected to power).
d. TRAVELER — Red.
e. NEUTRAL — White.
Match these screw terminals to the wires connected to the existing switch.
E. Disconnect the wires from the existing switch. Label wires
according to the previous terminal connection.
FIGURE 4 - WI-FI SWITCH ON LOAD SIDE
Load
Load
1
2
Traveler (Line)
H
2
Neutral (White)
5
Ground
4
Traveler (Red)
3
1
4. Copper/Green Wire - Green Screw - Ground
5. White Wire - Neutral
SPECIFICATIONS
Voltage: 120VAC, 60Hz
Incandesent: 1000W
Electronic Ballast: 5A
Standard Ballast: 1200VA
Resistive: 1800 (15A)
Motor:1/2HP
Specifications subject to change without notice
due to continuing product improvement.
WARNING — SHOCK HAZARD
3.
To change the paddle
This step is optional.
TOP
Before installation,
you may want to
change the color of the
paddle to match your
wallplate or décor.
1. Insert a small, flat-
blade screwdriver into
either groove at the
top of the paddle, and
apply gentle pressure
to remove the paddle.
2. Align the new paddle
with the bottom of
the Wi-Fi device and
press it into place.
Installation
Wire strip length:
For attachment using the enclosure's hole,: strip insulation 5/8in. (16mm)
UL specifies that the tightening torque for the screws is 12 lbf-in (14 Kgf-cm).
F. Connect the green or bare copper ground wire to the ground terminal.
I.
Connect the black wire that goes to the light to the terminal marked load.
II. Connect the black wire that comes from the electrical
service panel (hot) to the terminal marked line.
III. Connect the white wire to the neutral terminal (use a
jumper wire if needed). Often, the neutral wire can be found
in the back of the switch box connected with a wire nut.
There may be several neutral wires bound together.
Note: The traveler terminal is only used for 3-way installations.
V.
Insert switch into the switch box being careful not to pinch or crush wires.
G. Secure the switch to the box using the supplied screws.
H. Mount the wallplate. Reapply power to the circuit at fuse box
or circuit breaker and test the system.
The blue indicator light located under the ON/OFF paddle
should blink rapidly. If the blue light is not flashing on, turn off
the breaker, verify there is no power to the Wi-Fi timer, switch the
wires in the line and traveler terminals, and tighten the screws.
Installing the switch on the line side
1. Disconnect the black wire from the black terminal and the
black wire from the brass terminal from the existing switch.
2. Attach the included white jumper wire to the
black wires using the provided wire nut.
3. Connect the free end of the white jumper wire
to the black screw on your existing switch.
Your wires should now look like Figure 2.
4. Carefully replace the switch into the box ensuring
the wires are not pinched or crushed. Secure
the switch using the mounting screws.
Installing the timer on the load side
1. Remove the switch you intend to replace from the wall
and label the wires for future reference (see Figure 3).
2. Connect the load wire to the load terminal on the timer. All
terminal screws should be tightened to 12lbf-in. (14Kgf-cm).
3. Connect the line wire to the line terminal on your timer.
4. Connect the copper or green ground wire
to your timer's ground terminal.
5. Connect the traveler wire, most likely red, to
the traveler terminal on your timer.
6. Connect the neutral wire from the switch box to the
neutral terminal of the timer. There may be several
neutral wires bound together with a wire nut in
the back of the switch box. Add the neutral jumper
wire to the bundle and tighten the wire nut.
7. Install timer into wire box.
8. Turn breaker on.
9. The blue indicator light located under the ON/OFF
paddle should blink rapidly. If the blue light is not
flashing on, turn off the breaker, verify there is no
power to the Wi-Fi timer, switch the wires in the line
and traveler terminals, and tighten the screws.
10. Reinstall the Wi-Fi timer in the switch box.
11. Turn on breaker.
12. Verify the blue indicator light blinks rapidly.
