5. Commissioning, operation
- After the level sensor has been mounted, the float should be
reattached within the inside of the tank (pay attention to the
mounting position!).
- Secure the float limitation  again at the marked point.

5.4 Electrical connection

The electrical connection must only be made by qualified skilled
■
personnel.
Wire the level sensor in accordance with the connection diagram of
the electrical output (see product label). The connection terminals are
appropriately marked.
Electrical output
3-wire potentiometer
circuit
Current output signal
Voltage output signal
Seal the cable bushing  at the connection housing  (see figure in
■
chapter 5.3 „Mounting").
WIKA operating instructions models RLT

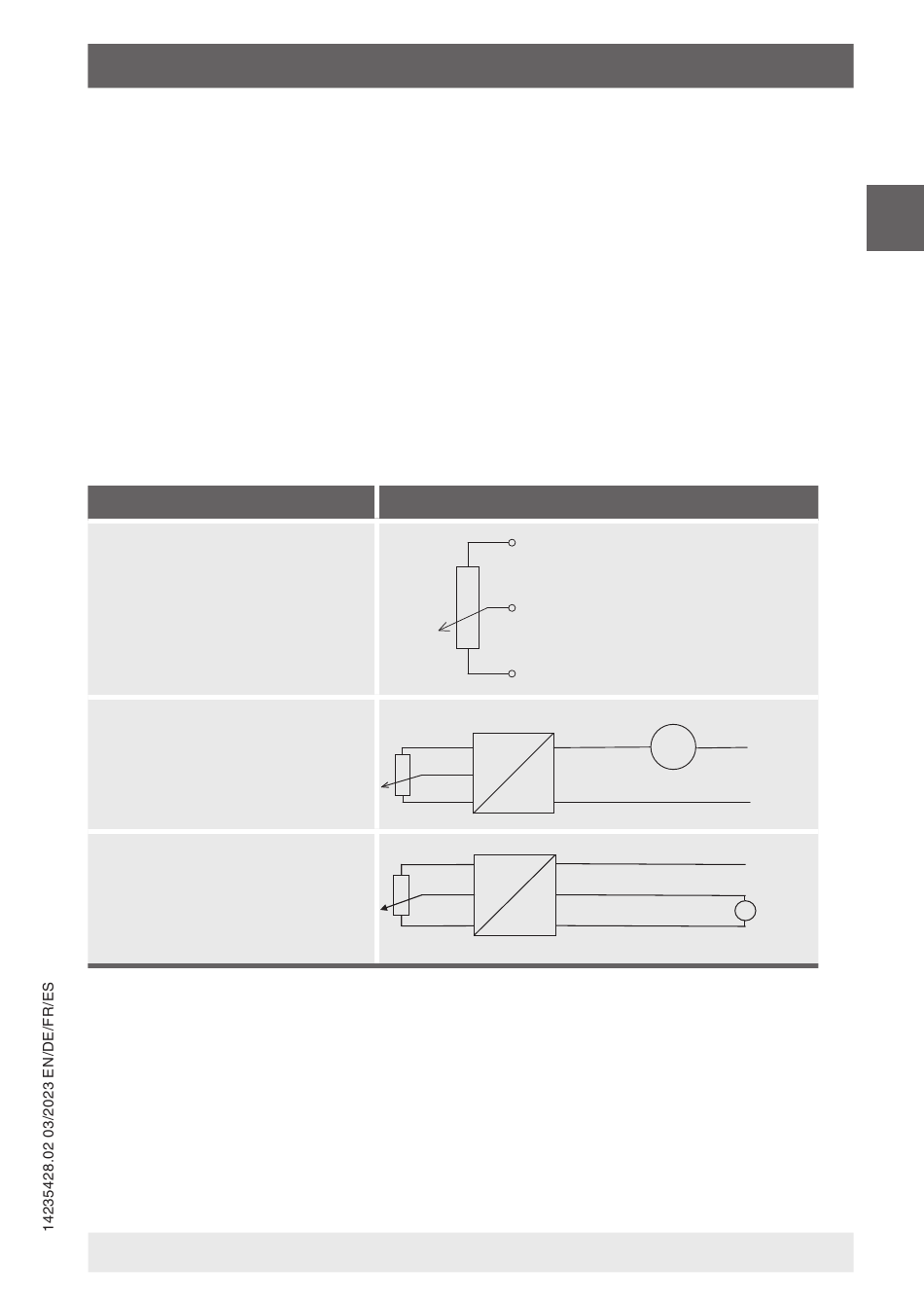

Connection diagram

GN
BN
WH
+
R
I
–
R
U
4 ... 20 mA
A
DC 12 ... 32 V
+
12...32 V DC
S
-
EN
0...10 V
U
0...5 V
