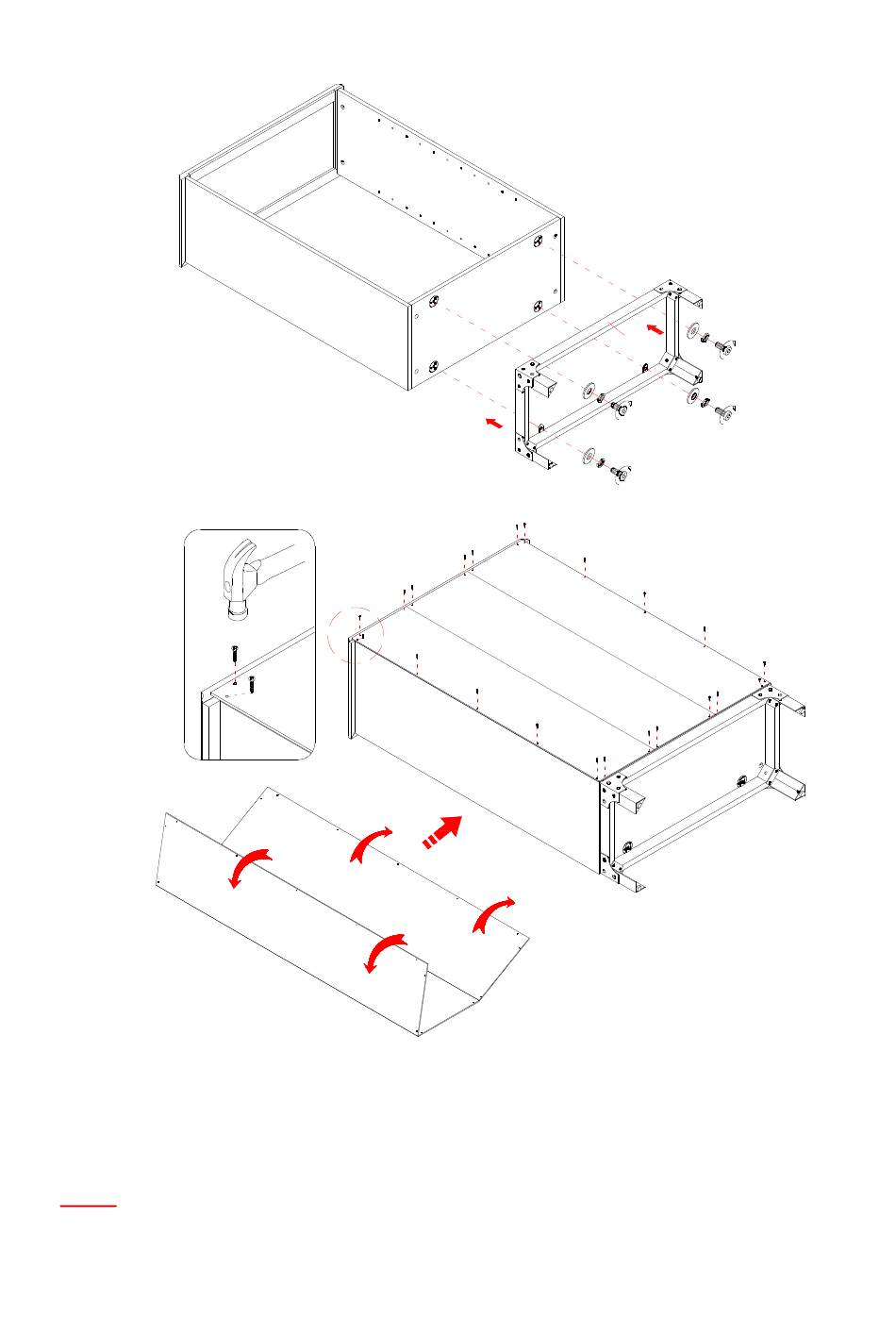

7. Attach the Legs assembly to the Bottom Panel (D) with four 5/8" Bolts (4) and four Washers (6 and 7).
8. Now, go back and tighten all Cam Locks and Screws. Make sure that all the parts are tight and there are
no gaps between the parts. This will help keep the unit square.
9. Unfold the Back Panel (E) and position it onto the assembled unit. Make sure the margins along all
edges of Back Panel are equal. Gently hammer the 19 mm Ring Shank Nails (8) through the pre-drilled
holes on the Back Panel.
NOTE: We recommend attaching back panel with the nails at the corners first.
Assembly Instructions
A
C
8
8
E
B
D
7
7
E
C
7
G
7
6
4
6
4
7
6
4
6
4
D
